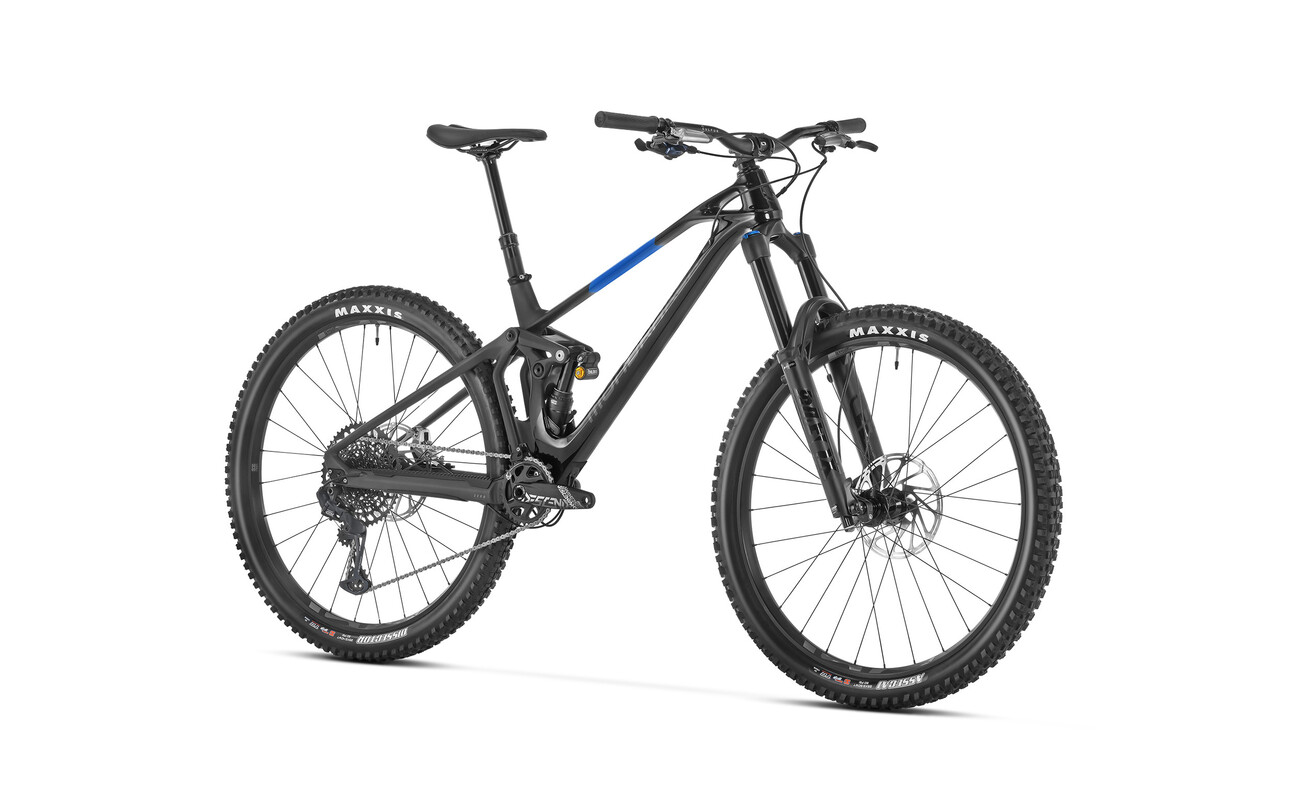

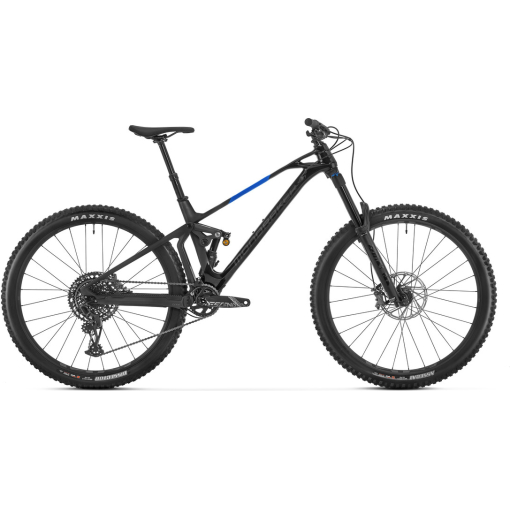

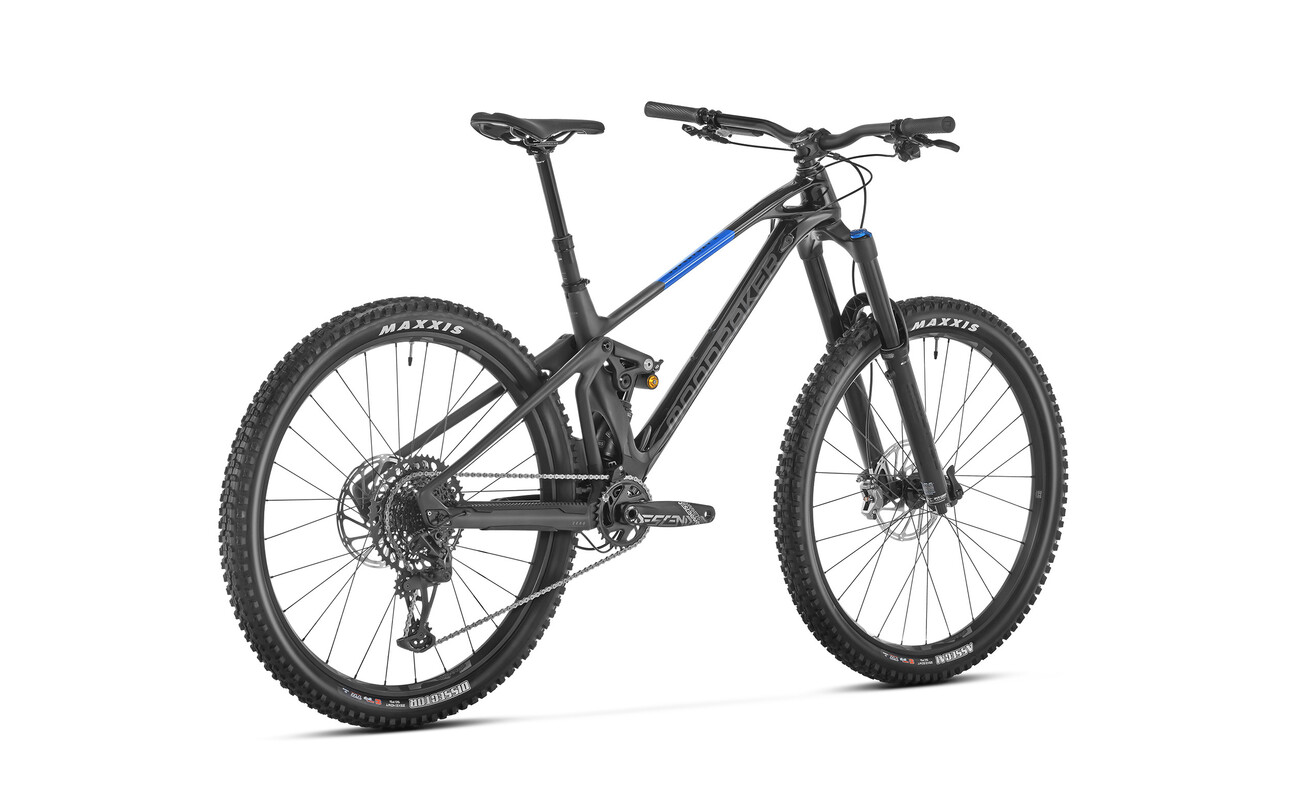

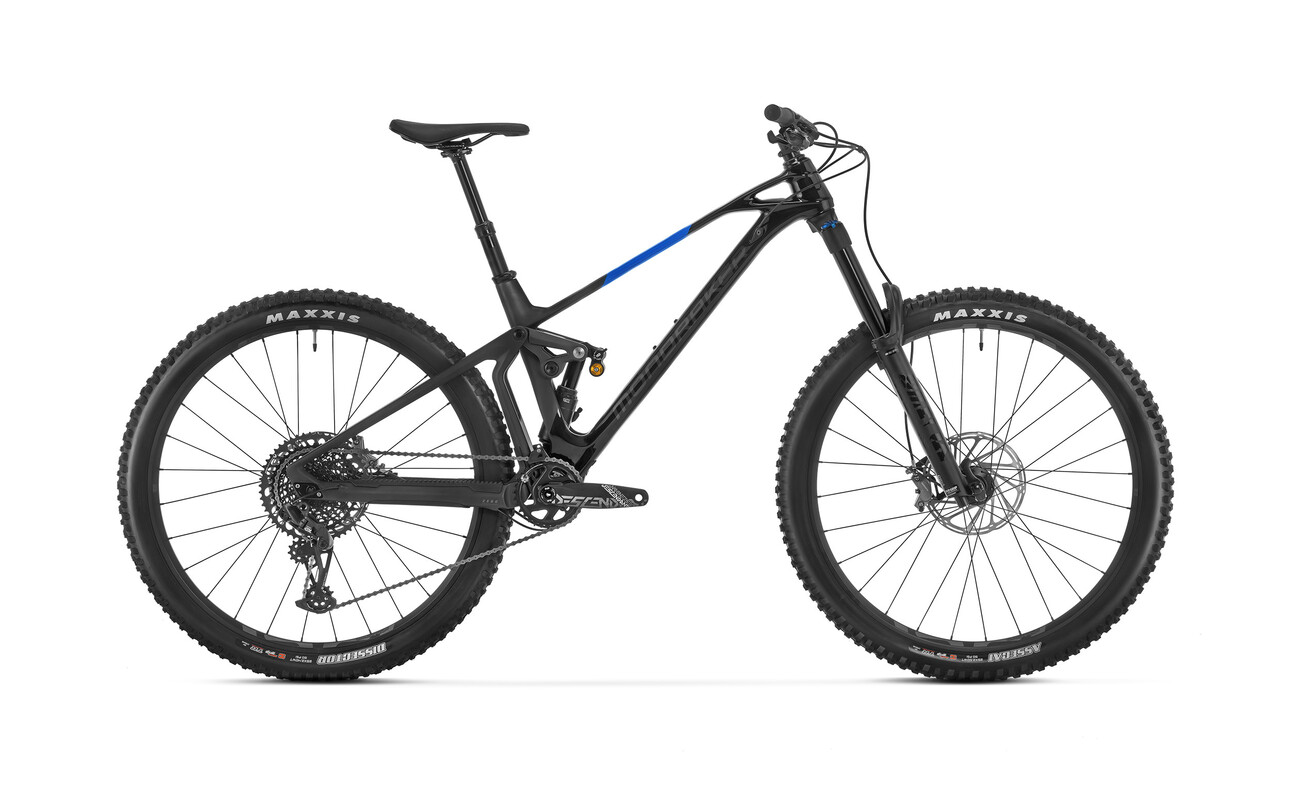

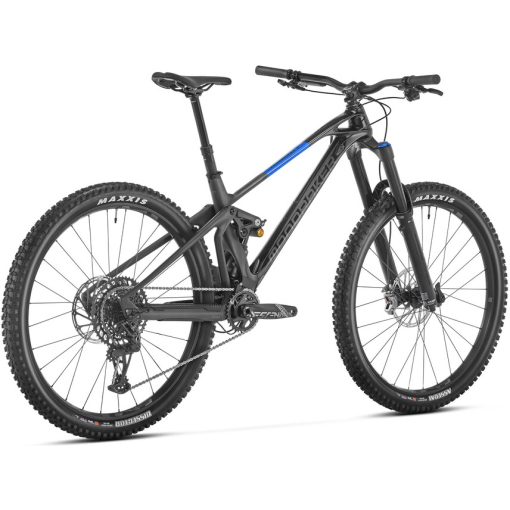

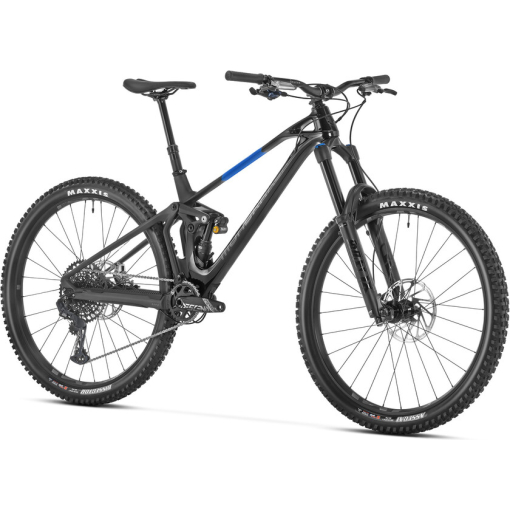

Mondraker Superfoxy Carbon R – Black

If you live for the adrenaline rushing through your veins on the downs, but need a more versatile bike than a pure DH for the ups, our Super Enduros were tailor made for you. A Mondraker Super Enduro will make you feel alive, whether at the bike park, on the wildest trials that you’ve ever dared to head down or along the sweetest technical trails you’ve ever had the joy to sample. Up like a FOXY and down like a SUMMUM, that′s what we’ve brewed into our super enduros.

Frame

SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit

sizes
Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

rear shock
Rear shock

Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

shock settings
Shock settings

C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)

fork
Fork

Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

headset
Headset

Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8×30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º

stem
Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

handlebar
Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

grips
Grips

Onoff Desert, 1lock-on, 135mm

seatpost
Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405×95-125mm, M size: 458×120-150mm, L size: 498×140-170mm, XL size: 558×170-200mm

saddle
Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

front brake
Front brake

Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

rear brake
Rear brake

Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

brake lever
Brake lever

Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

rims
Rims

e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

spokes
Spokes

e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

front hub
Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

rear hub
Rear hub

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

front tire
Front tire

Maxxis Assegai 29×2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

rear tire
Rear tire

Maxxis Dissector 29×2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

crankset
Crankset

Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5

rings
Rings

32T, CNC-machined alloy, X-SYNC 2

bottom bracket
Bottom bracket

Sram DUB BSA, sealed bearings, 73mm, superboost

chain
Chain

Sram NX Eagle, 12s, Powerlock

rear derrailleur
Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

shift levers
Shift levers

Sram Trigger GX Eagle, 12s, X-Actuation 1:1

casette
Casette

Sram XG-1275, 10-52T, 12s

derailleur hanger
Derailleur hanger

Mondraker M071

others
Others

*Optional geometry kit: 0º headset cups and chainstay adaptor for 450mm CS length

weight
Weight

16,1 kg

Painorajoitus – Tämän pyörän enimmäispainorajoitus (pyörän, ajajan ja kuorman yhteispaino) on 120 kg.
