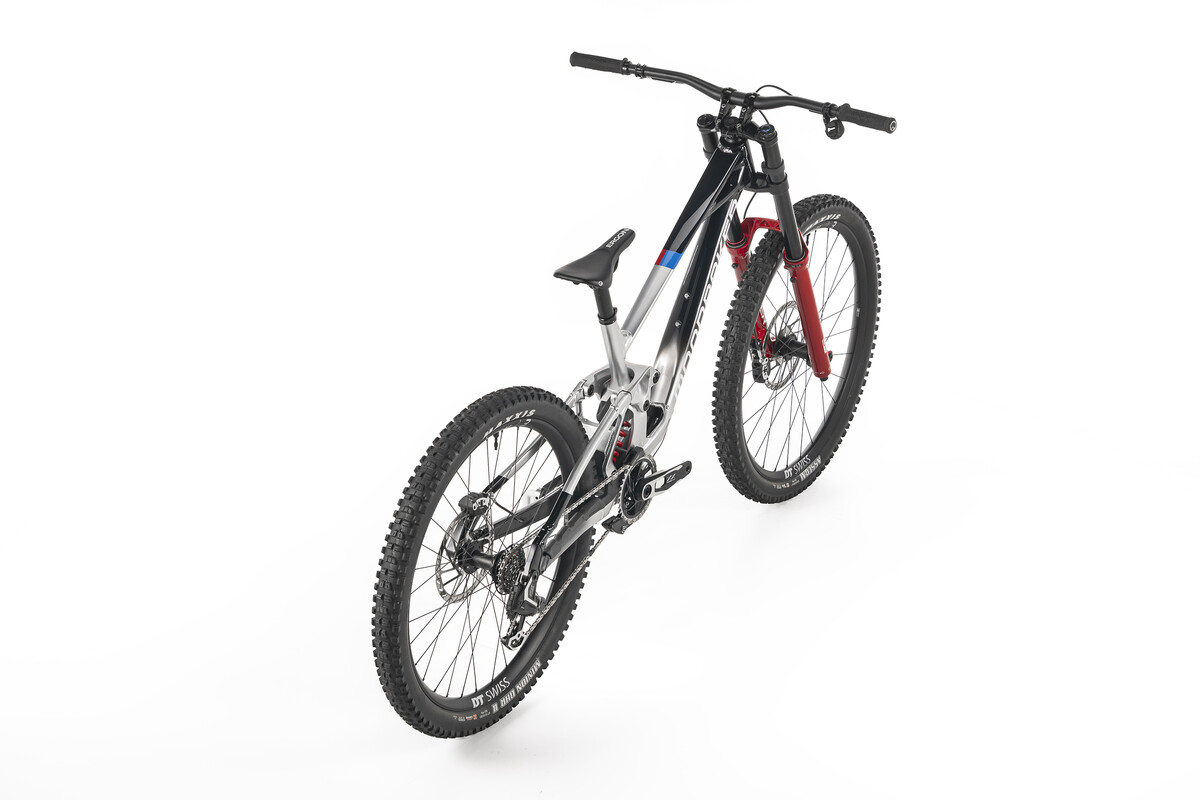

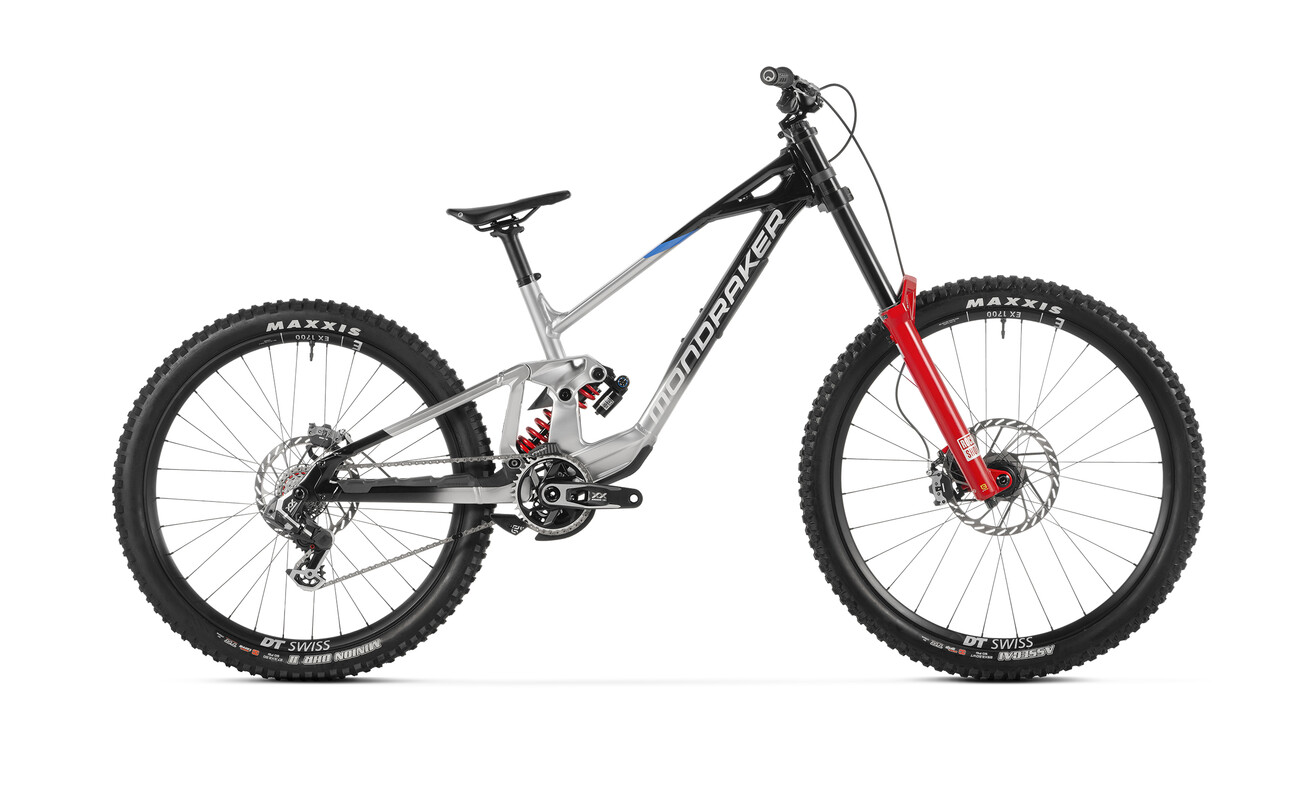

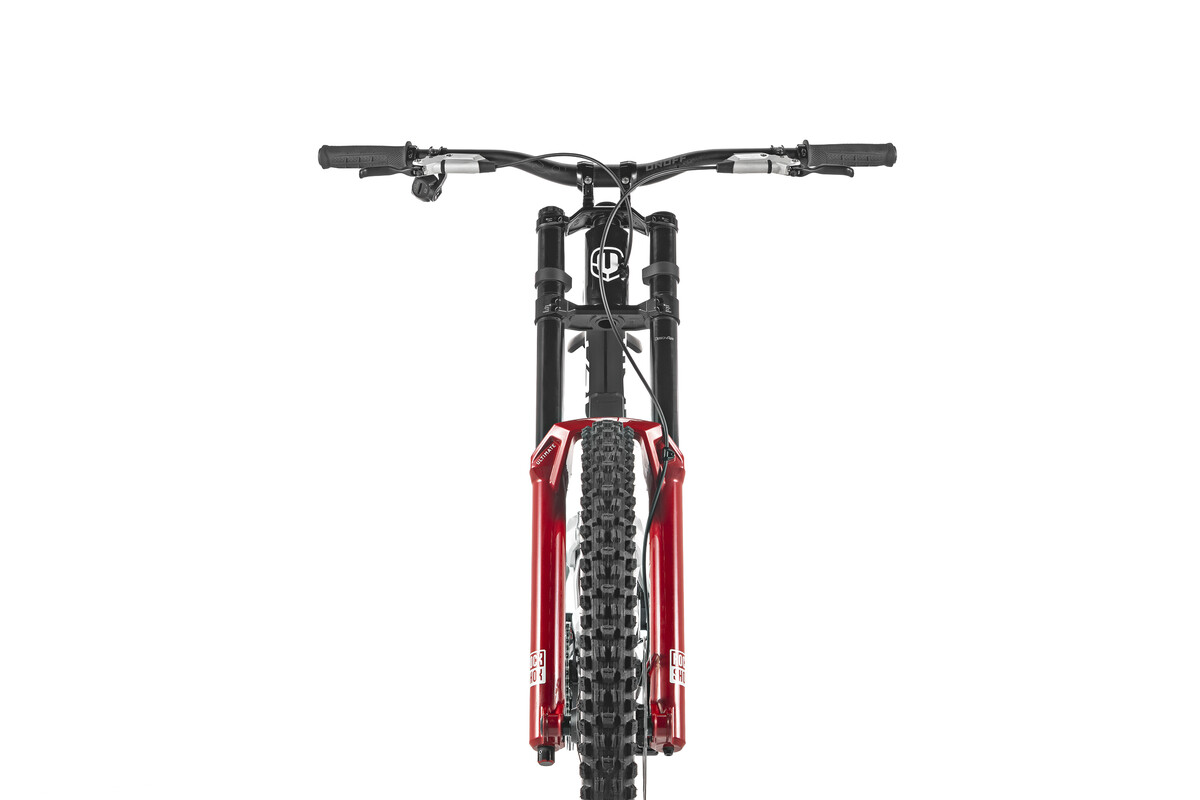

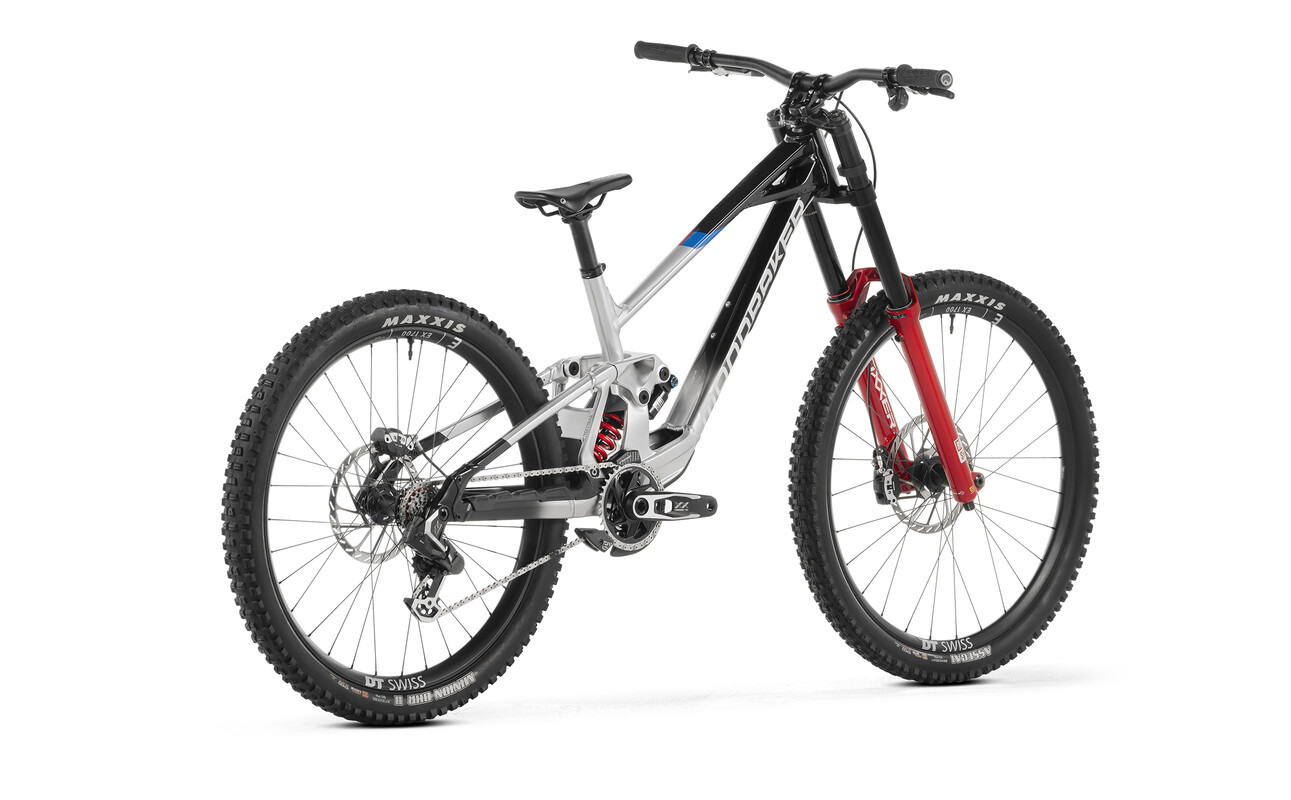

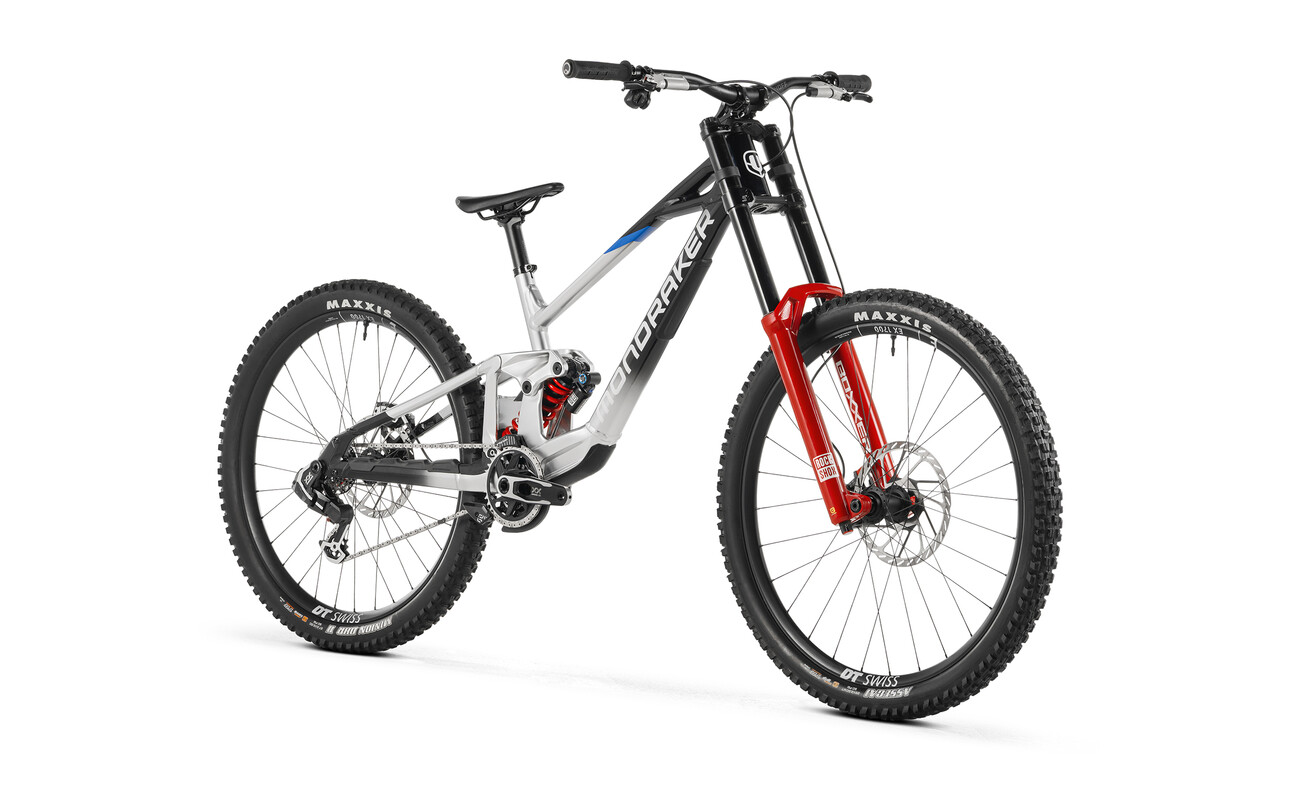

Mondraker Summum RR Mullet

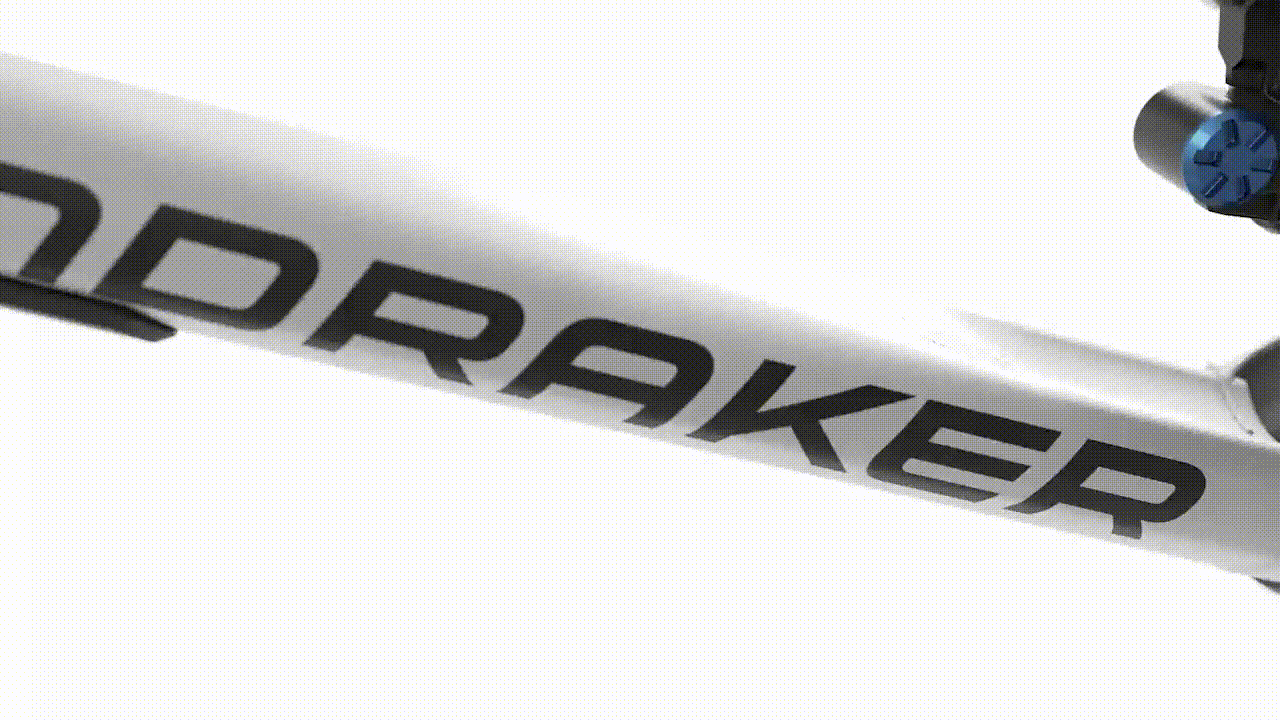

Frame: Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05.

Sizes: M / L / XL MX.

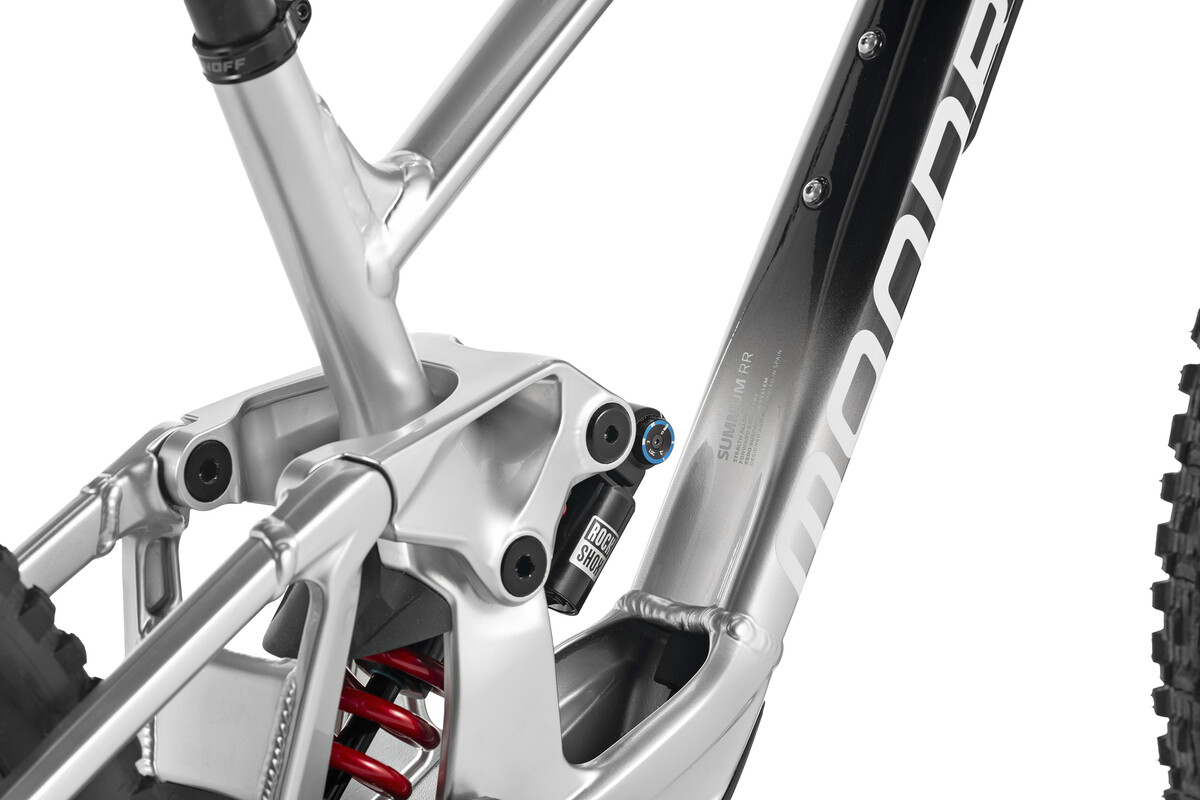

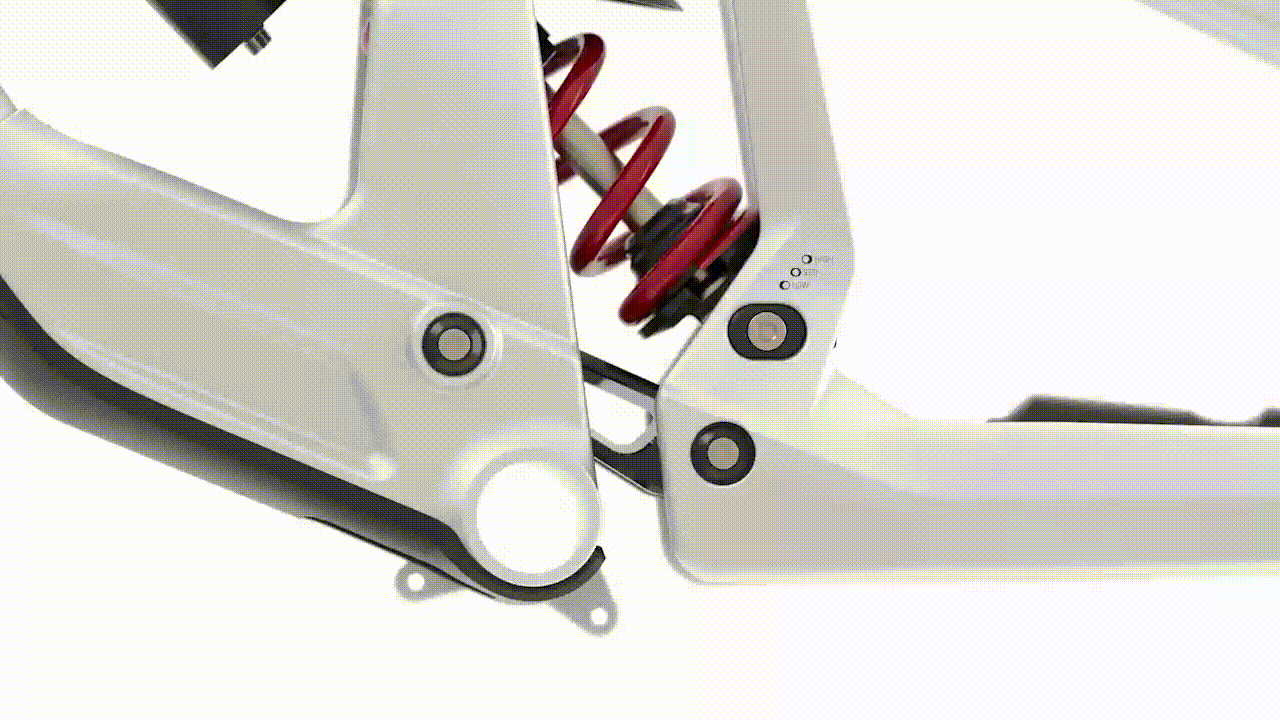

Rear Shock: Rock Shox Vivid Coil Ultimate, 225x75mm, Linear rebound, Medium compression, spring preload. Trunnion top mount, 30x8mm bottom bushings.

Shock Settings: Medium compression, linear rebound. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs.

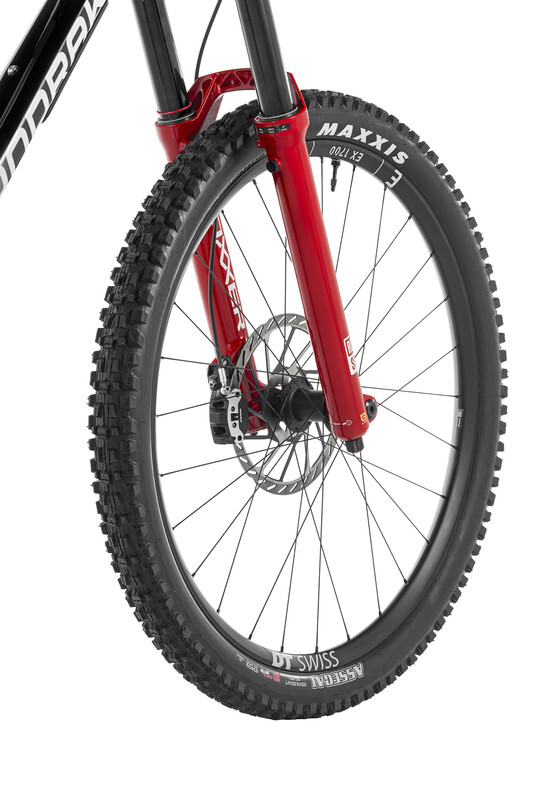

Fork: Rockshox Boxxer Ultimate 29, Charger 3.2 RC2, 200mm, DebonAir+, 1-1/8” steerer tube, Boost 20x110mm axle, offset 52mm. Settings: low-speed compression, rebound, air preload.

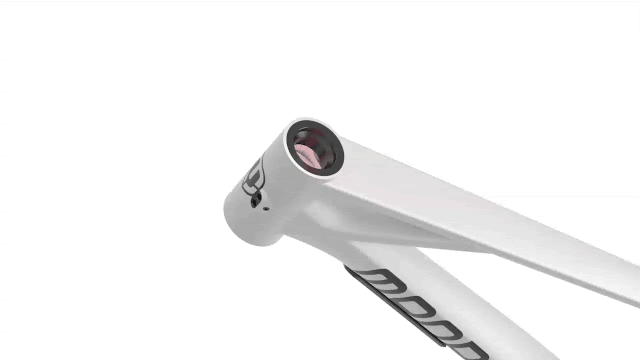

Headset: Onoff ZS56/ZS56, 1-1/8″, 1-1/8″ steerer tube, 42x30x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 62mm.

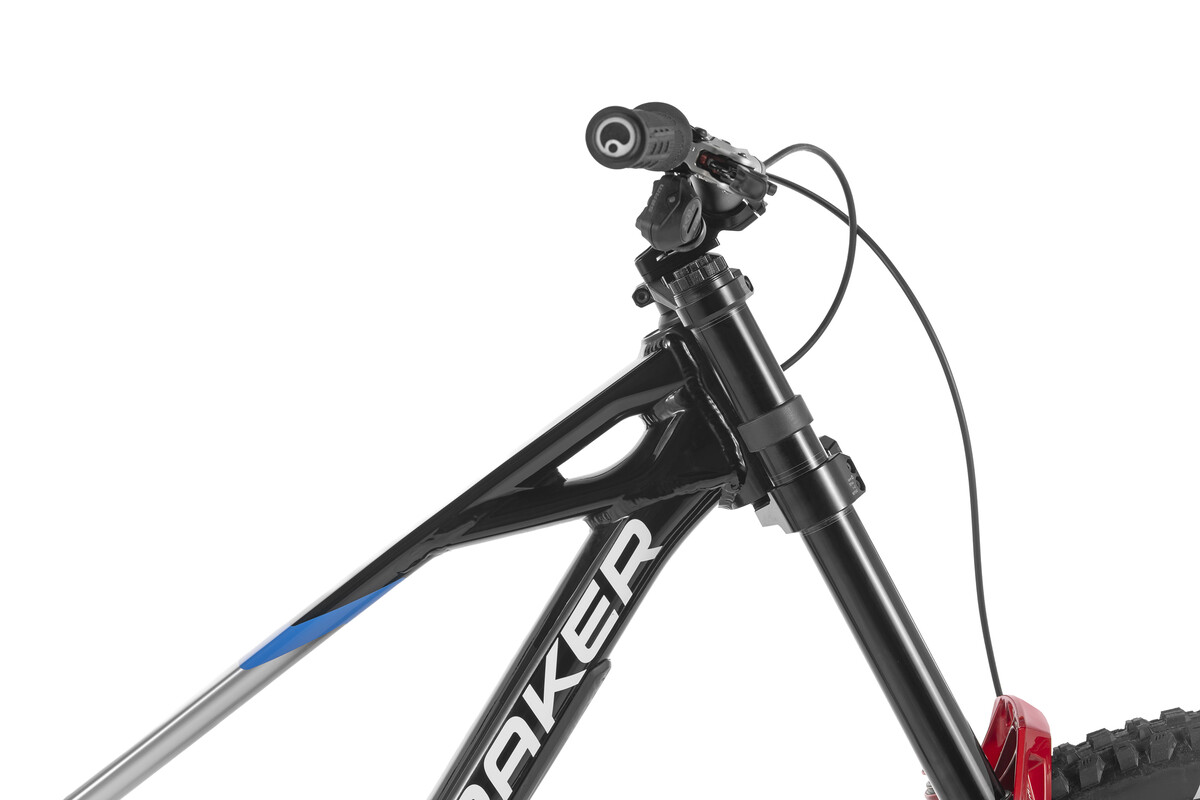

Stem: Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer.

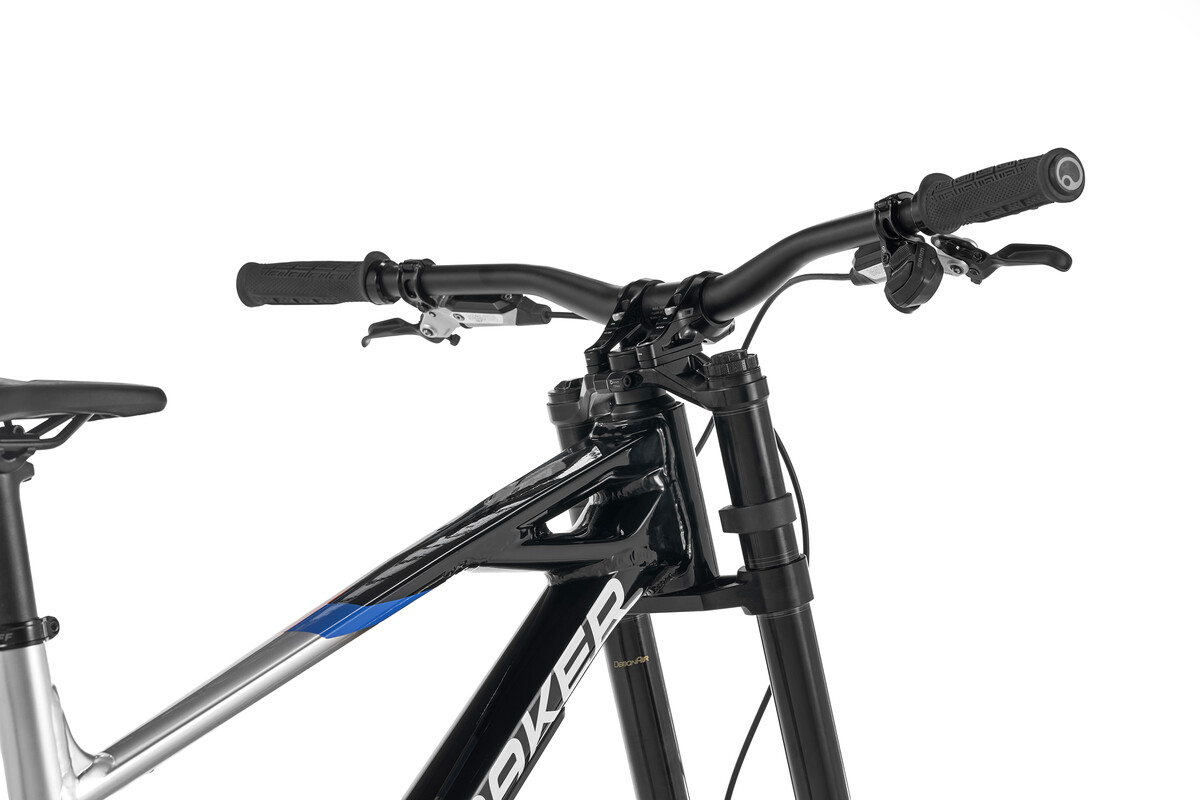

Handlebar: Onoff S6 1.0 7075 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.

Seatpost: Onoff S3 DH Alloy, diameter 31.6mm, length 300mm.

Saddle: Ergon SM10 DH Black.

Front Brake: Sram Maven Ultimate, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.

Rear Brake: Sram Maven Ultimate, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads.

Brake Lever: Sram Maven Ultimate, SwingLink and lever pivot bearings, tools-free reach adjust.

Rims: DT Swiss EX1700 Classic 29, 30mm internal width, welded aluminum, tubeless ready, 28 spokes front, 32 spokes rear.

Spokes: DT Competition, straightpull.

Front Hub: DT 350, Boost 15x110mm, IS 6 bolts.

Rear Hub: DT 350 Classic with 72T Ratchet DEG System, Boost 12x148mm, IS 6 bolts, XD freehub.

Front Tire: Maxxis Assegai 29×2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead.

Rear Tire: Maxxis Minion DHR II 27.5×2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead.

Crankset: Sram XX DH T-Type, DUB axle, Direct mount chain ring, 165mm CL 56.5.

Rings: 36T, Aluminium T-Type.

Bottom Bracket: Sram DUB BSA, sealed bearings, 83mm.

Chain: Sram X0 Eagle T-Type, Powerlock.

Front Derailleur: E.13 Vario Compact Upper Slider, Alloy backplate, DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider.

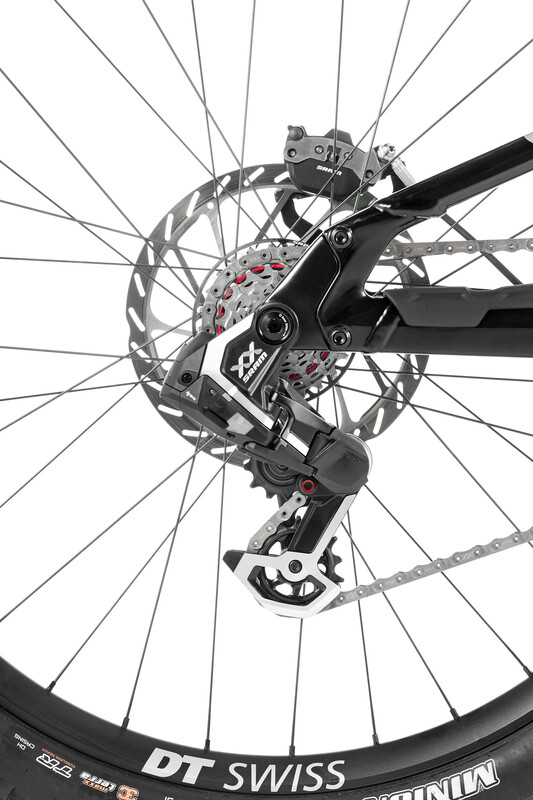

Rear Derailleur: Sram XX DH AXS, T-type, 7s.

Shift Levers: Sram Eagle AXS Pod.

Cassette: Sram XS 797 10-24T, 7s.

Derailleur Hanger: Sram UDH.

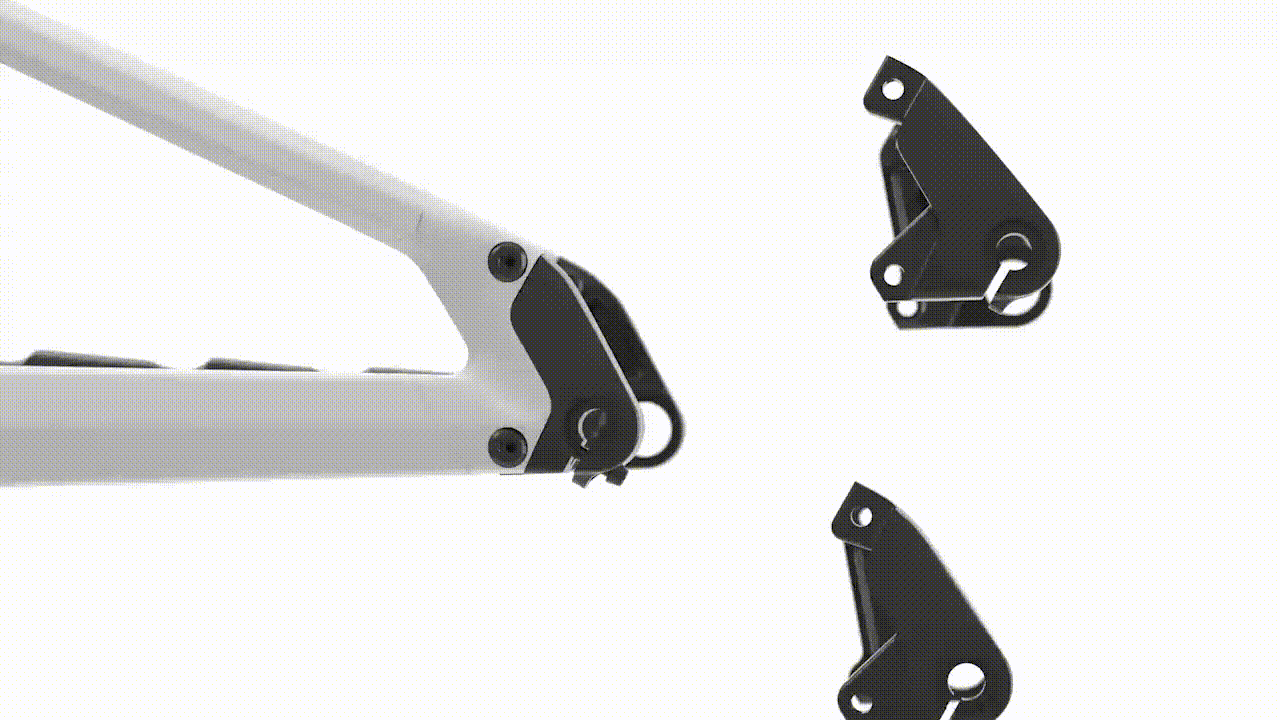

Others: Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout.

Weight: 18,7 kg.
