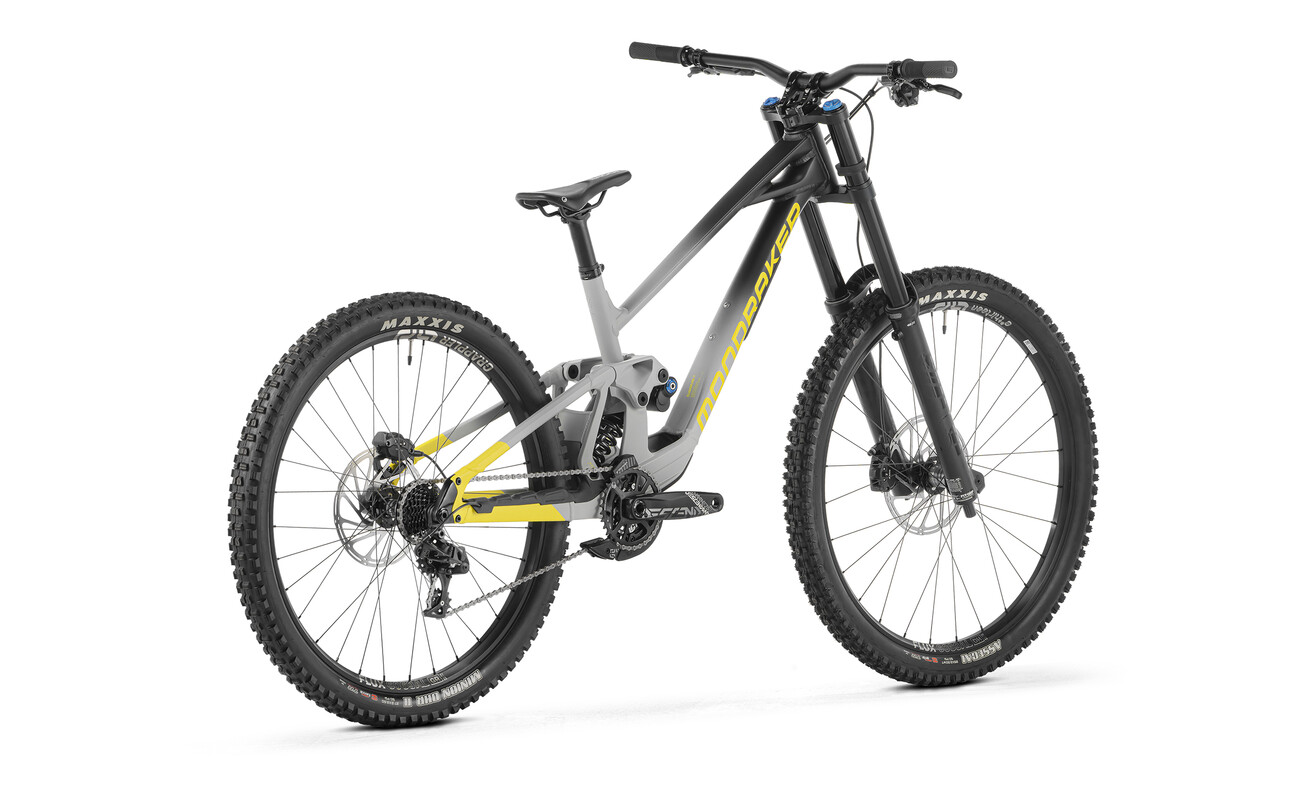

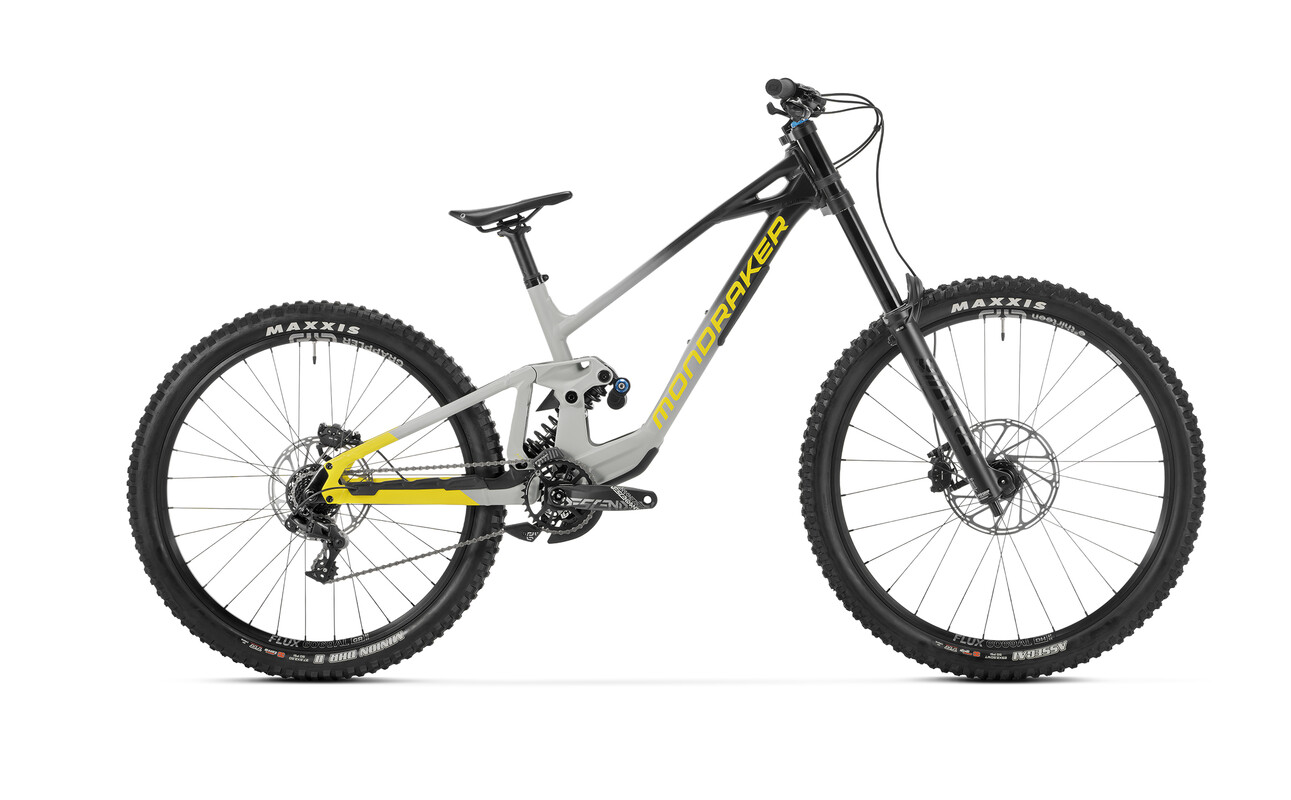

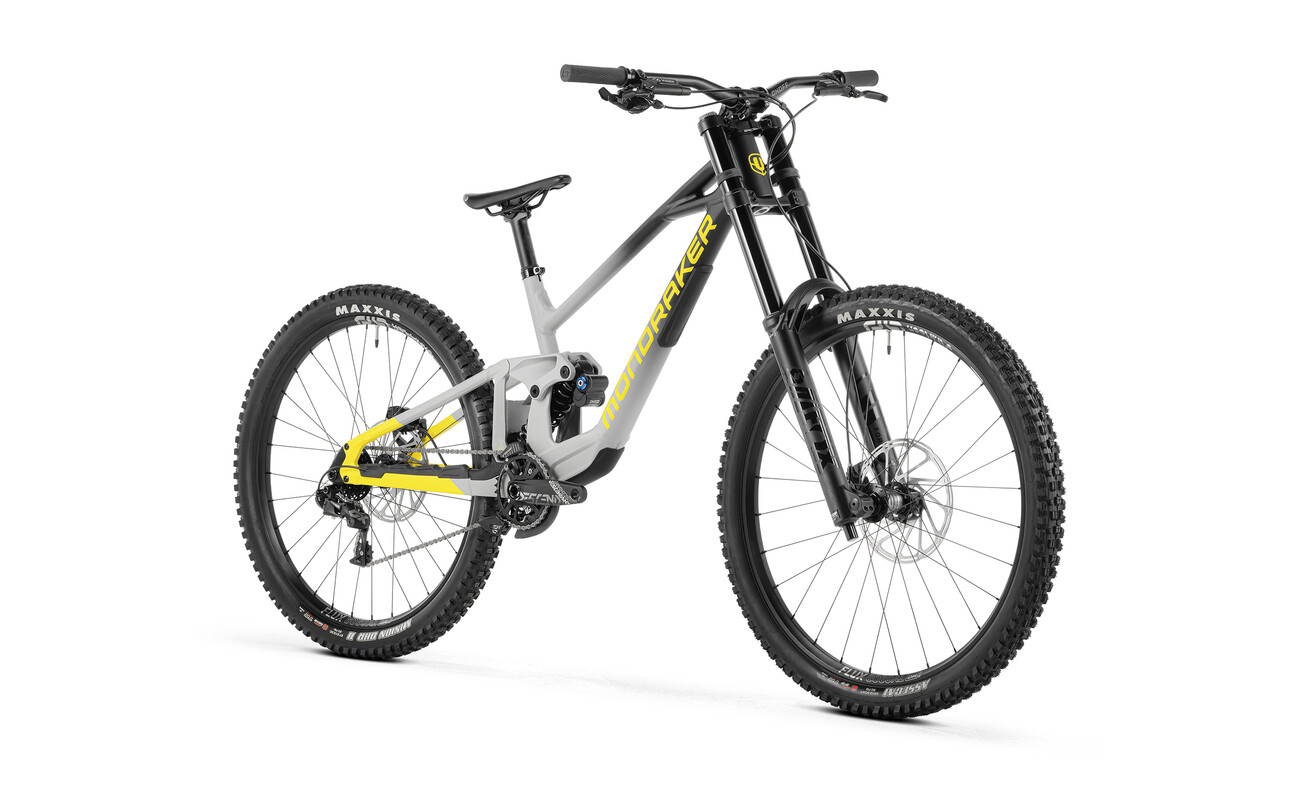

Mondraker Summum R Mullet

The Summum embodies our passion for technology, competition and downhill racing. It is no coincidence that Mondraker’s first ever product was a downhill bike… and the Summum has become the most successful race bike at Mondraker and a true benchmark.

This new model features all-new updated Zero Suspension System kinematics, delivering better performance with more mid-stroke support – where you need it the most- this translates into a faster bike on track, improved handling and enhanced suspension suppleness off the top.

Longer reach, slacker head tube angles…directly inherited from World Cup racing. Key refinements that you will benefit from when putting the bike to the test.

27 ADJUSTMENTS FOR THE PERFECT SET-UP
As standard, the new Summum already offers the most dedicated and race-ready geometry, but for those skilled riders who prefer to further customise their geometry or adapt their bike to different courses and preferences, you’ll find up to 27 possible configurations available thanks to adjustable headset cups, a lower shock-mount flip chip, and adjustable rear dropouts.

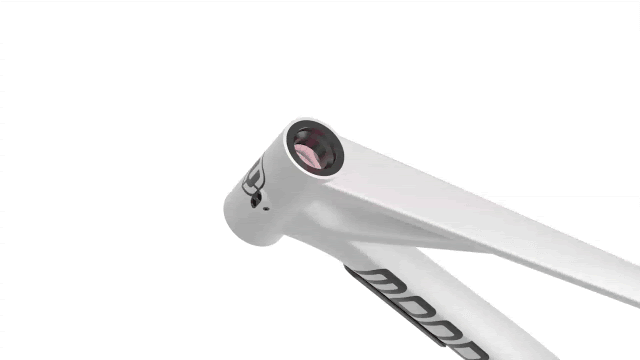

1. Headset-Reach adjust with three positions, standard and
+/-5mm.

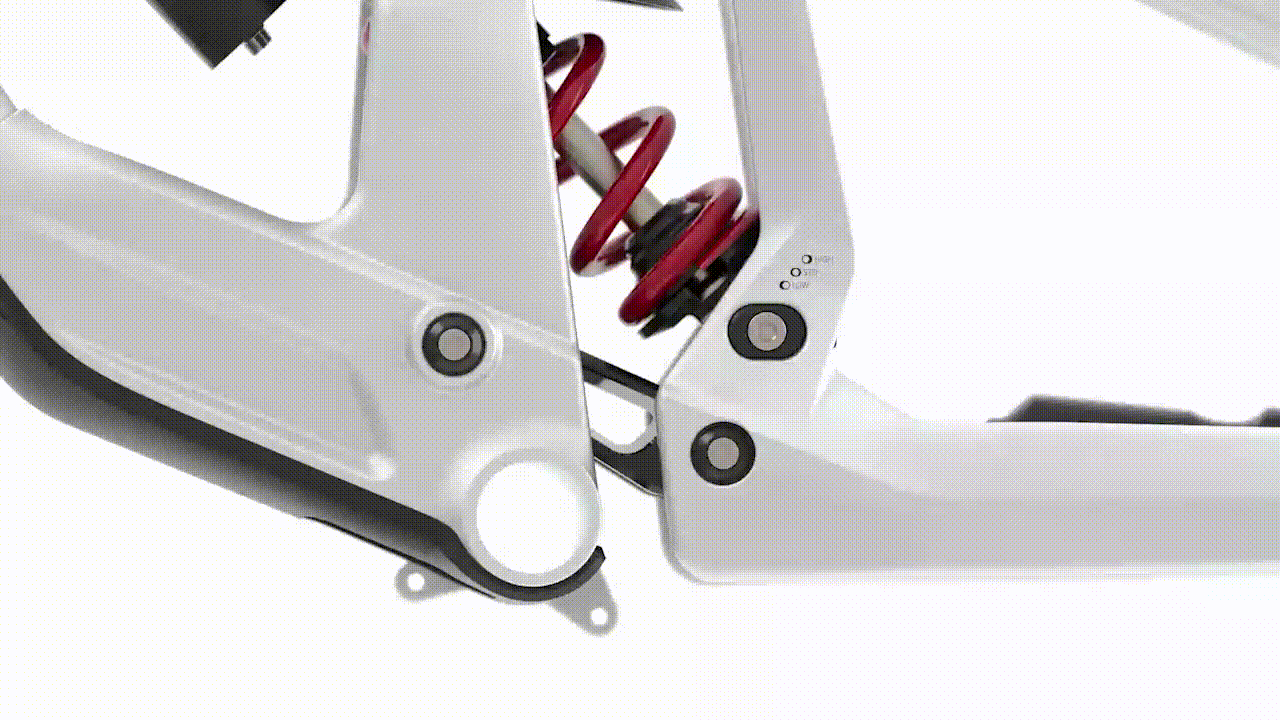

2. Lower shock-mount flip chip to adjust bottom bracket height
+/-5mm, and angles +/-0.35°.

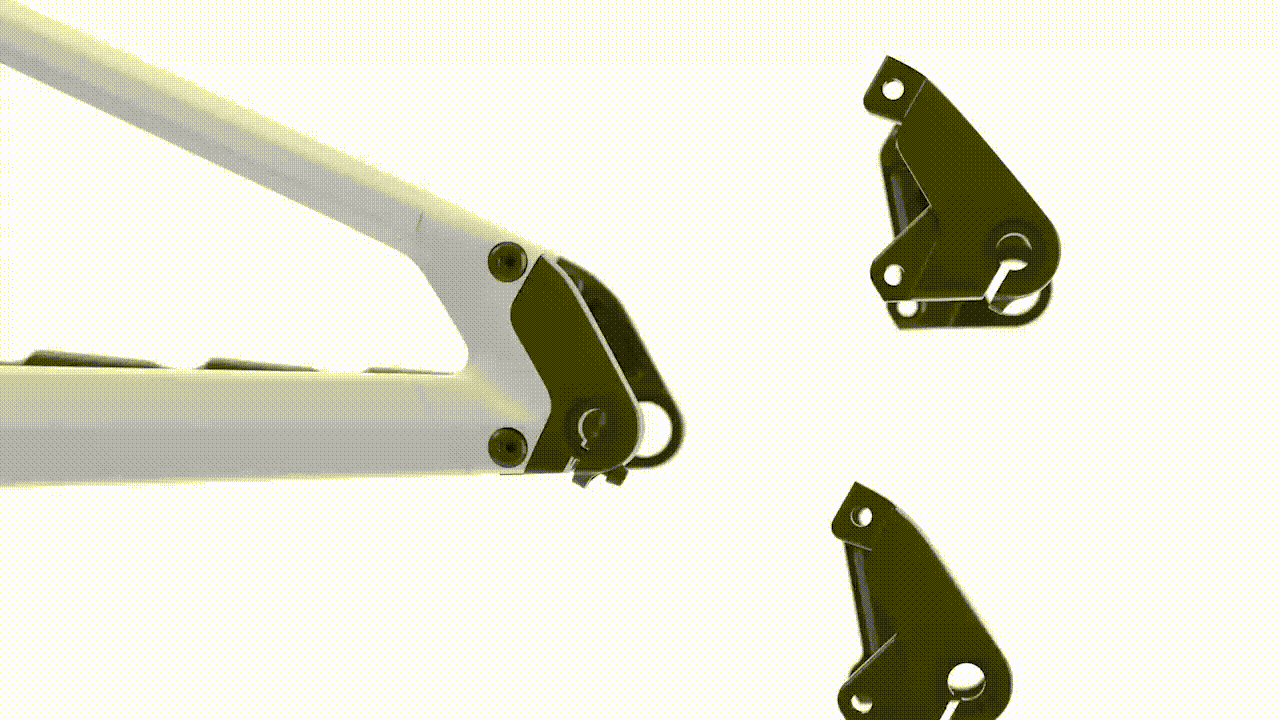

3. Adjustable rear dropouts +/-5mm (450mm or 460mm
options) from 455mm standard chainstay length.

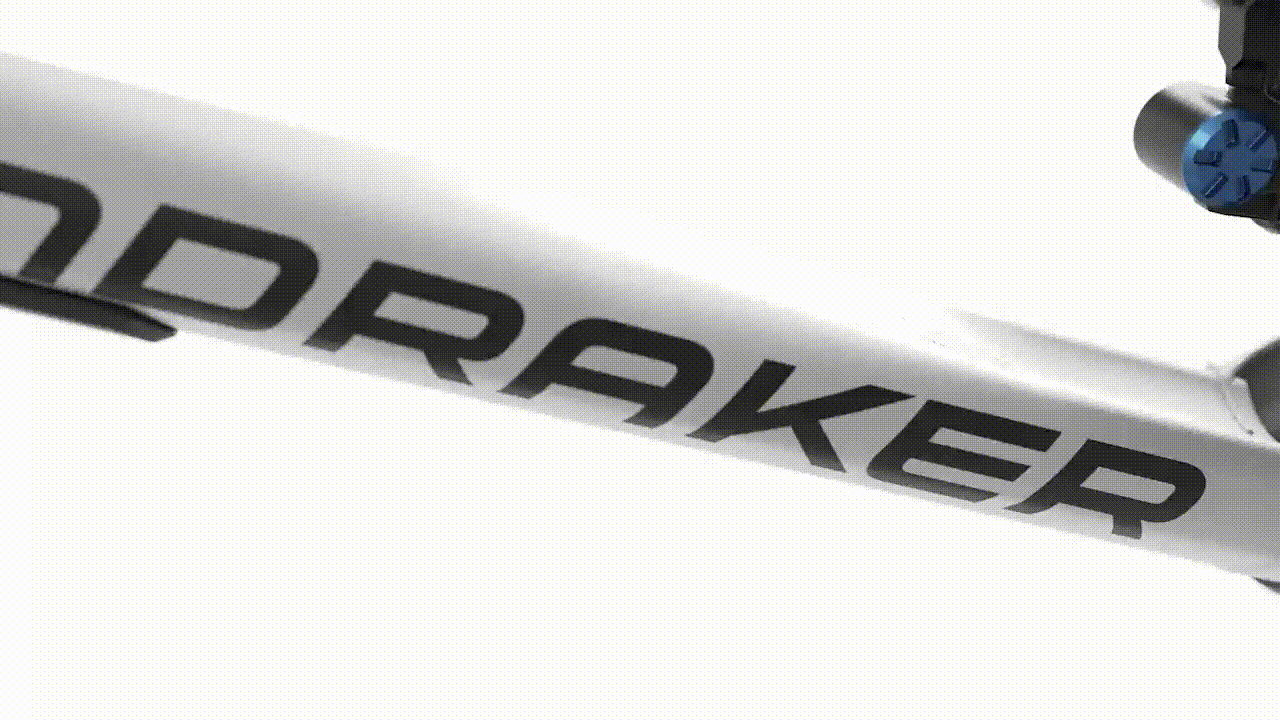

Frame: Summum MX 601 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit

Sizes: M / L / XL MX

Rear Shock: Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock Settings: CL80 compression, RL70 rebound, Rezi B80, Bleed 0.5, VVCM. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs

Fork: Fox 40 29 Float GRIP Performance, 203mm, air spring, 1-1/8″ steerer tube, 20x110mm axle, offset 52mm. Settings: 3-pos compression dial, air preload

Headset: Onoff ZS56/ZS56, 1-1/8″, 1-1/8″ steerer tube, 42x30x7x45°x45° ACB sealed bearings, geometry kit cups, external diameter 62mm

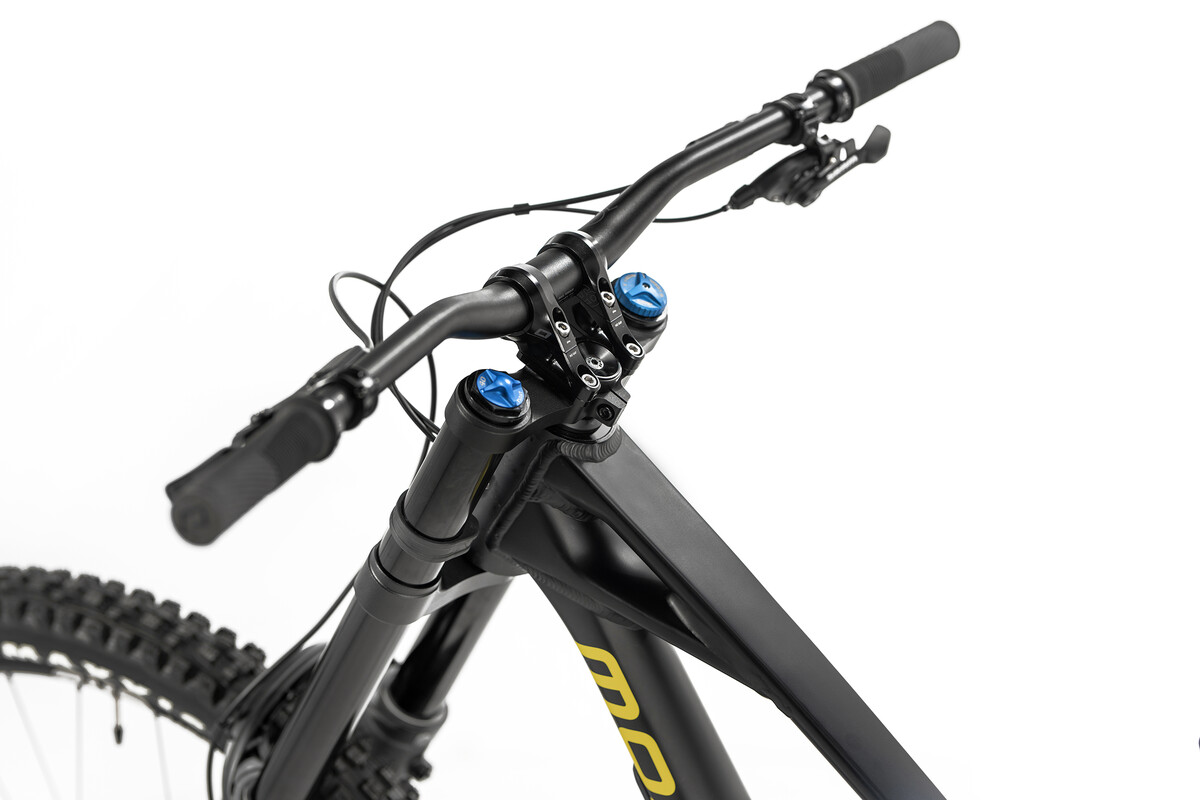

Stem: Onoff S9 DH CNC Integrated, 45–50mm adjustable length, 10mm rise, 31.8mm bar bore, 7075 alloy, 2x6mm spacer

Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8° backsweep, 5° upsweep, 31.8mm bar bore. L and XL size: 38mm rise

Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: thicker size

Seatpost: Onoff S3 DH Alloy, diameter 31.6mm, length 300mm

Saddle: Ergon SM10 DH Black

Front Brake: Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear Brake: Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake Lever: Sram Maven Base, SwingLink and lever pivot bushings, tools-free reach adjust

Rims: e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes: e*thirteen Sapim D-light / Brass

Front Hub: e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear Hub: e*thirteen Superboost 12x157mm, Sidekick, 12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

Front Tire: Maxxis Assegai 29×2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60xTPI, folding bead

Rear Tire: Maxxis Minion DHR II 27.5×2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead

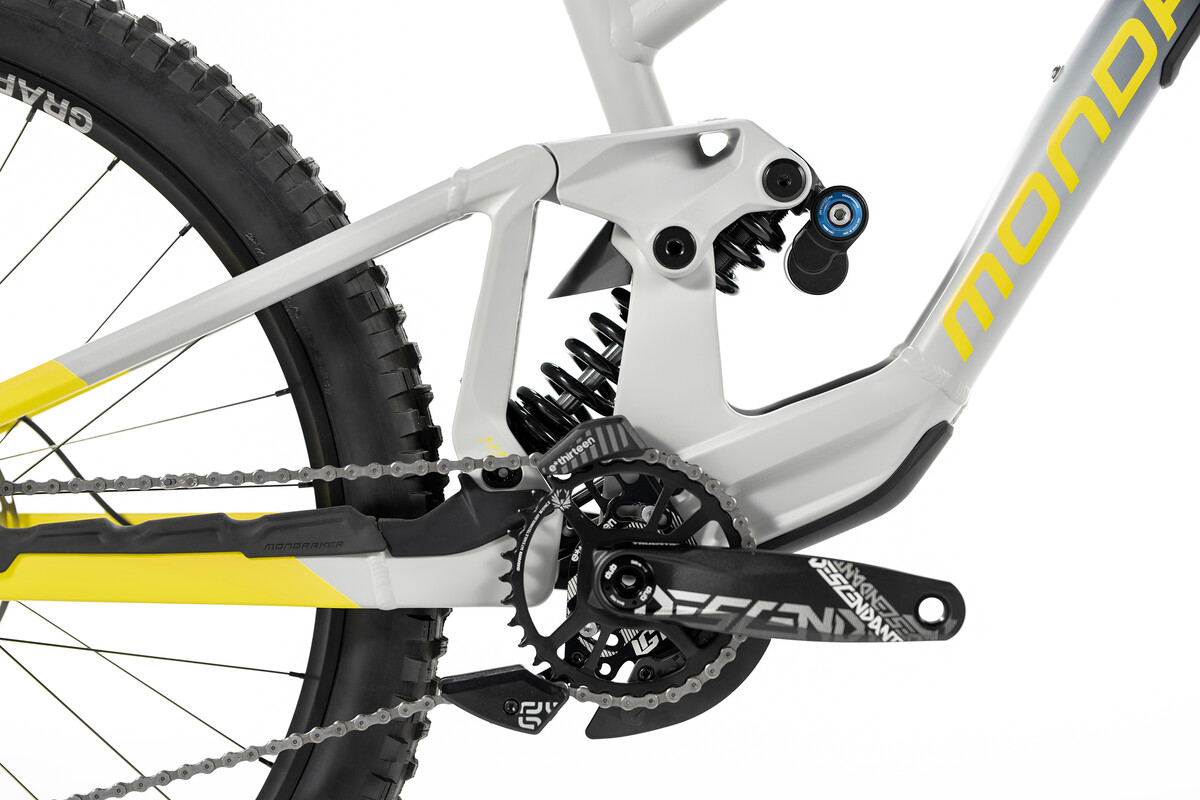

Crankset: Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56/5

Rings: 36T, aluminum, X-SYNC

Bottom Bracket: Sram DUB BSA, sealed bearings, 83mm

Chain: Sram PC1110 11s, Powerlock

Front Derailleur: E.13 LG1+ Compact Upper Slider, Alloy backplate, DMB (Direct mount Bashguard) Lower Slider 36–38T, ISCG 05 adjustable upper slider

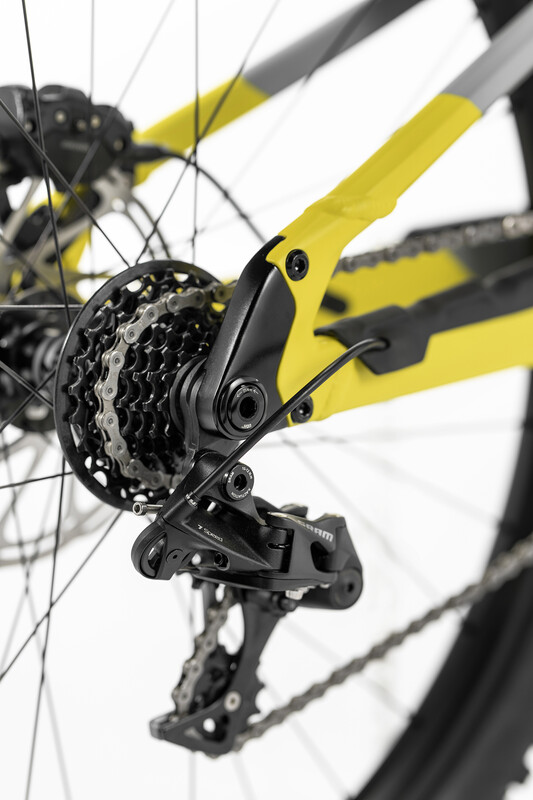

Rear Derailleur: Sram GX DH, 7s, medium cage

Shift Levers: Sram trigger GX DH 7s, X-actuation 1:1

Cassette: Sram PG 720 11–25T, 7s

Derailleur Hanger: Sram UDH

Others: Optional Geometry kit included: +-5mm headset cups, lower shock mount flip chip, +5mm dropout, -5mm dropout

Weight: 18,9 kg
