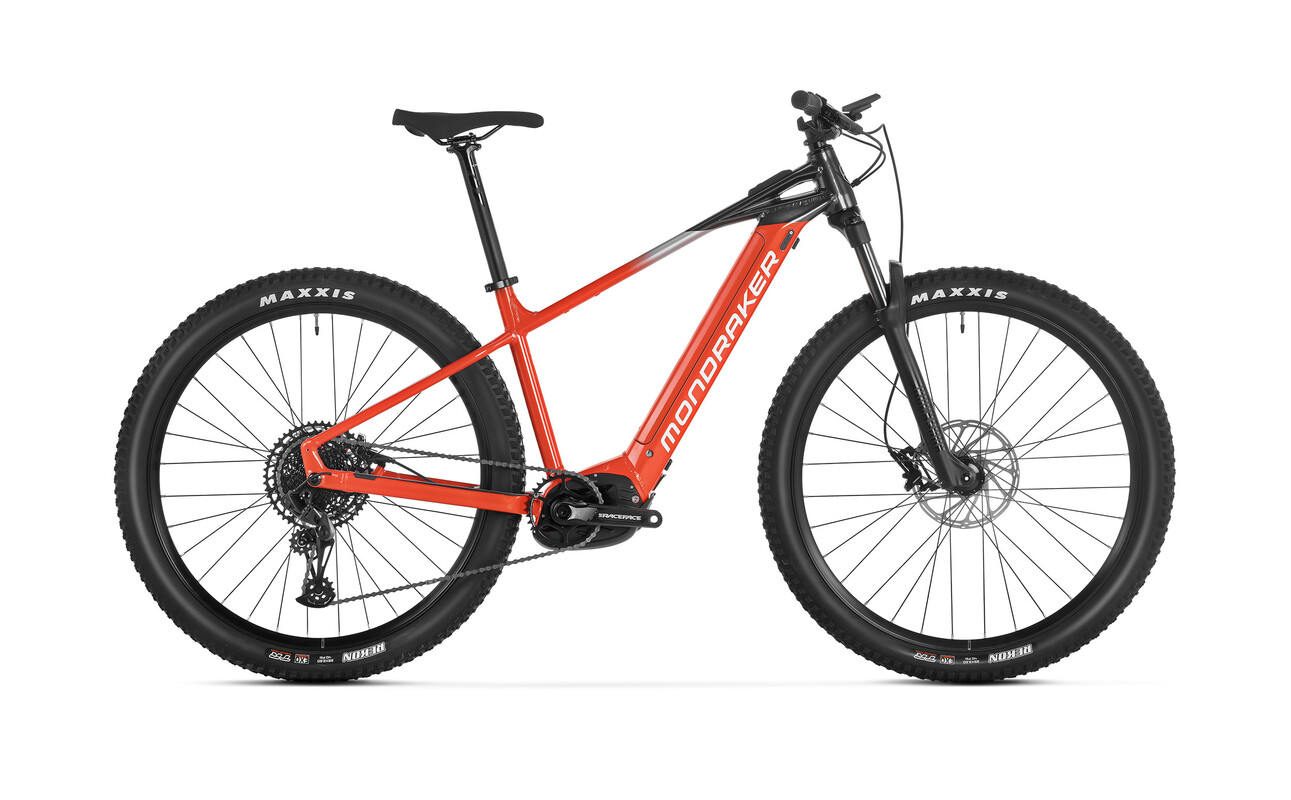

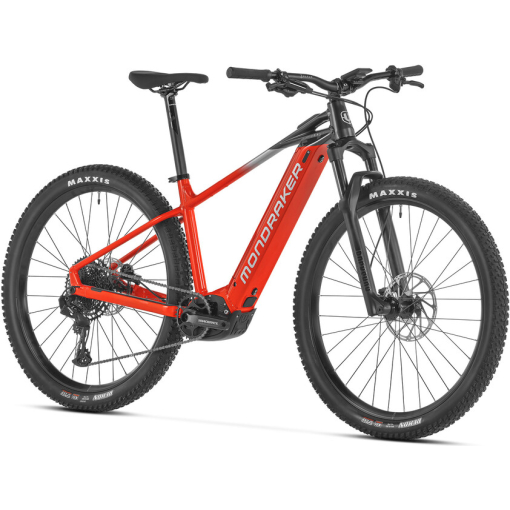

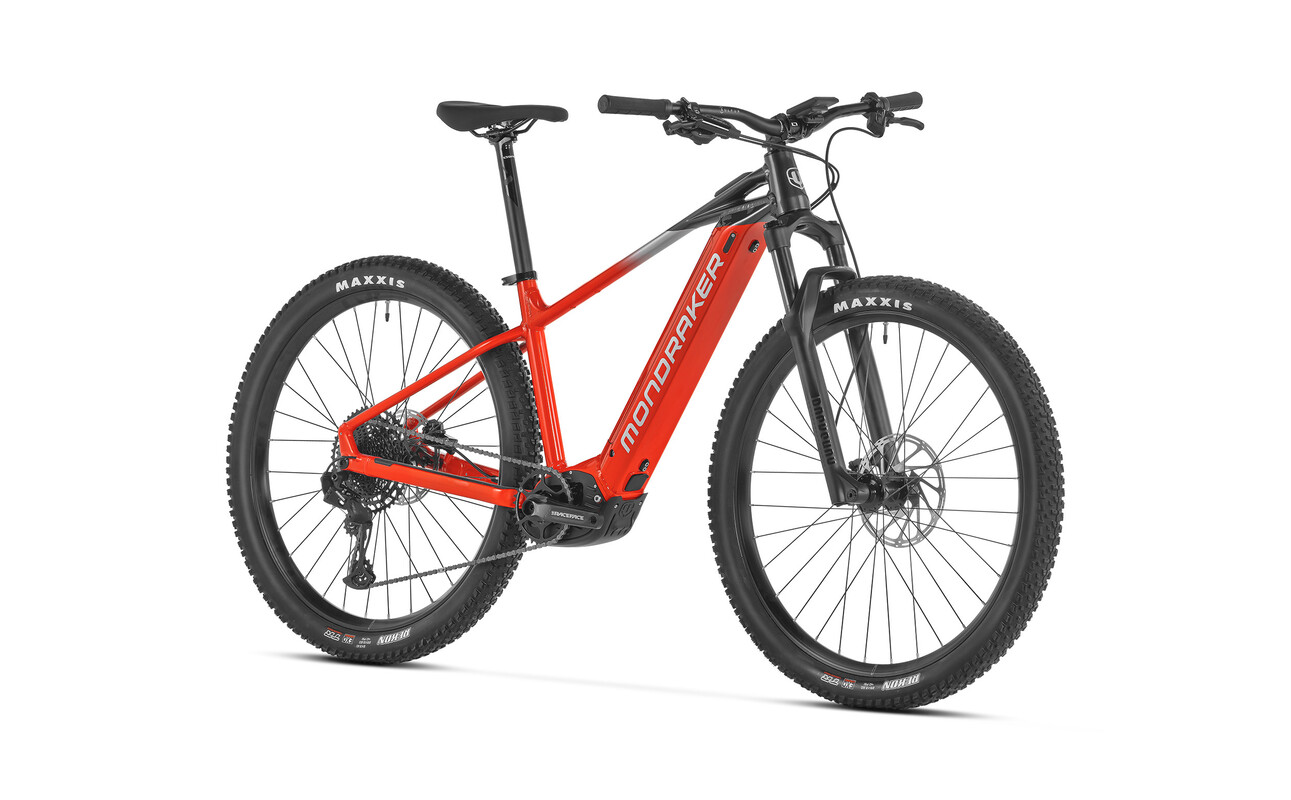

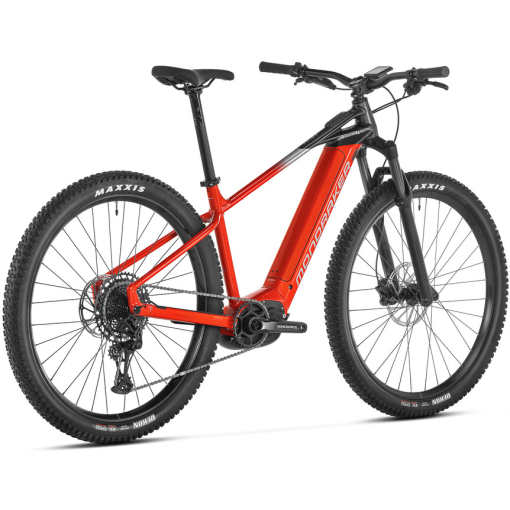

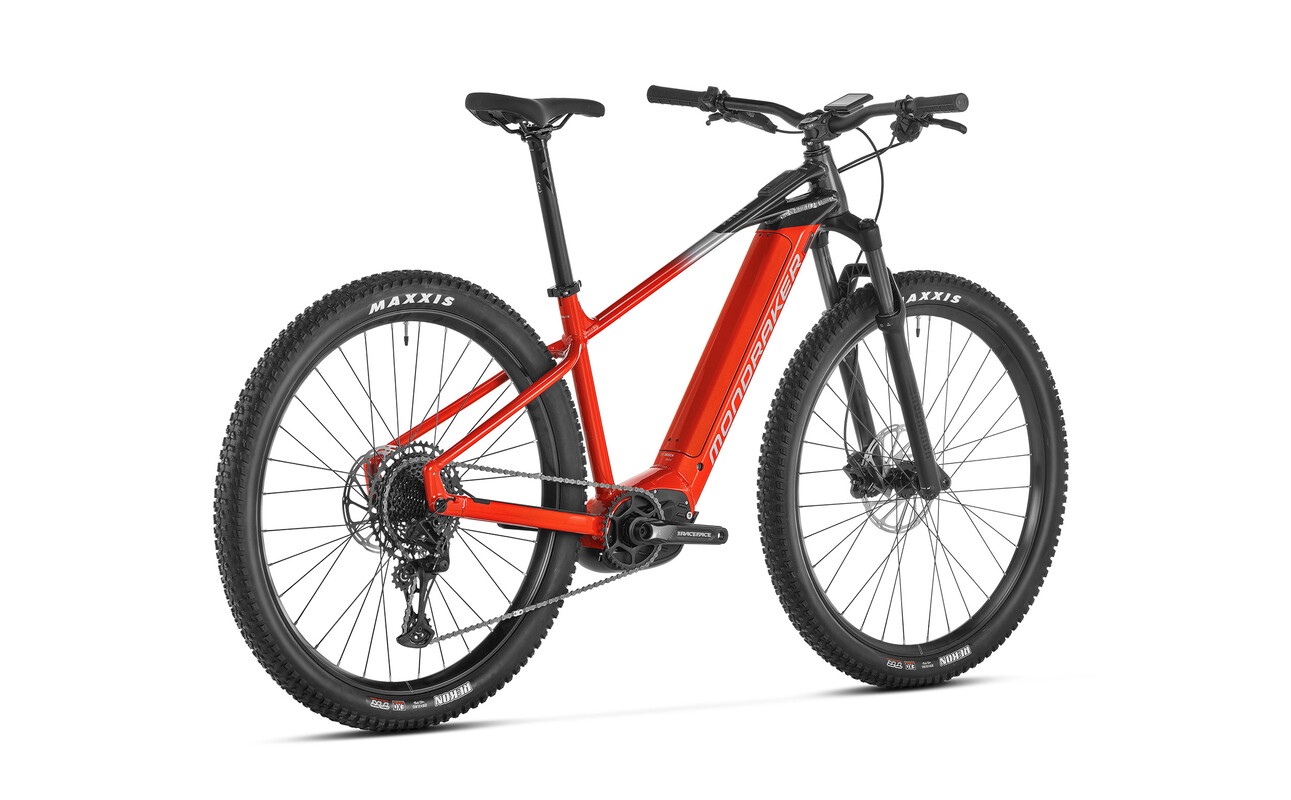

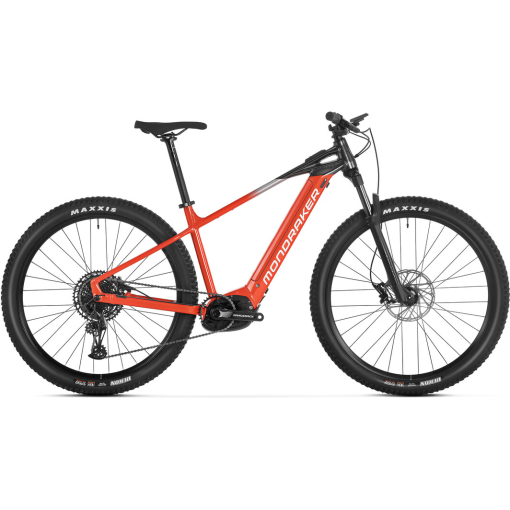

Mondraker Prime – Red

Riding a bike means much more than just doing sports. Bikes equal fun. You enjoy every moment, every pedal stroke, adventure, nature. The perfect combination to help you feel as free as a bird, something we live and breathe here at Mondraker. That’s why we know how to make quality eMTBs backed by more than 20 years of experience and with the added value of having been World Champions. We know that there’s no better way to disconnect from the day to day grind than hitting the pedals and getting out in the country. That’s why our electric trail eMTBs are designed to let you enjoy yourself limitlessly.

Frame

Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor

sizes
Sizes

XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm

fork
Fork

RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

headset
Headset

Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

stem
Stem

Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

handlebar
Handlebar

Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

grips
Grips

Onoff Twin, 1lock-on, 135mm

seatpost
Seatpost

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm

saddle
Saddle

MDK ebike black

front brake
Front brake

Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad

rear brake
Rear brake

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

brake lever
Brake lever

Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

rims
Rims

Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

spokes
Spokes

Mavic J-bend double butted, contactless lacing

front hub
Front hub

Mavic, Boost 15x110mm, IS 6 bolts

rear hub
Rear hub

Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

front tire
Front tire

Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

rear tire
Rear tire

Maxxis Rekon 29×2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

crankset
Crankset

Race Face Aeffect ebike, 165mm

rings
Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

chain
Chain

Sram SX Eagle, 12s, Powerlock

rear derrailleur
Rear derrailleur

Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

shift levers
Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

casette
Casette

Sram PG-1210, 11-50T, 12s

derailleur hanger
Derailleur hanger

Mondraker M068

weight
Weight

22,9 kg

display
Display

Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

motor
Motor

Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM

battery
Battery

Bosch Powertube 625Wh

Painorajoitus – Tämän pyörän enimmäispainorajoitus (pyörän, ajajan ja kuorman yhteispaino) on 150 kg.
