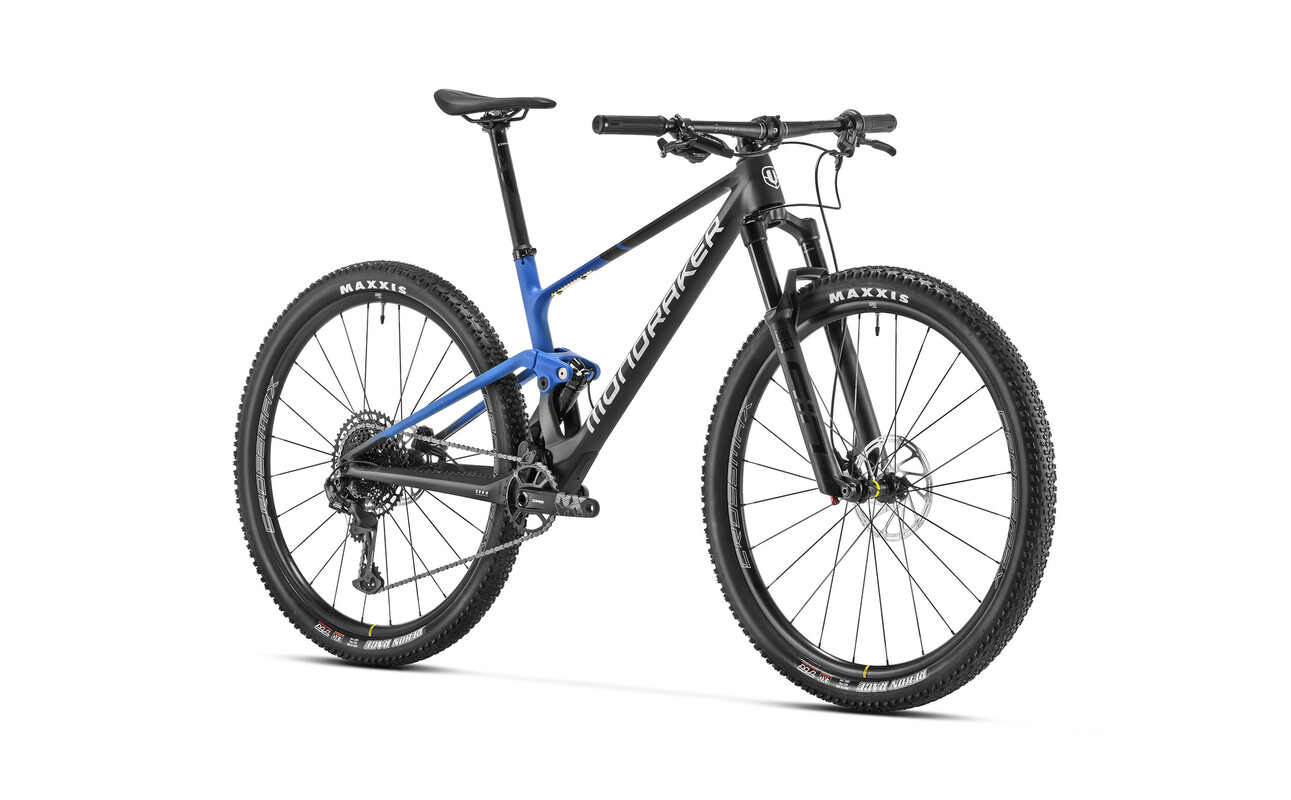

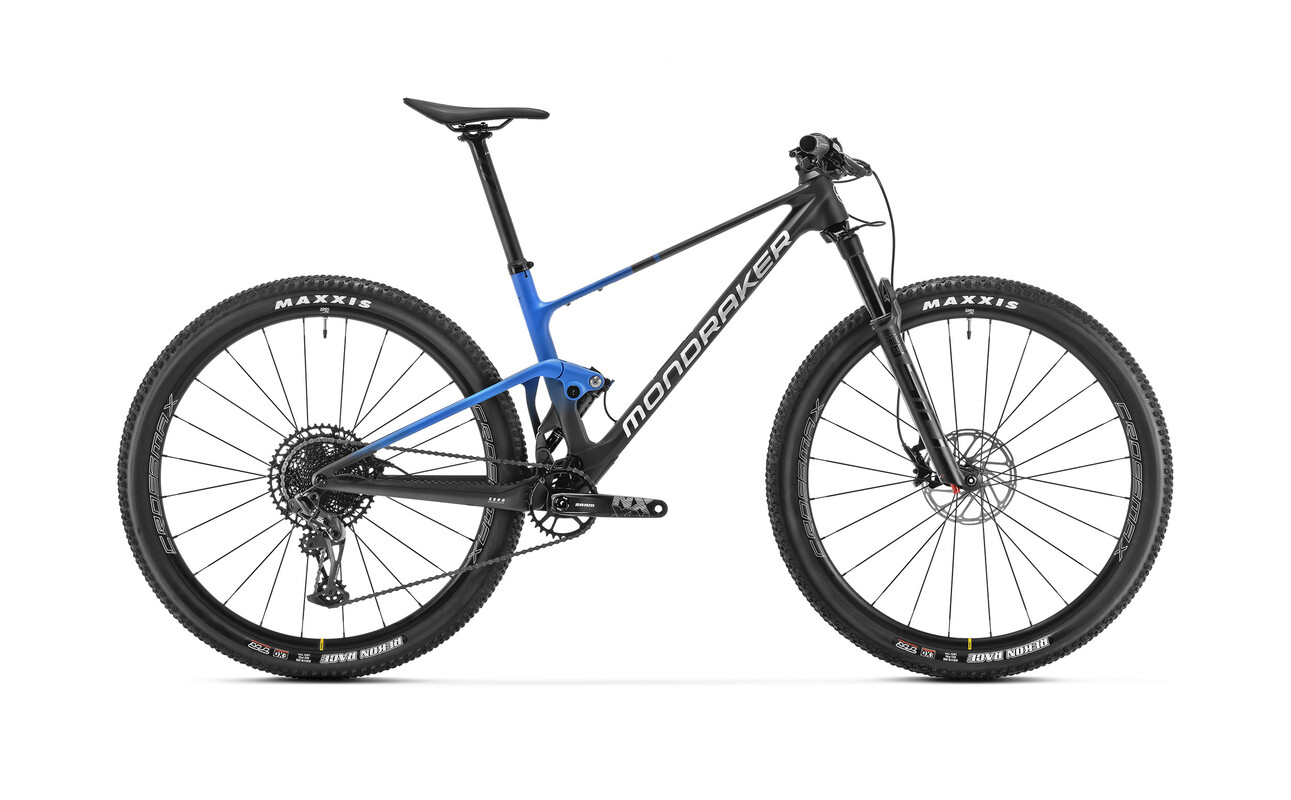

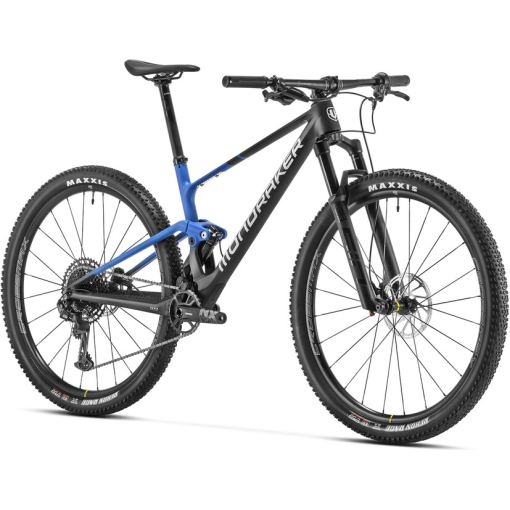

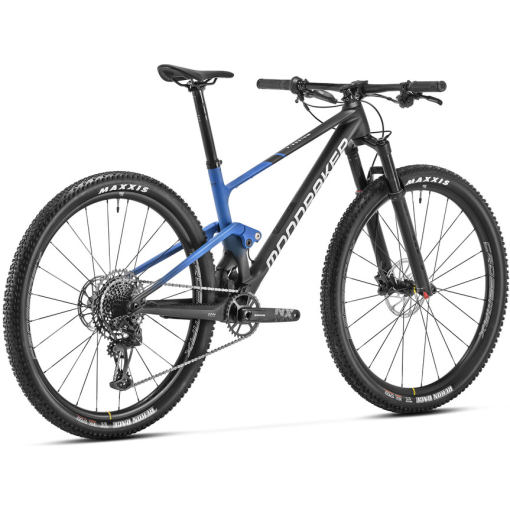

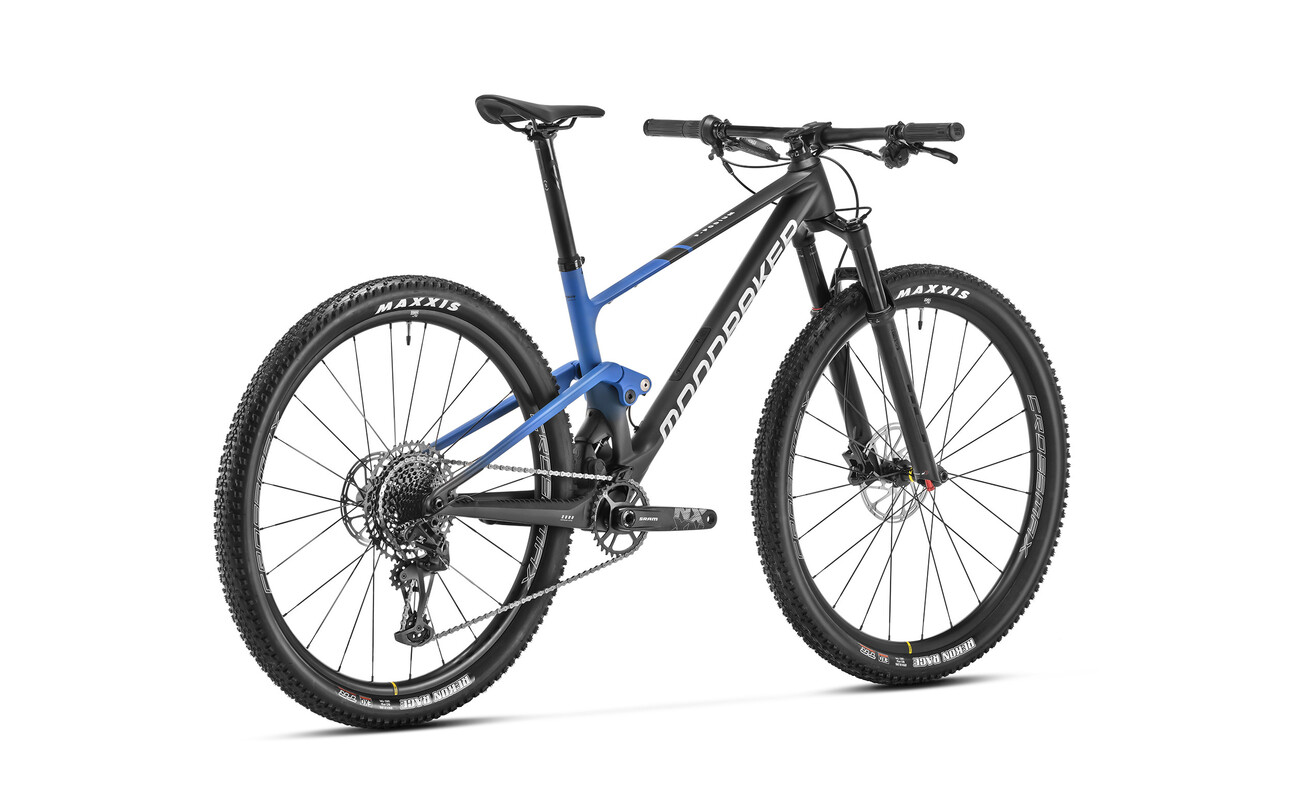

Mondraker F-Podium – Blue

Our cross country bike are all about being extremely light, agile and stiff. With over 20 years of experience in building incredible bikes with the latest features, the Mondraker XC Race is ideal for eking out your last iota of performance.

Our proprietary technologies such as FORWARD GEOMETRY, STEALTH AIR FULL CARBON and ZERO SUSPENSION SYSTEM are on everyone′s lips and make these models benchmarks on the international XC circuit. The F-PODIUM will help you climb to the top step of the podium thanks to its absolutely unreal performance on the most demanding of circuits.

Frame

F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.

sizes
Sizes

S: 410mm / M: 440mm / L: 470mm / XL: 500mm

rear shock
Rear shock

Rockshox SID Luxe 3P Remote in Pull DebonAir, 165x45mm. Settings: 3 position remote,, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

shock settings
Shock settings

Medium compression, medium rebound, Lockout 430, 1 Token

fork
Fork

Rockshox SID Base 3P Remote 29, 120mm, DebonAir, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: 3 position remote, Low-speed rebound, air preload

fork remote
Fork remote

RockShox TwistLoc Base FullSprint 125 B1 3 Position (7mm + 7mm), Twist to lock, Twist to unlock

headset
Headset

Acros custom for 1-1/2″ head tube, angular contact bearings 40x52x7, Internal cable routing

stem
Stem

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm

handlebar
Handlebar

Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

grips
Grips

Rock Shox Twistloc grips

seatpost
Seatpost

Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm

saddle
Saddle

Fizik Vento Argo X5

front brake
Front brake

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

rear brake
Rear brake

Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

brake lever
Brake lever

Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

rims
Rims

Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes

spokes
Spokes

Mavic straight-pull double butted, contactless lacing

front hub
Front hub

Mavic, Boost 15x110mm, IS 6 bolts

rear hub
Rear hub

Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub

front tire
Front tire

Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead

rear tire
Rear tire

Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead

crankset
Crankset

Sram NX Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55

rings
Rings

34T, steel, X-Sync 2

bottom bracket
Bottom bracket

Sram DUB BSA, sealed bearings, 73mm

chain
Chain

Sram SX Eagle, 12s, Powerlock

rear derrailleur
Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

shift levers
Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

casette
Casette

Sram PG-1230, 11-50T, 12s

derailleur hanger
Derailleur hanger

Sram UDH

weight
Weight

12,2 kg

Painorajoitus – Tämän pyörän enimmäispainorajoitus (pyörän, ajajan ja kuorman yhteispaino) on 120 kg.
