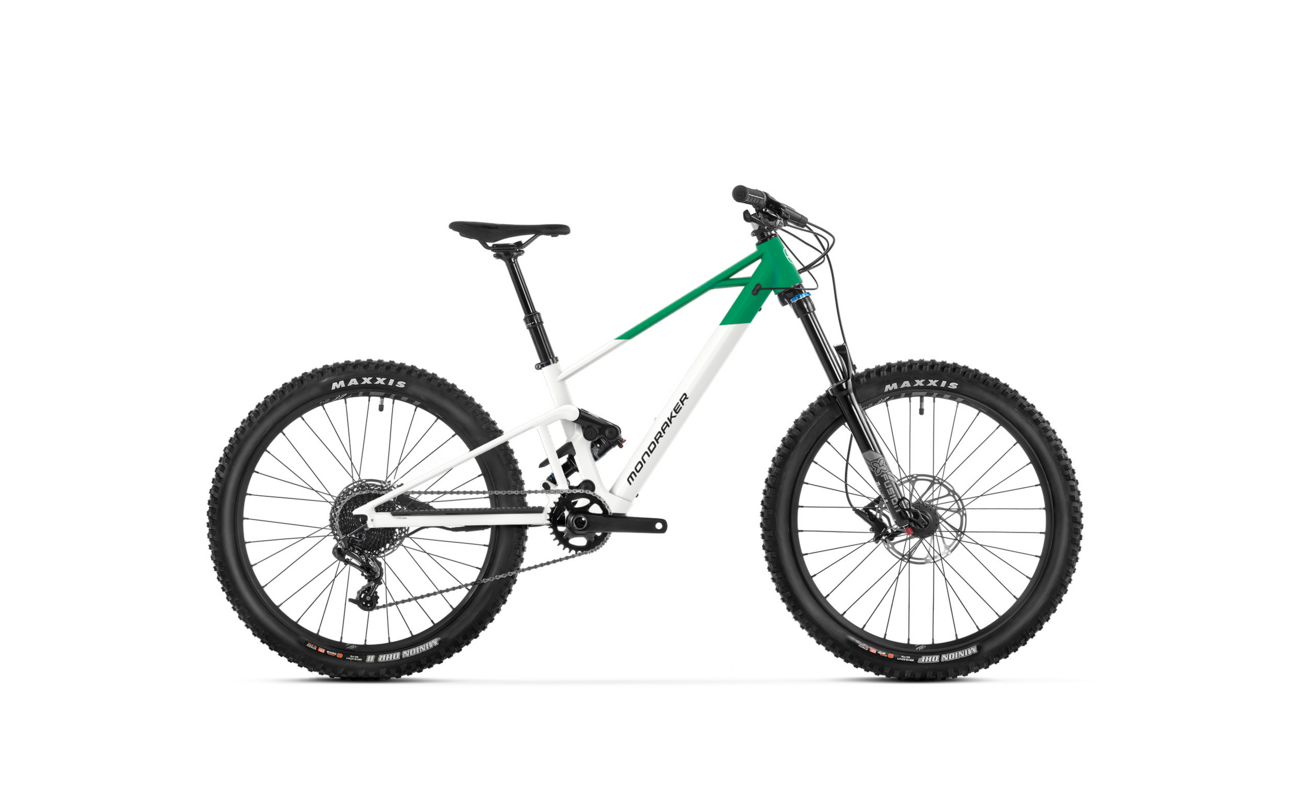

Mondraker F-Play 24

The new F-Play range has been developed in conjunction with the F-Trick range to make them ride as near as possible to a non-ebike: light, agile and responsive. To that end they share the same kinematic, Updated Zero Suspension System, suspension travel and a frame design that make them almost indistinguishable. The F-Play have a minimalist frame design with a stylised downtube which contains the 250Wh battery. The frame design includes the trademark Mondraker ‘window’ where the headtube meets the downtube and top tube, as well as being manufactured from Alloy Stealth Evo throughout.

Frame
F-Play 24 6061 Alloy Stealth evo, Zero Suspension System, 120mm travel, integrated battery, Tapered head tube, HHG internal cable routing, BSA.
Sizes: One size: 300mm

Suspension

Rear shock: X-Fusion 02PRO R, 165×42.5mm. Settings: low-speed rebound, air preload (A-Tune light compression).

Fork: X-Fusion Slant RC 26, 120mm, air spring, 15x100mm axle, 34mm stanchions. Settings: lockout, rebound, air preload.

Cockpit

Headset: Onoff ZS44/ZS56, 1-1/8″ – 1.5″, ACB sealed bearings.

Stem: Onoff S3 30mm 0º, 31.8mm.

Handlebar: MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm.

Grips: Onoff Beehive, 1lock-on, 135mm.

Brakes

Front & Rear brake: Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads.

Brake lever: Shimano MT501, servo wave, alloy lever.

Wheels

Rims: MDK-HP1 24 TLR, 25mm internal width, tubeless ready.

Spokes: CN round stainless steel.

Front hub: DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts.

Rear hub: Mahle-Ebikemotion X-30, HG freehub.

Front tire: Maxxis Minion DHF 24×2.4, Tubeless ready, 3C MAXX TERRA, EXO, 60TPI.

Rear tire: Maxxis Minion DHR II 24×2.3, Tubeless ready, EXO, 60TPI.

Drivetrain

Crankset: Prowheel DMJ-CR094S-TT, 150mm, 30T steel ring.

Bottom bracket: Prowheel PW-MBB73 73mm.

Rear derrailleur: Shimano Deore M6100, SGS, Shadow+, 12s.

Shift levers: Shimano Deore M6100, Rapid Fire Plus, 12s.

Casette: Sunrace CSMZ600, 11-51T.

Chain: Shimano Deore M6100, 12s, Quick-link.

E-Components

Motor: Mahle X-30 Drive Unit.

Battery: Mahle IX250Wh.

Display: iWoc ONE Head Unit.

Components

Seatpost: X-Fusion Manic LC internal, 31.6mm, 100mm travel.

Saddle: SDG Fly JR.

Pedals: SDG Slater JR.

Derailleur hanger: Mondraker M077.

Weight
17,2 kg
