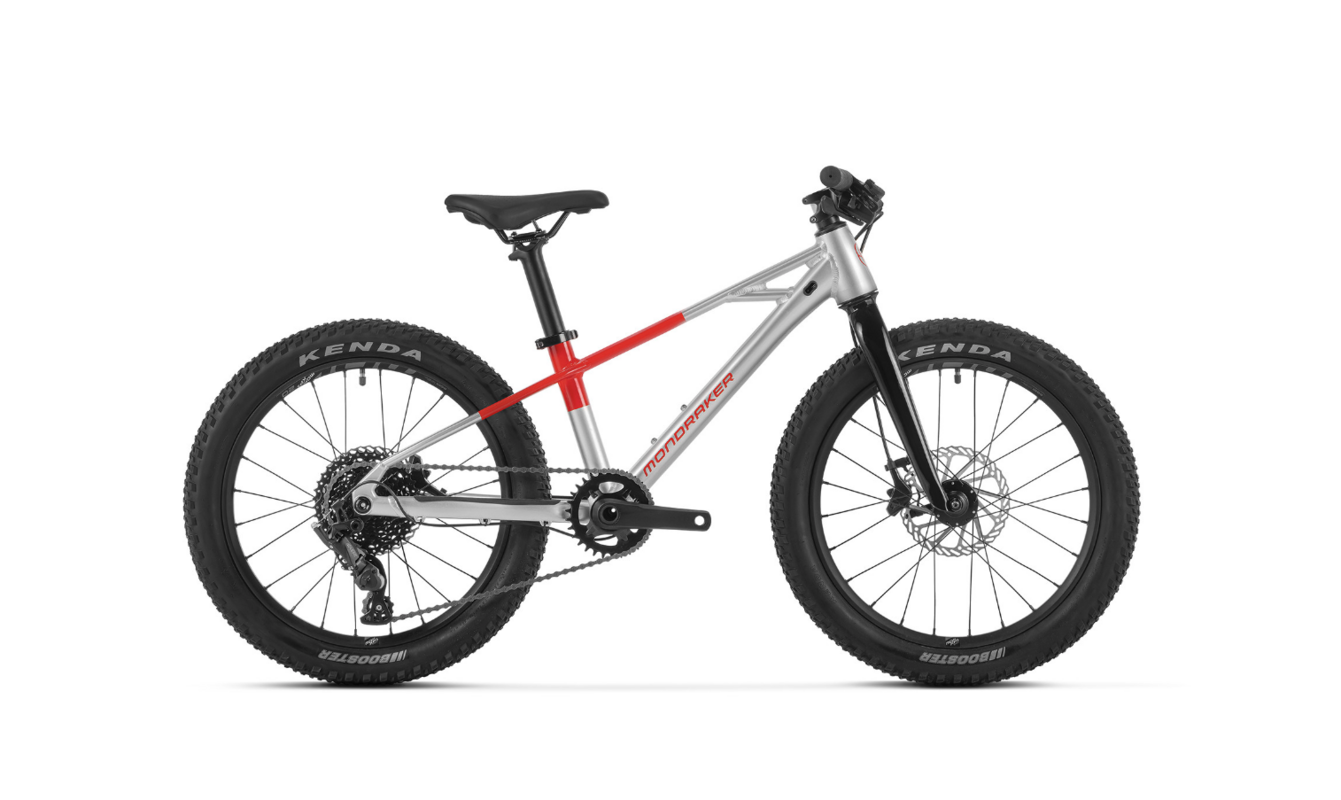

Mondraker Trick 20

The new Trick rewrites everything compared to the old Leader, as this year brings a fresh new frame design with a design language clearly influenced by our high-end adult bikes. Minimalistic frame tubes, straighter lines, and details such as the top tube flowing into the seat stays in an almost straight line, and nothing says ‘Mondraker’ more than the ‘window’ between the top tube, the down tube and the headtube now featured on the Trick too.

All the frames are made from Alloy Stealth Evo and our Forward Geometry has been 100% tweaked to best suit kids’ needs. Internally guided cable routing is featured, as is 12x142mm rear hub spacing, a UDH mech hanger and 2.4” tyres. This tyre width is fundamental as it makes a huge difference to the grip available on tricky terrain, thus increasing confidence, and allows for lower tyre pressures in general to aid with comfort and control.

Frame
Trick 20 6061 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger, BSA bottom bracket, 12x142mm rear axle, UDH

Sizes
One size – 260mm

Fork
MDK 20 Kid, alloy stanchions, chromoly steering tube

Headset
Onoff ZS44/ZS56, 1-1/8″–1.5″ head tube, ACB sealed bearings
Top: 42x30x7 (45ºx45º)
Bottom: 52x40x8 (45ºx45º)

Stem
MDK XC, 6061 forged alloy, 25.4mm barbore, 0º rise, 40mm length

Handlebar
MDK XC 1.0, 6061 alloy, 19mm rise, 580mm width, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips
Onoff Kids 19, 100mm

Seatpost
MDK XC, 6061 T6 alloy, 31.6mm diameter, 250mm length, 0mm offset

Saddle
Mondraker Leader Kids Series

Front Brake
Clarks M2 Junior, 160mm IS 6-bolt, one-piece rotor

Rear Brake
Clarks M2 Junior, 160mm IS 6-bolt, one-piece rotor

Brake Lever
Clarks M2 Junior

Rims
MDK-XP1 20 TLR, 25mm internal width, tubeless ready, 24 spokes

Spokes
CN round stainless steel

Front Hub
K8QF, 9x100mm QR axle, cup & cone ball bearings

Rear Hub
KTSN8R, 12x142mm, sealed bearings, HG freehub

Front Tire
Kenda Booster 20×2.4, single compound, 30TPI, wire bead

Rear Tire
Kenda Booster 20×2.4, single compound, 30TPI, wire bead

Crankset
Samox DM, 30T steel, 114mm

Chainring
30T

Bottom Bracket
CH-52

Pedals
NW-450 PP

Chain
KMC Z-9, 9s

Rear Derailleur
Microshift Advent M6195S, super short cage

Shift Levers
Microshift Advent SL M6195R, 9s

Cassette
Microshift Advent 11–38T, 9s

Derailleur Hanger
UDH

Weight
9.3 kg
