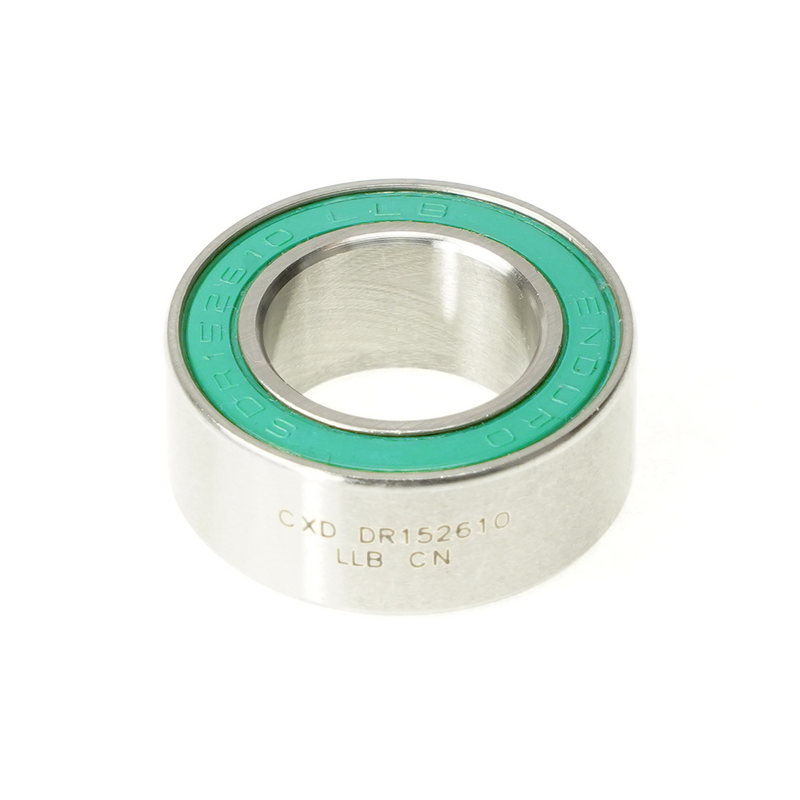

Enduro Bearings 152610 – 15x26x10

Name: Enduro Bearings 152610 - 15x26x10
SKU: 152610
Availability: InStock

136,00€

CXD DR 152610 LLB – XD15 Ceramic-Hybrid, ABEC-5, Double-Row, radial bearing – (CN clearance) – 15mm x 26mm x 10mm – The ultimate upgrade – An Enduro Bearings exclusive, our XD15 Ceramic-Hybrid bearings combine corrosion-proof, cryogenically treated nitrogen steel races with Silicon Nitride Grade 5 ceramic balls in a proprietary process that results in the ultimate high performance bearing setup. The deep-groove design raceways allow for maximum sized Grade 5 Silicon Nitride ceramic balls for for increased contact area and improved performance and longevity. Dual-lip labyrinth (LLB) seals protect from the elements, and contain the 90% fill Kluber NBU52 grease that runs smoother with time and is highly resistant to being washed out. The most impressive feature of XD15 ceramic-hybrid bearings is, unlike other bearings, they only get better with time and use. As the bearings wear-in, the super-hard ceramic balls actually make the XD15 races even smoother. So, when compared to other ceramic-hybrid bearings on the market that claim speed and power advantages on day one, Enduro XD15 bearings not only provide the same initial advantages on day one, but will become faster and smoother with time and use, while the other ceramic-hybrid options will only get slower. We are so confident in the performance of XD15 Ceramic-Hybrid bearings that they carry a limited lifetime warranty against wear and corrosion. – This bearing is used primarily by Industry Nine in their rear hubs. The extra-wide double-row design greatly reduces flex in the axle of the rear hub, while precisely filling the same space as two 6802 single-row bearings. The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements. Static load – 751lbf / 3.34kN Weight – 18.5g – Lue vähemmän

Standardi

CXD - Radial - LLB (Napalaakeri)

Poista

Seal Types:
2RS – 2 Rubber Seals | 2 kumitiivistettä
LLB – Medium Contact Seal. Well suited for Hubs | Keskikontaktitiiviste. Sopii hyvin napoihin
LLU – Full Contact Seal. Better for suspension pivots | Täyskosketustiiviste. Sopii paremmin jousituksen niveliin
VV – Light Contact Seal | Kevytkosketustiiviste
SRS – Snap Ring Seal | Lukkorengastiiviste
LLU/LLB – Dual Seal Bearing (One seal type per bearing side) | Kaksoistiiviste, eri tiivistetyyppi kummallakin puolella

Treatments / Coatings:
BO – Black Oxide Treatment. Corrosion resistant coating | Mustaoksidointi. Korroosiosuojaava pinnoite

Bearing Types:
(6)801 – 6 Single Row Bearing | Yksirivinen laakeri
6(3)801 – 3 Wide Single Row Bearing | Leveä yksirivinen laakeri
(3)801 – 3 Double Row Bearing | Kaksirivinen laakeri
6(1)801 – 1 ABEC-5 Bearing | ABEC-5-tarkkuuslaakeri
(7)1801 – 7 Angular Contact Bearing. Specifically designed for hubs | Kulmakosketuslaakeri, suunniteltu navoille
(S)6801 – S Stainless steel bearing | Ruostumattomasta teräksestä valmistettu laakeri
MR – Metric Roller | Metrinen laakeri
MRA – Metric Roller Angular Contact. Specifically designed for hubs | Metrinen kulmakosketuslaakeri, navoille
SMR – Stainless Steel Metric Roller | Ruostumattomasta teräksestä tehty metrinen laakeri
SMRA – Stainless Steel Metric Roller Angular Contact | Ruostumaton metrinen kulmakosketuslaakeri
DR – Double Row | Kaksirivinen laakeri
A5 – ABEC-5 Bearing | ABEC-5-tarkkuuslaakeri
ACB – Angular Contact Bearing | Kulmakosketuslaakeri
Radial – Radial Bearing | Radiaalilaakeri (kantaa pääasiassa radiaalikuormaa)

Specialty Bearings / Ceramics:
CH – Ceramic Hybrid. ABEC-5 tolerance, LLB Seals, Graphite Nylon retainer. | Keraamihybridi. ABEC-5-tarkkuus, LLB-tiivisteet, grafiittinailonpidin.
CO – Ceramic Zero. Comes close to magic ″zero″ rolling resistance number. | Ceramic Zero. Erittäin alhainen vierintävastus.
CXD – XD-15 Ceramic. Longest lasting, speediest ceramic bearing available | XD-15-keraamihybridi. Kestävin ja nopein saatavilla oleva keraamilaakeri.
SXD – XD-15 Stainless Steel Bearing | XD-15-ruostumaton teräslaakeri
MAX – Max suspension pivot bearing. Designed specifically for suspension pivots. | MAX-laakeri. Suunniteltu erityisesti jousituksen linkuston niveliin.

Races & Flanges:
E – Extended Inner Race | Pidennetty sisärengas
EE – Double Extended Inner Race (extends on both sides) | Pidennetty sisärengas molemmin puolin
F – Flanged Bearing | Laipallinen laakeri
FE – Flanged Extended Inner Race | Laipallinen, pidennetty sisärengas
FO – Flanged Offset Bearing | Laipallinen, siirretty sisärengas

Shields:
1Z – Single-side Grease Shield | Yksipuolinen rasvasuoja
ZZ – Dual Side Grease Shield | Kaksipuolinen rasvasuoja

Materials:
CC – High Chromium Steel Bearing | Korkeakromiteräslaakeri
SS – Stainless Steel Bearing | Ruostumaton teräslaakeri

Merkki	Enduro
Koko	15x26x10
Malli	152610
Materiaali	XD-15-supernitriditeräs/keraamihybridilaakeri
Standardi	CXD – Radial – LLB (Napalaakeri)
Runkorakenne	Radial
Suojaus	LLB
Leveys	10mm
Sisähalkaisija	15mm
Ulkohalkaisija	26mm
EAN	811780023598
Valmistajan koodi	BB CXD DR 152610 LLB-bx
