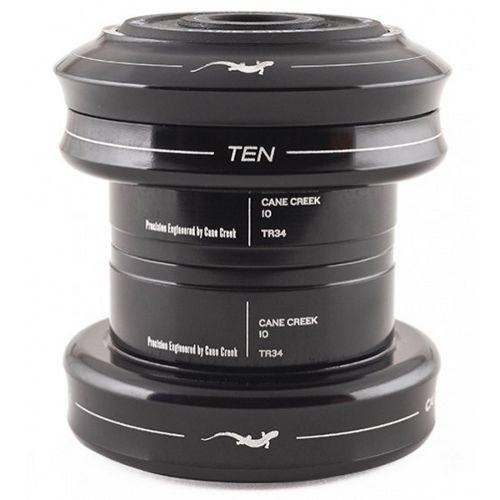

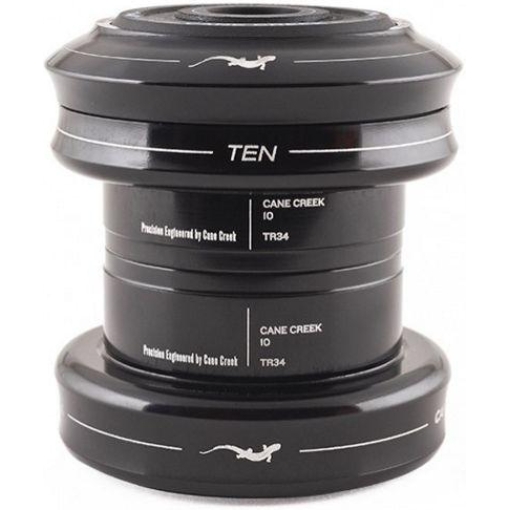

″The 10-Series has the look and feel of Cane Creek’s class-leading 40-Series headsets with simpler machining and more economical materials. Designed with the upgrade path in mind, the 10-Series shares the internal geometry of Cane Creek’s higher-end headsets and, as a result, replacement and upgrade parts are readily available.
Technical Description EC34/28.6/H16/K|EC34/30 /H12/K
Top Type EC – External Cup
Top Head Tube Inside Dia. 33.95mm
Stem Clamp Dia. 28.6mm
Top Stack Height 16mm
Top Bearing Type Black Oxide
Bottom Type EC – External Cup
Bottom Head Tube Inside Dia. 33.95mm
Crown Race Seat Dia. 30.015mm
Crown Race Type Polymer
Bottom Stack Height 12mm
Bottom Bearing Type Black Oxide
Material 6061
Weight 88.29g
Part Number BAA0056K″
