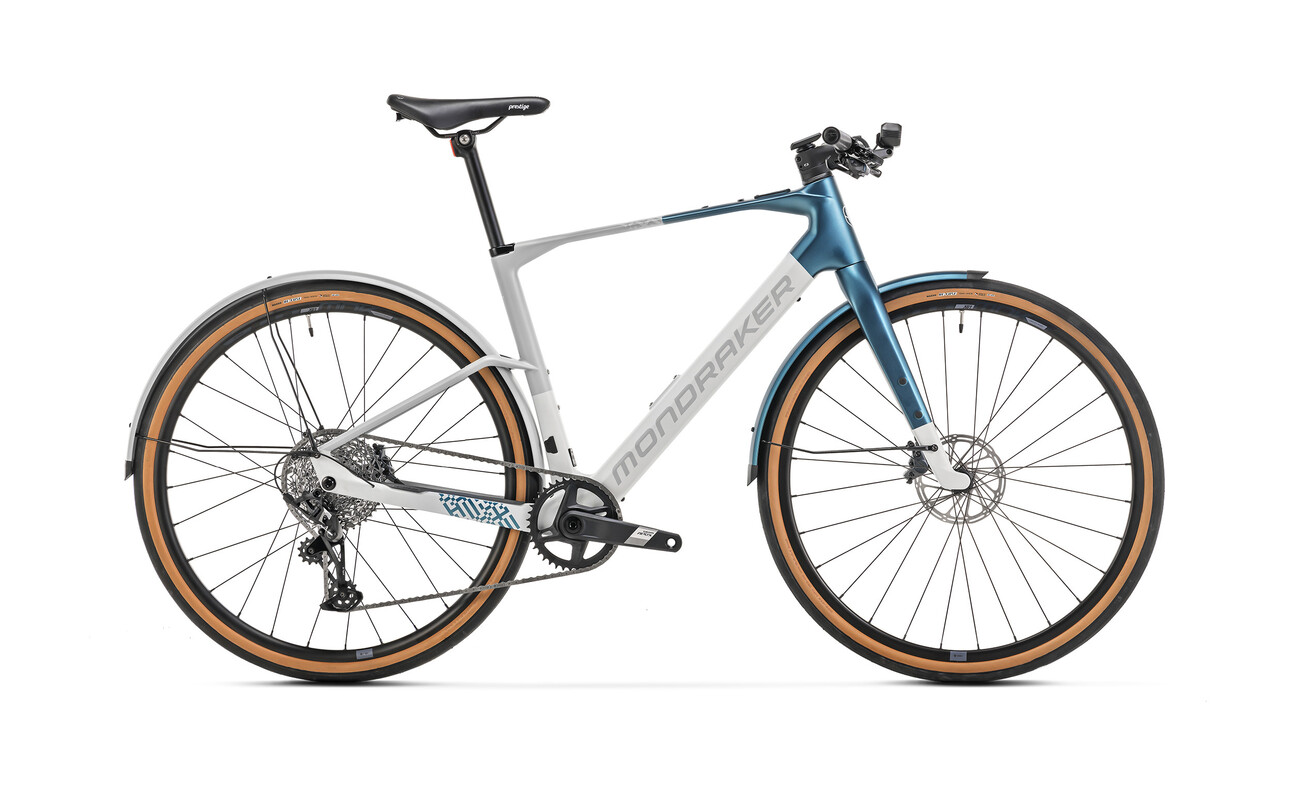

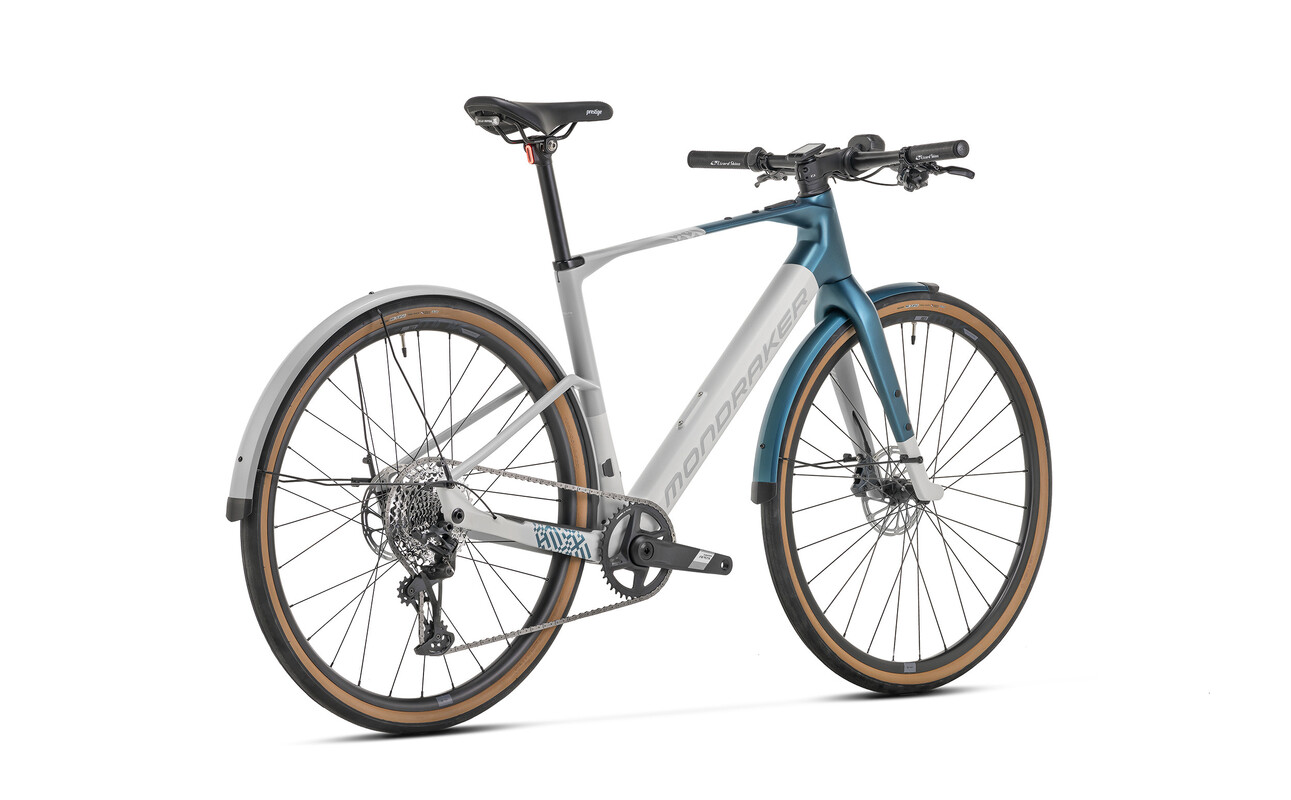

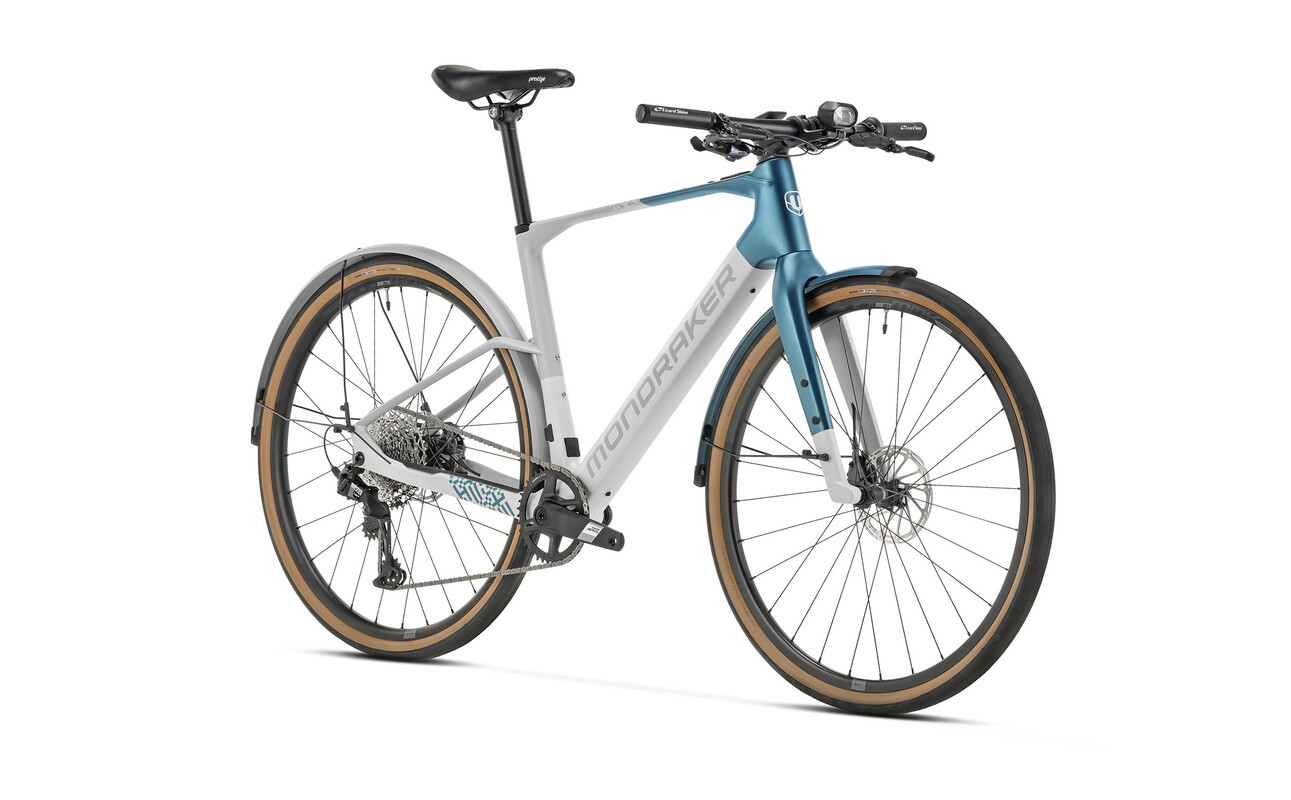

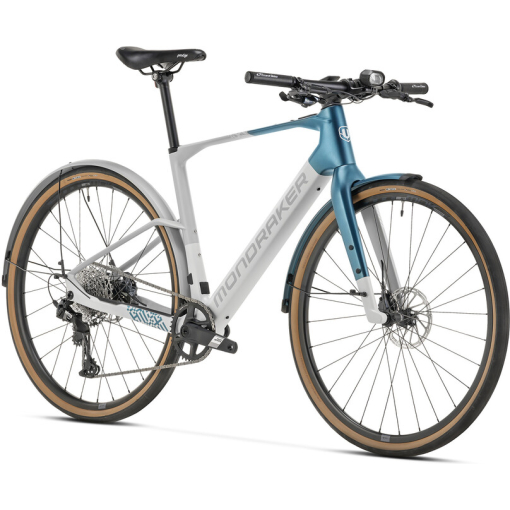

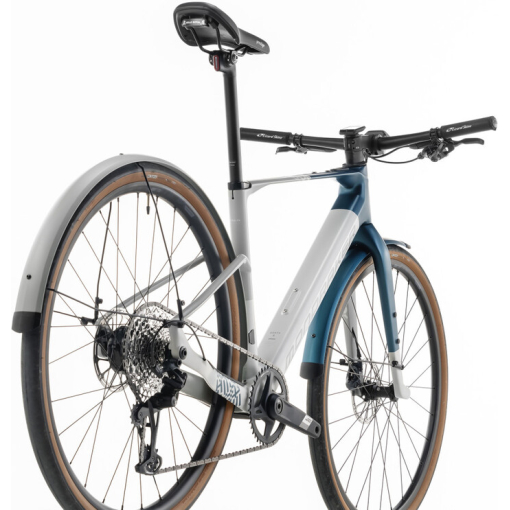

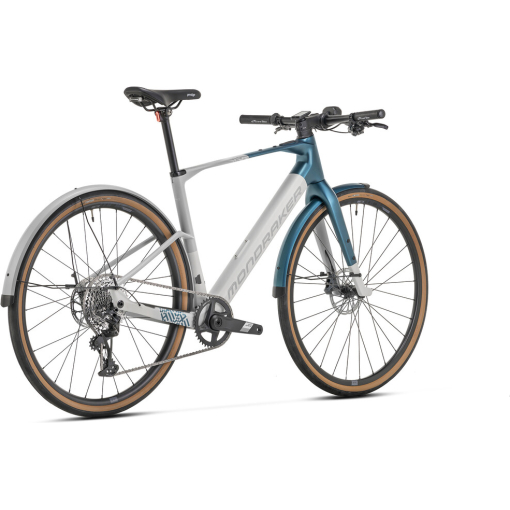

Mondraker Dusty X

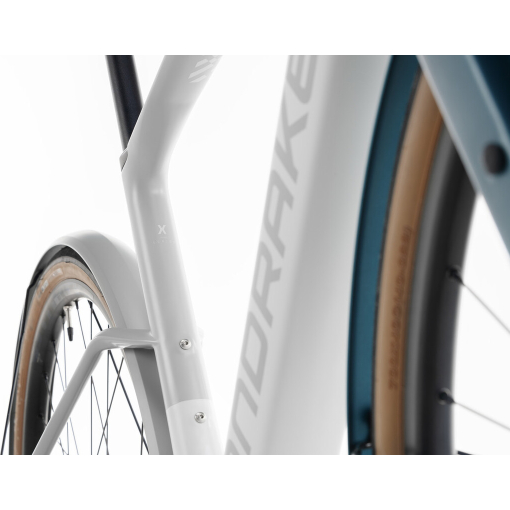

Frame
Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.

Sizes
S: 440mm / M: 460mm / L: 500mm / XL: 530mm

Fork
Stealth Air Carbon tapered steerer tube, HHG, flat mount integrated fork

Headset
OnOff gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem
OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: S/M: 70mm, L: 80mm, XL: 90mm

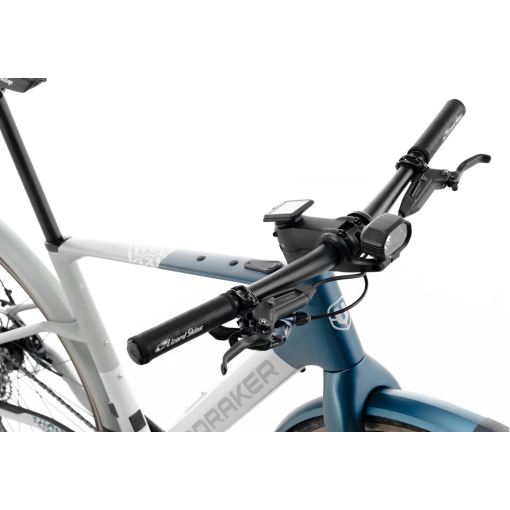

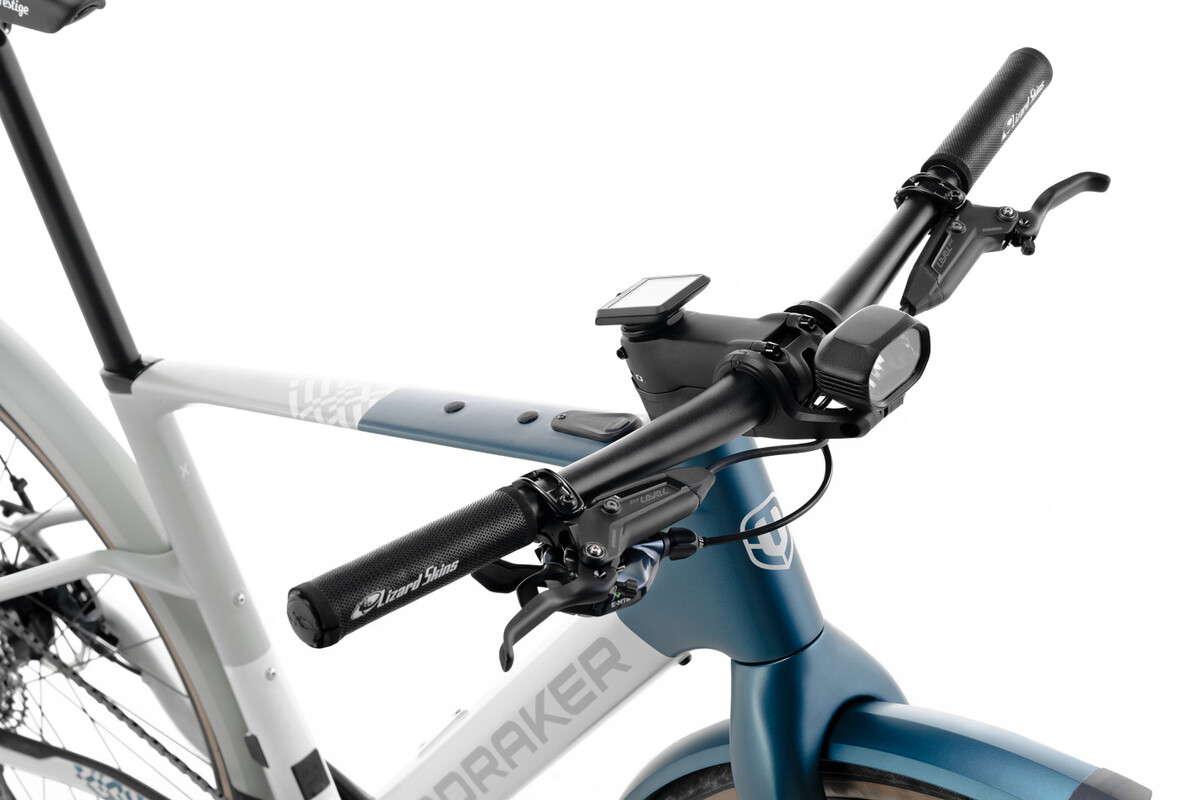

Handlebar
MDK Urban 1.0 double butted 6061 alloy, rise: 0mm, width: 640mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips
Lizard Skins DSP 30.3

Seatpost
Seatpost with integrated Supernova LED rear light, diameter 27.2mm, length 400mm

Saddle
Selle Royal Prestige 139mm

Front brake
Sram Level Silver 2P Stealth, 2-piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake
Sram Level Silver 2P Stealth, 2-piece flatmount caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

Brake lever
Sram Level Silver, tool-free reach adjust, lever pivot bearings

Rims
MDK-XG1, 23mm internal width, tubeless ready, 28 spokes

Spokes
CN round stainless steel

Front hub
Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts

Rear hub
Mahle X20 Drive Unit, HG freehub

Front tire
Maxxis Re-fuse 700×40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall

Rear tire
Maxxis Re-fuse 700×40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall

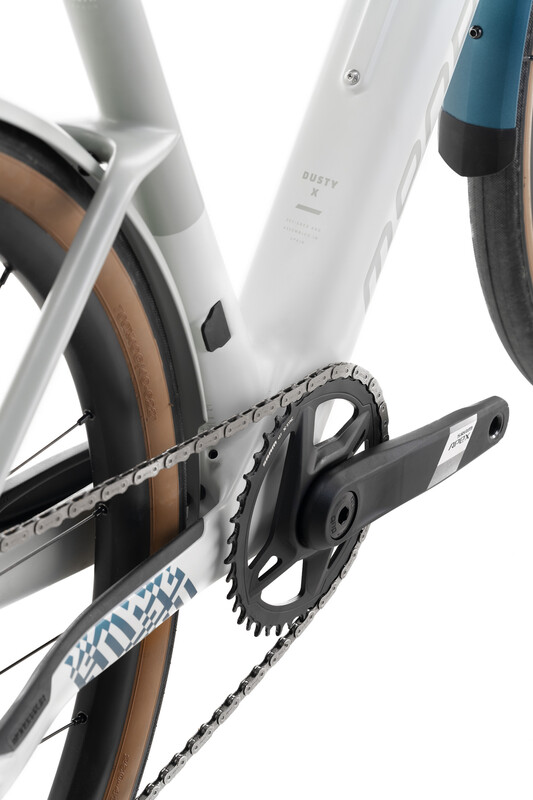

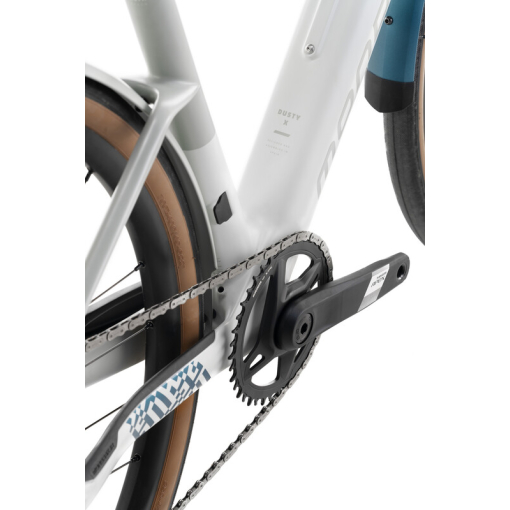

Crankset
SRAM Apex 1 Wide, S: 170mm, M: 172.5mm, L: 172.5mm, XL: 175mm

Rings
Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide

Bottom bracket
Mahle DUB pressfit, sealed bearings, with torque sensor

Chain
Sram Apex, 12s, Powerlock

Rear derailleur
Sram Apex XPLR 12s

Shift levers
Sram Trigger GX Eagle, 12s, X-Actuation 1:1

Cassette
Sram PG-1231 11-44, 12s

Derailleur hanger
Mondraker M076

Others
150LUX front light. Optional external battery: Mahle e185Wh

Weight
14.55 kg

Display
Pulsar One Wireless / DUO remote

Motor
Mahle X20 Drive Unit

Battery
Mahle X20 IX350Wh
