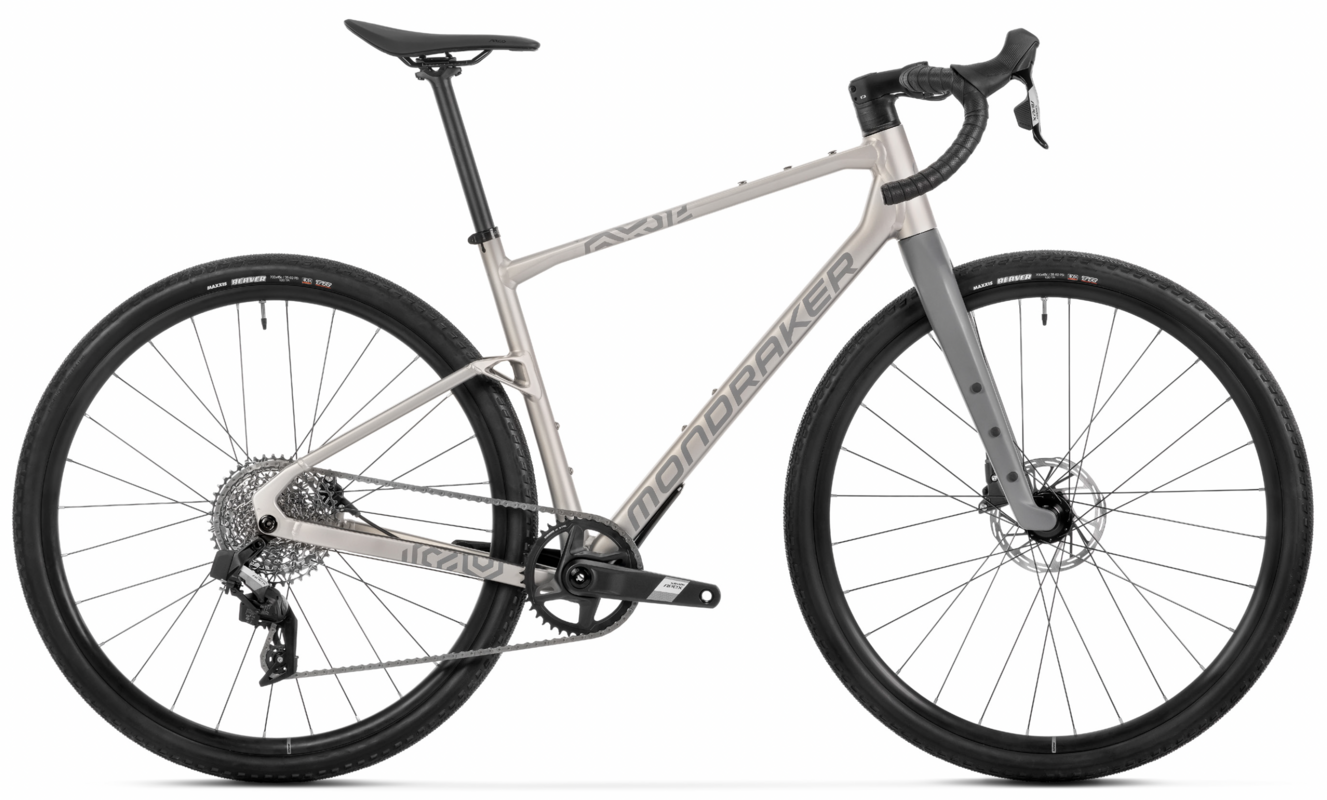

Mondraker Arid R – Graphite

Alkuperäinen hinta oli: 2899,00€.Nykyinen hinta on: 2659,00€.

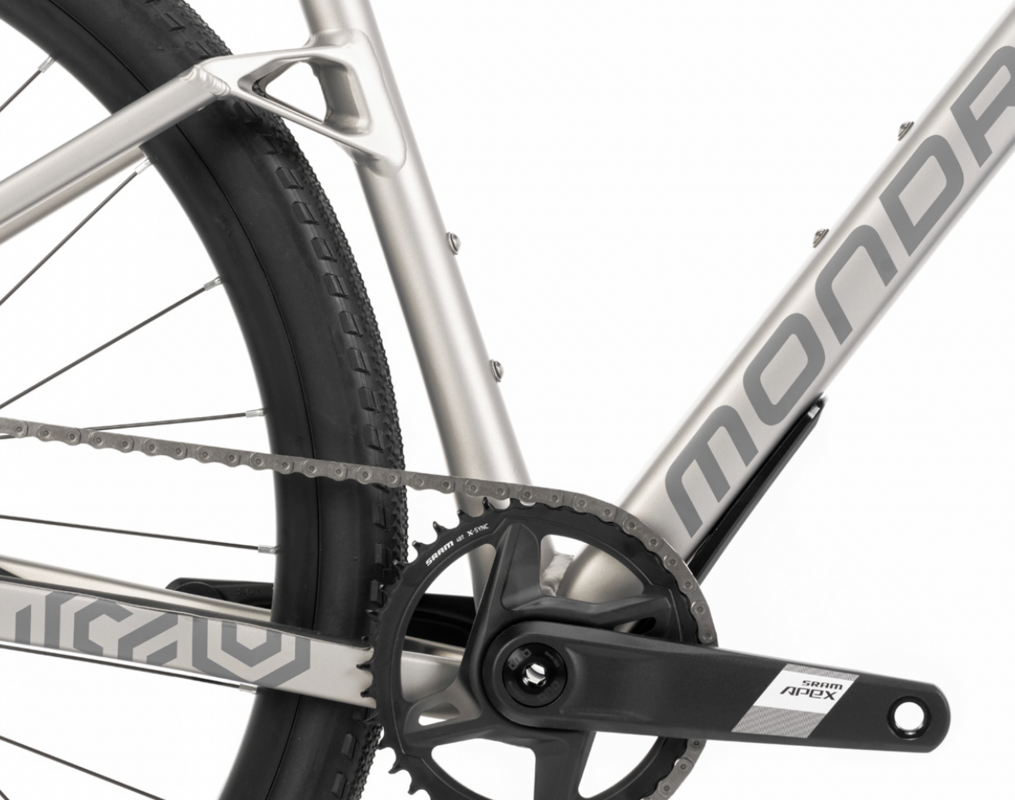

Engineered for gravel adventures and daily rides, Arid features Stealth Alloy EVO manufacturing technology with Smooth welds and optimized tube shapes for excellent compliance and vibration damping, rivaling the comfort of carbon frames.

Kokotaulukko / Size chart

Huom. Taulukko on valmistajan suuntaa antava ohjeistus. Mikäli oikean koon valinta askarruttaa, myyjiltä kannattaa tiedustella tarkempia suosituksia!

Pituus	Koko
160-168cm	Small
165-180cm	Medium
173-185cm	Medium / Large
182-193cm	Large
+190cm	X-Large

Koko

Poista

Tähän pyörään lisävarusteet -20%

Trek Commuter Light Set

SKS Speedrocker XL lokasuojat

Lizard Skins Clear Protective Frame Wrap - Frame Kit

Osta pakettina ja säästä

Mondraker Arid R - Graphite

Trek Air Rush Sähköpumppu

Shimano EH500 combi lukkopoljin

	Tuote		Hinta
	Trek Air Rush Sähköpumppu
	Shimano EH500 combi lukkopoljin
	Mondraker Arid R - Graphite

With ample tire clearance, modern standards like flat-mount disc brakes and thru-axles, and with
multiple mounting points, it’s ready for everything from epic bikepacking trips to even some occasional gravel races.
Experience lightweight performance, proven Mondraker Stealth Alloy EVO frame construction and all-day comfort-without the premium price tag.

FRAME : Arid 6061 Alloy Stealth Evo, hydroformed tubing, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible

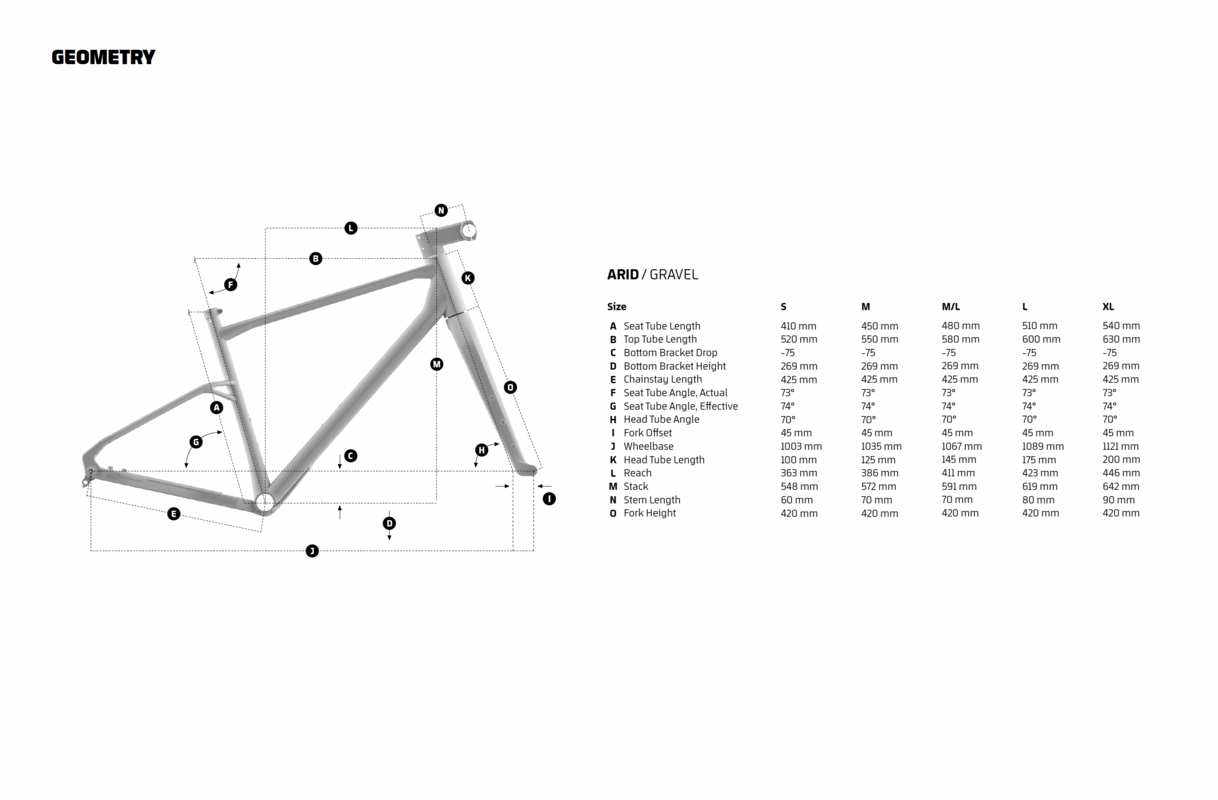

SIZES : S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
FORK : Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
HEADSET : Onoff IS52/IS52, 1-1/8”, 1.5” head tube, sealed bearings, Internal cable routing
STEM : Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
HANDLEBAR : Onoff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
GRIPS : Onoff HEX Bartape
SEATPOST : Onoff S3 0-R, diameter 27,2mm, length 400mm
SADDLE : Fizik Vento Argo X5 140mm
FRONT BRAKE : Sram Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
REAR BRAKE : Sram Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
BRAKE LEVER : Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
RIMS : Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
SPOKES : Mavic Steel double butted flat spokes
FRONT HUB : Mavic, 12x100mm, Centerlock
REAR HUB : Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, HG Freehub
FRONT TIRE : Maxxis Reaver 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
REAR TIRE : Maxxis Reaver 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
CRANKSET : Sram Apex 1 Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
RINGS : Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide
BOTTOM BRACKET : Sram DUB T47 BSA, sealed bearings, 85,5mm
CHAIN : Sram Apex, 12s, Powerlock
REAR DERAILLEUR : Sram Apex XPLR AXS D1 12s
SHIFT LEVERS : Sram Apex AXS D1 12s
CASSETTE : Sram PG-1231 11-44, 12s
