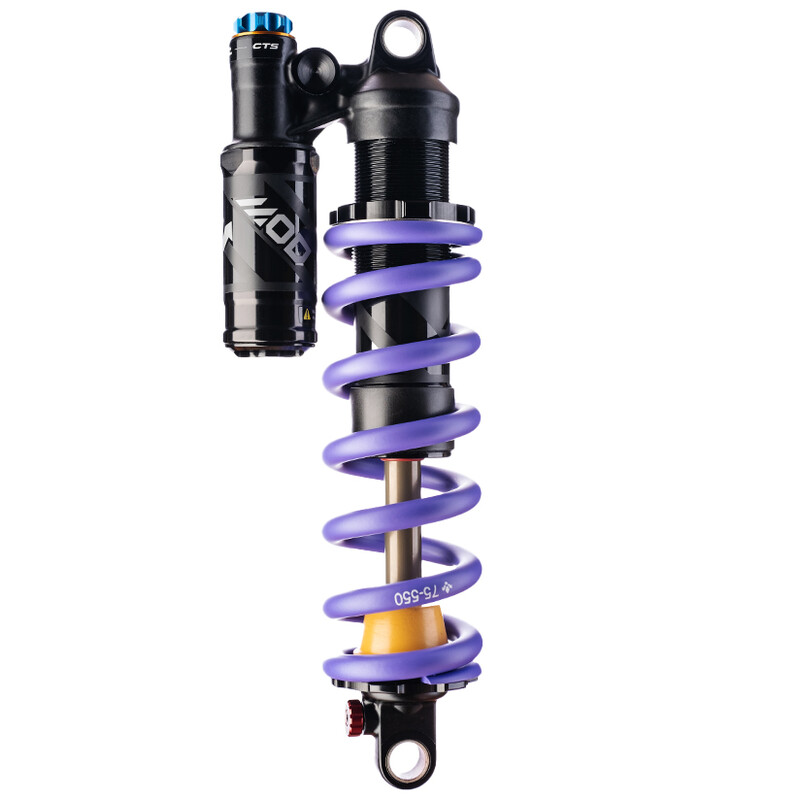

Formula MOD Coil Shock DH Trunnion (W/O SPRING)

960,50€

The Mod DH’s performance has put it at the top of elite level competition, from World Cup DH to Red Bull Hardline. Its reliability makes it the choice for privateer racers and those looking for a shock that can last a season of bike park laps.

Varasto loppu

Performance

The Mod DH’s high oil flow damping circuit and large volume bladder oil reservoir give fine levels of sensitivity and grip. They also allow the shock to run cooler, giving a consistent feel throughout a race run.

Tunability

Formula’s Compression Tuning System, or CTS, allows you to tune the shock to the race track. These user-changeable valves give the shock three different compression profiles. CTS gives you professional tuning without cost or complexity.

A simple polyurethane bump-stop prevents harsh bottom outs without the need for complex hydraulics.

Reliability

With major service intervals every 200 hours, the Mod DH is reliable and can be serviced in the pits. And, as part of our 10 Year Support Promise, parts, spares and support will be available for at least ten years.

SIZES
Standard 250 x 75,72.5,70,67.5 mm
Trunnion 225 x 75,72.5,70,67.5 mm

ADJUSTMENTS
Compression 17 Click Adjustment
Rebound 13 Click Adjustment
CTS Gold, Orange and Green valves included
Coil spring Preload

HARDWARE
Sizes (mm) 20×8, 22×8, 25×8, 30×8, 35×8, 40×8, 22×10, 25×10, 30×10

WEIGHT
trunnion 225×75 with 300 lbs/in spring 826 g
