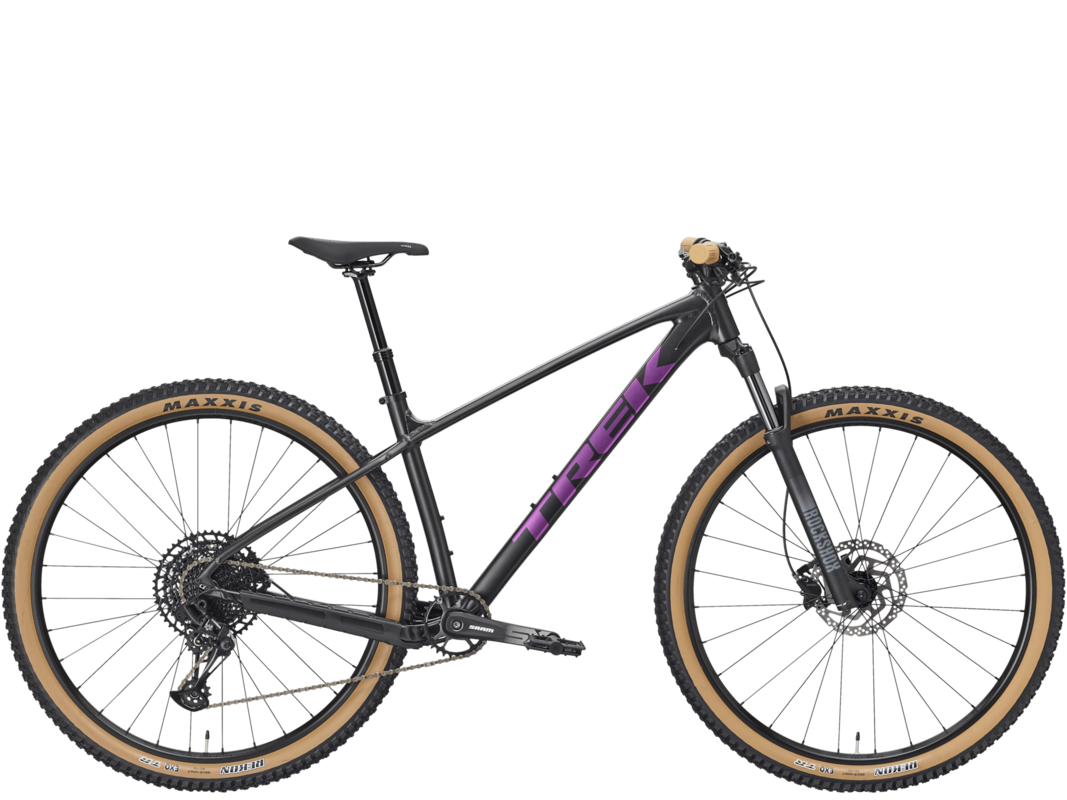

Trek Marlin 7 Gen 3 – Black

Frame:
XXS, XS – Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135 × 5 mm ThruSkew
S, M, ML, L, XL, XXL – Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135 × 5 mm ThruSkew

Fork:
XXS – RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset, 27.5″, 100 mm QR, 80 mm travel
XS, S – RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset, 27.5″, 100 mm QR, 100 mm travel
M, ML, L, XL, XXL – RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset, 29″, 100 mm QR, 100 mm travel

Front hub:
Formula DC-20 LW, alloy, 6-bolt, 100 × 5 mm

Front skewer:
116 × 5 mm QR

Rear hub:
Formula DC-22 LW, alloy, 6-bolt, Shimano 8/9/10 freehub, 135 × 5 mm

Rear skewer:
173 × 5 mm QR

Rim:
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve

Tyre:
XXS – Maxxis Ardent, Tubeless Ready, EXO casing, folding bead, 60 tpi, 26 × 2.40″
XS, S – Maxxis Ardent, Tubeless Ready, EXO casing, folding bead, 60 tpi, 27.5 × 2.40″
M, ML, L, XL, XXL – Maxxis Ardent, Tubeless Ready, EXO casing, folding bead, 60 tpi, 29 × 2.40″

Max tyre size:
Frame – 29 × 2.40″ (XXS: 26 × 2.40″, XS & S: 27.5 × 2.40″)
Fork – see manufacturer

Shifter:
SRAM SX Eagle, 12-speed

Rear derailleur:
SRAM SX Eagle, 12-speed

Crank:
XXS – SRAM SX Eagle, 30T steel ring, 49 mm chainline, 155 mm
XS, S, M – SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm
ML, L, XL, XXL – SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm

Bottom bracket:
Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle

Cassette:
SRAM PG-1210 Eagle, 11–50, 12-speed

Chain:
SRAM SX Eagle, 12-speed

Pedals:
VP-536, nylon platform

Max. chainring size:
1x – see FAQ
2x – 36T
3x – 42T

Saddle:
Bontrager Verse Short, stainless steel rails

Seatpost:
XXS, XS, S – TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm
M – TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm, 425 mm
ML, L, XL, XXL – TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm

Handlebar:
XXS, XS – Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm
S – Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm
M, ML, L, XL, XXL – Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm

Grips:
Bontrager XR Trail Comp, nylon, lock-on

Stem:
XXS, XS, S – Bontrager Comp, 31.8 mm, 7°, 35 mm
M, ML, L – Bontrager Comp, 31.8 mm, Blendr compatible, 7°, 50 mm
XL – Bontrager Comp, 31.8 mm, Blendr compatible, 7°, 60 mm
XXL – Bontrager Comp, 31.8 mm, Blendr compatible, 7°, 70 mm

Headset:
Semi-integrated, 1-1/8″

Brakes:
Shimano MT200, hydraulic disc

Brake rotors:
XXS, XS, S, M, ML, L, XL, XXL – Shimano RT26, 6-bolt, 160 mm
M, ML, L, XL, XXL – Shimano RT26, 6-bolt, 180 mm

Max rotor size:
Frame – 180 mm (XXS: 160 mm)
Fork – see manufacturer

Weight:
M – 15.03 kg / 33.14 lbs (with TLR sealant, no tubes)

Weight limit:
Maximum total weight (bike + rider + cargo) 136 kg / 300 lb
