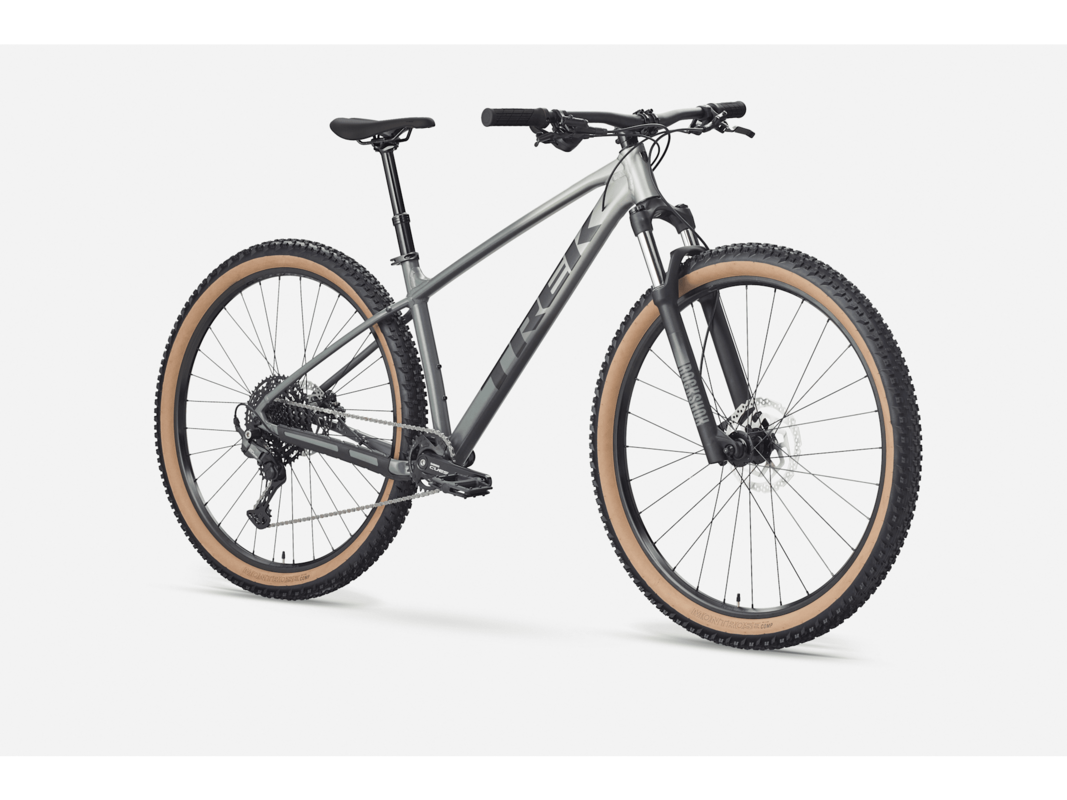

Trek Marlin 6 Gen 3 – Green

Frame:

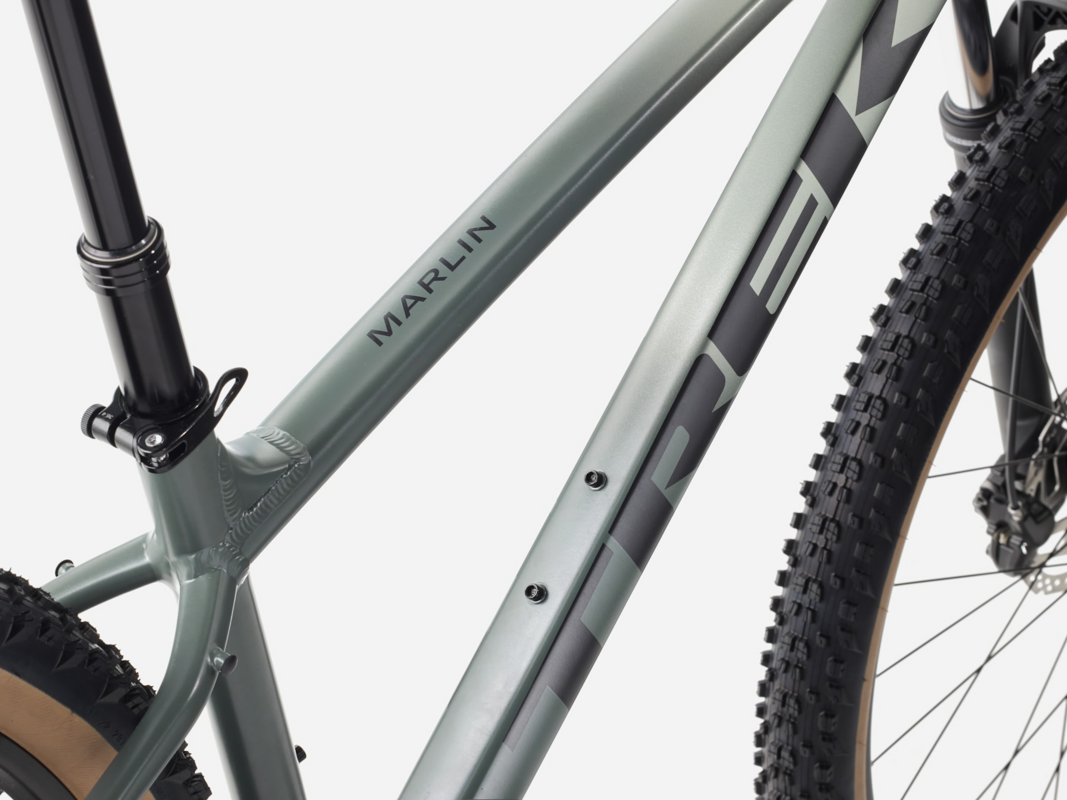

XS – Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135 × 5 mm ThruSkew
S, M, ML, L, XL, XXL – Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135 × 5 mm ThruSkew

Fork:
XS – SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset, 27.5″, 100 mm QR, 80 mm travel
S – SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset, 27.5″, 100 mm QR, 100 mm travel
M, ML, L, XL, XXL – SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset, 29″, 100 mm QR, 100 mm travel

Front hub:
Formula DC-20, alloy, 6-bolt, 100 × 5 mm

Front skewer:
Trek Thru-Skew

Rear hub:
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135 × 5 mm

Rear skewer:
173 × 5 mm QR

Rim:
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve

Spokes:
14 g stainless steel, black

Tyre:
XS, S – Bontrager Montrose Comp, wire bead, 30 tpi, 27.5 × 2.40″
M, ML, L, XL, XXL – Bontrager Montrose Comp, wire bead, 30 tpi, 29 × 2.40″

Shifter:
Shimano U4000, 9-speed

Rear derailleur:
Shimano CUES U4000

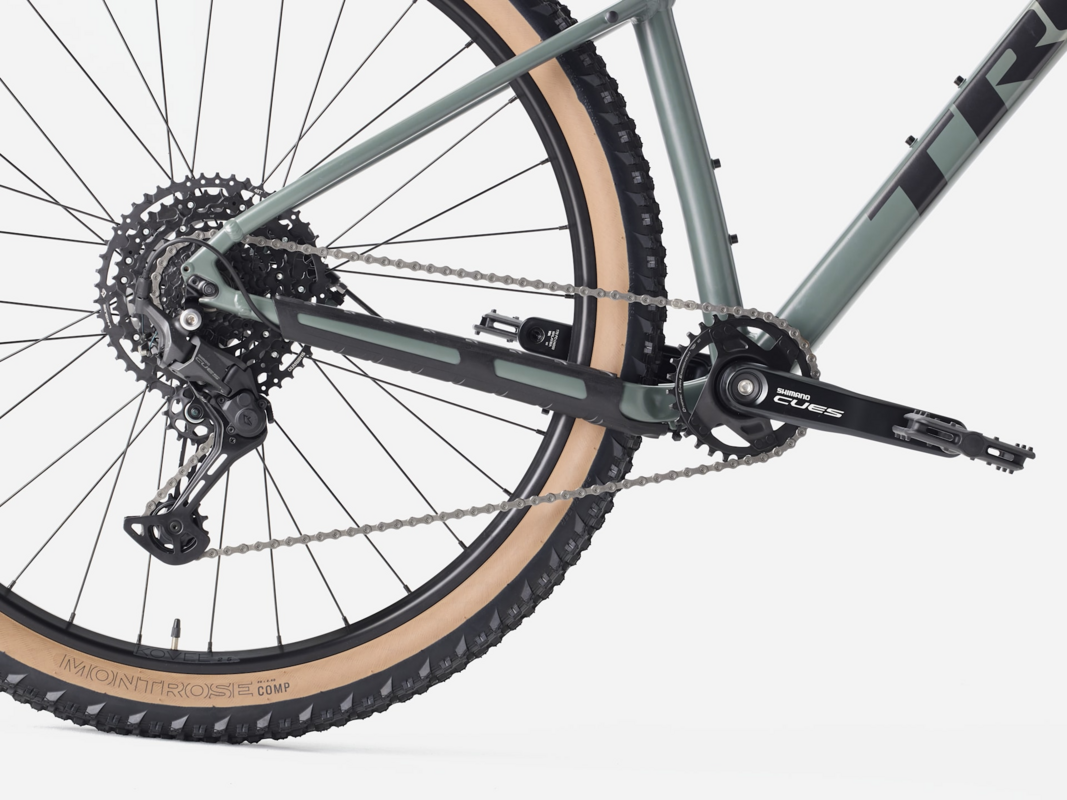

Crank:
XS, S, M, ML – Shimano CUES U4001, 32T, 52 mm chainline, 170 mm
L, XL, XXL – Shimano CUES U4001, 32T, 52 mm chainline, 175 mm

Bottom bracket:
Shimano, 73 mm, threaded cartridge, 122.5 mm spindle

Cassette:
Shimano LINKGLIDE LG300, 11–46, 9-speed

Chain:
Shimano LG500

Pedals:
VP-536, nylon platform

Saddle:
Bontrager Verse Short, stainless steel rails

Seatpost:
XS, S, M – Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm
ML, L, XL, XXL – Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm

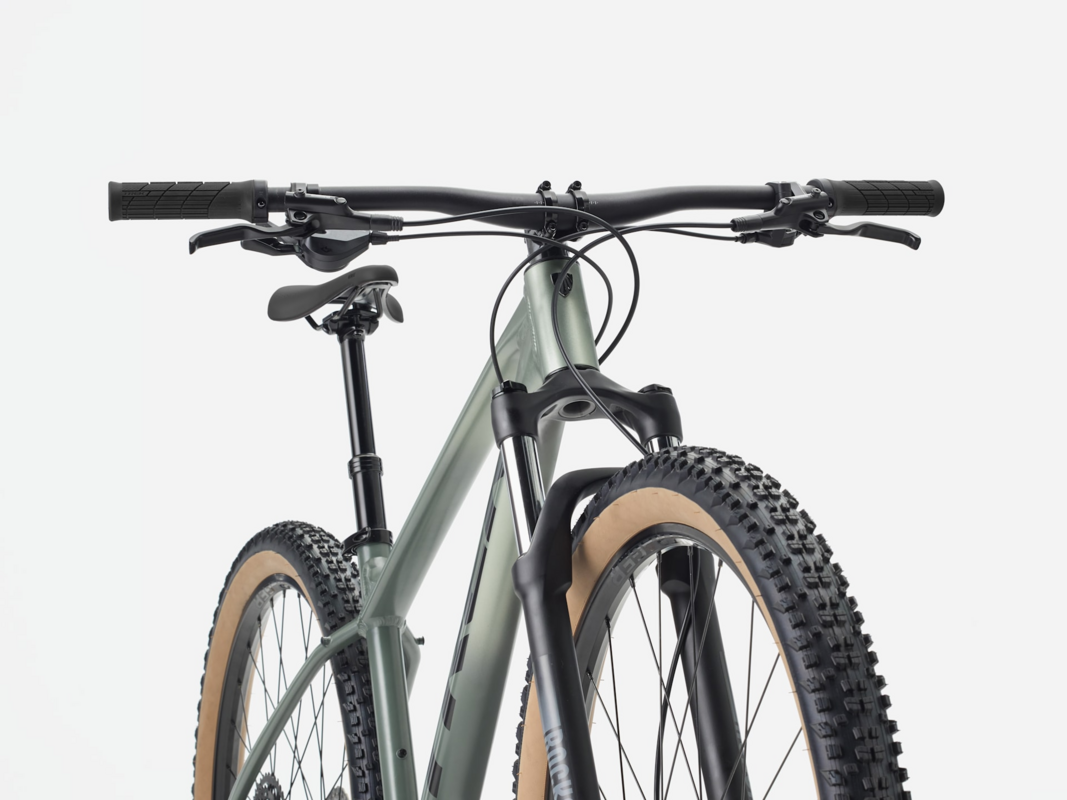

Handlebar:
XS – Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm
S – Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm
M, ML, L, XL, XXL – Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm

Grips:
Trek Line Comp, nylon, lock-on

Stem:
XS, S – Bontrager Comp, 31.8 mm, 7°, 35 mm
M, ML, L – Bontrager Comp, 31.8 mm, Blendr compatible, 7°, 50 mm
XL – Bontrager Comp, 31.8 mm, Blendr compatible, 7°, 60 mm
XXL – Bontrager Comp, 31.8 mm, Blendr compatible, 7°, 70 mm

Headset:
Semi-integrated, 1-1/8″

Brakes:
Shimano MT200, hydraulic disc

Brake rotors:
XS, S, M, ML, L, XL, XXL – Shimano RT26, 6-bolt, 160 mm
M, ML, L, XL, XXL – Shimano RT26, 6-bolt, 180 mm

Weight:
M – 15.10 kg / 33.29 lb

Weight limit:
Maximum total weight (bike + rider + cargo) 136 kg / 300 lb
