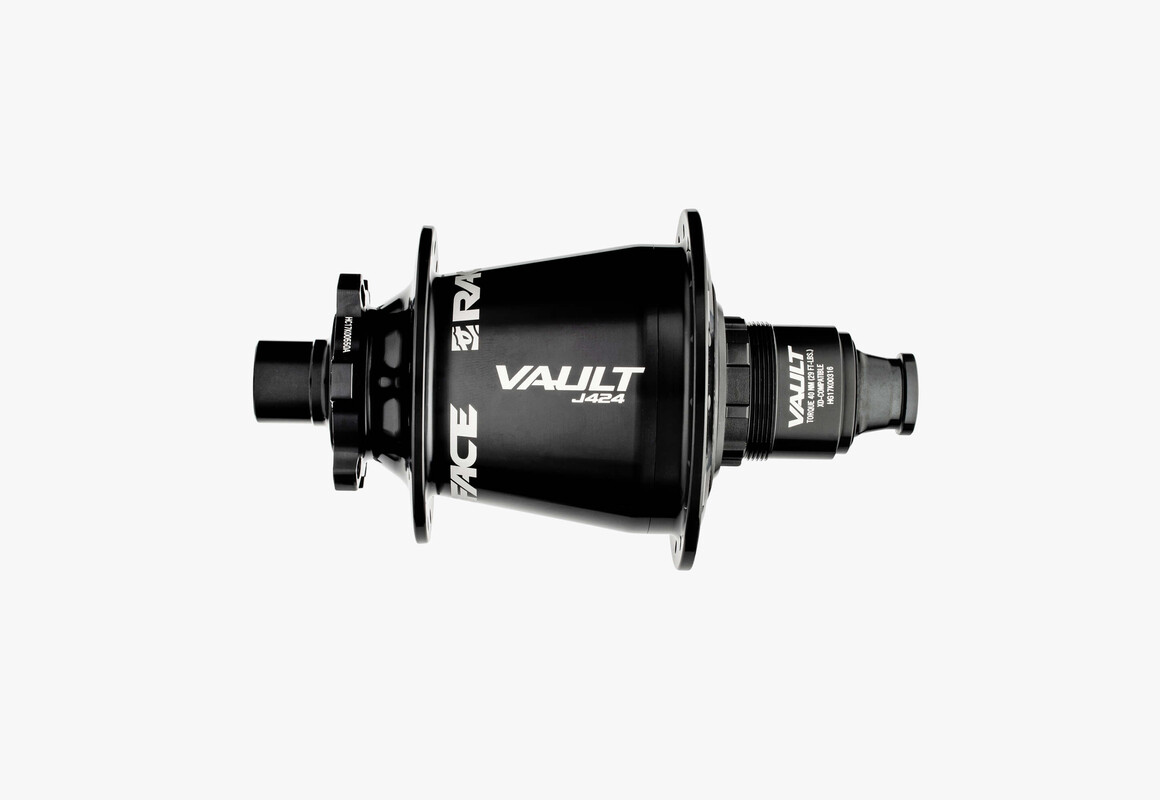

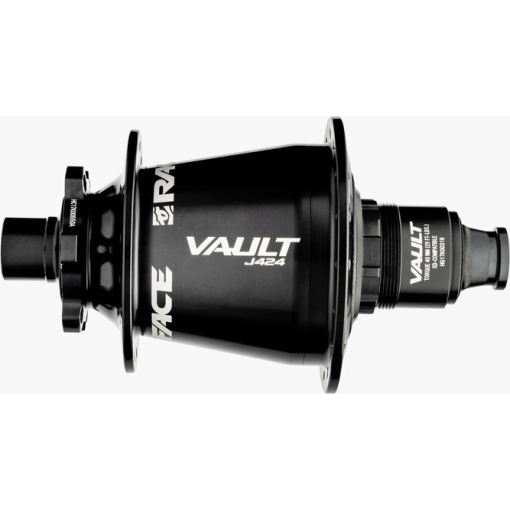

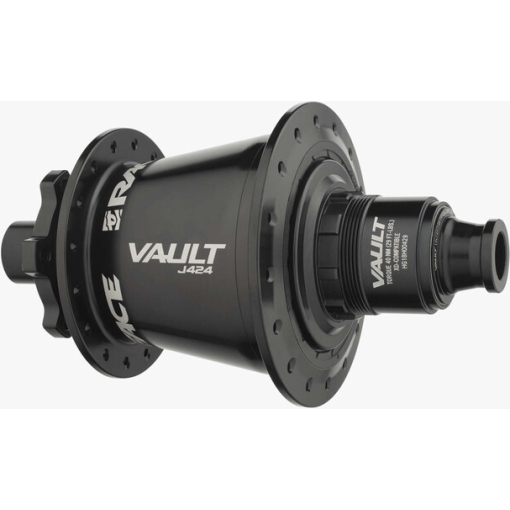

Race Face Vault Rear hub, 12×148 XD, Black

The Vault hub offers ultra-fast engagement, now available for your custom wheel builds. With both Boost and non-Boost options, a range of axle standards, and compatibility with Shimano or XD cassette bodies, it’s perfect for mountain bikers and e-bike enthusiasts alike. Its oversized hub shell boosts torsional and lateral stiffness, while the high-quality 6902 bearings, known for their durability and large ball diameter, ensure long-lasting performance.

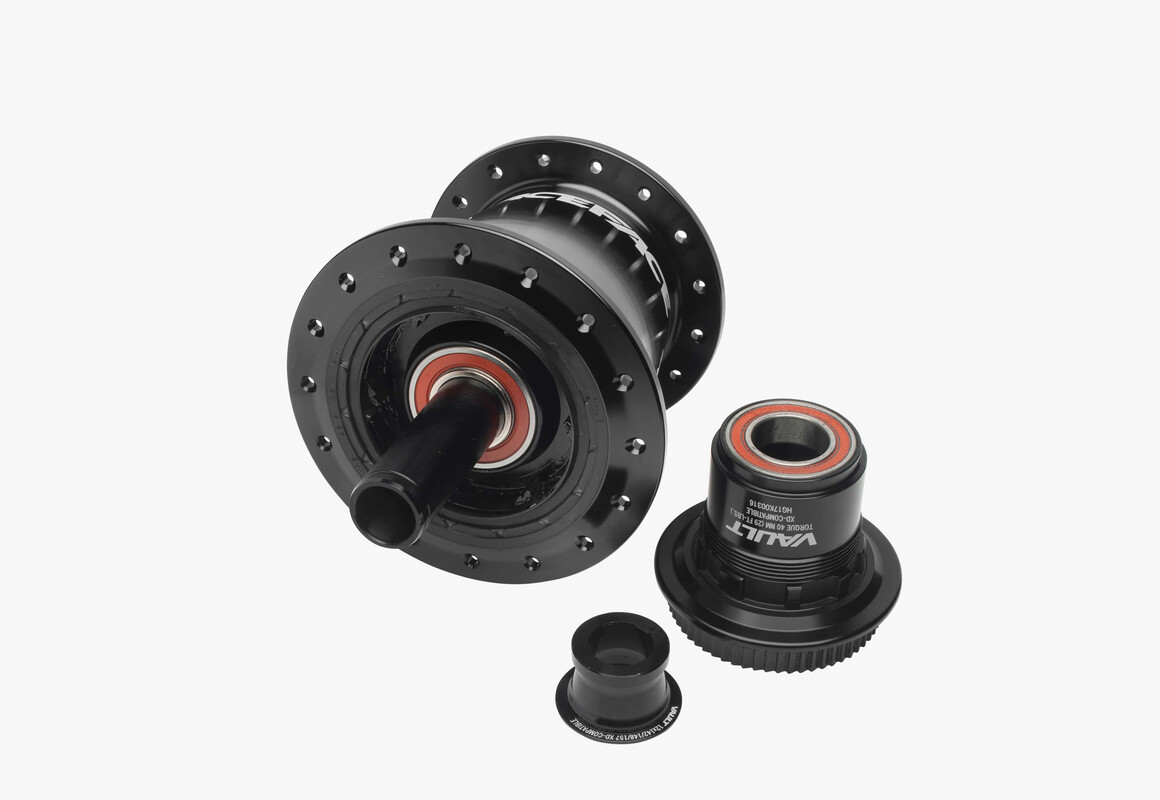

This hub features a 60-tooth drive ring that alternately engages six double-tooth pawls, providing a quick 3° engagement for almost instant power transfer. The strategically placed wide bearings reduce load, enhancing bearing lifespan. Additionally, low-drag labyrinth seals protect the internal components, minimizing friction and ensuring smooth performance. Tool-free endcap swaps make maintenance easy, ensuring your hub not only performs faster but adapts to your needs with ease.
Features
• Available in Boost and Non-Boost configurations
• Compatible with Shimano or XD cassette bodies
• 6 pawls with 2 teeth each
• 120 points of engagement, offering 3° responsiveness
Specifications
• Built for: XC, Trail, Enduro, and DH riding
• Available axle configurations:
o Front: 15×110 Boost, 15×110 Torque Cap, 15×100, 15×100 Torque Cap, 20×110, 9x100QR
o Rear: 12×148 Boost, 12×150, 12×157, 12×142, 12×135, 10x135QR
• Cassette body options: Shimano HG, Micospline or XD Compatible
• Weight: 177g front, 305g rear (lightest configuration)
• Spoke holes: 32, with 28-hole Boost option available.
