Race Face Arc30 Heavy duty 27.5″ rim - Image 2

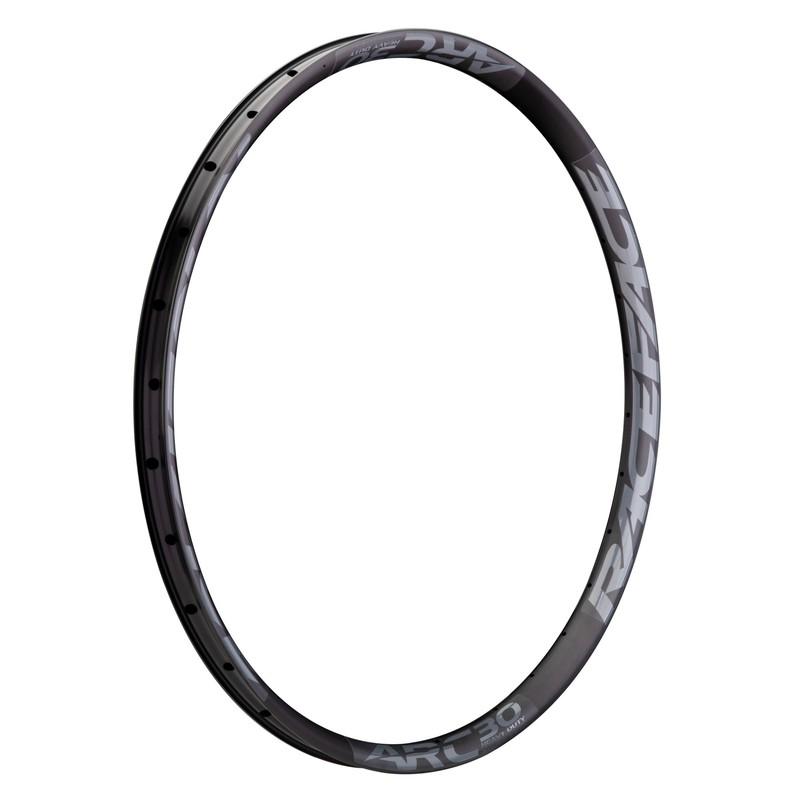

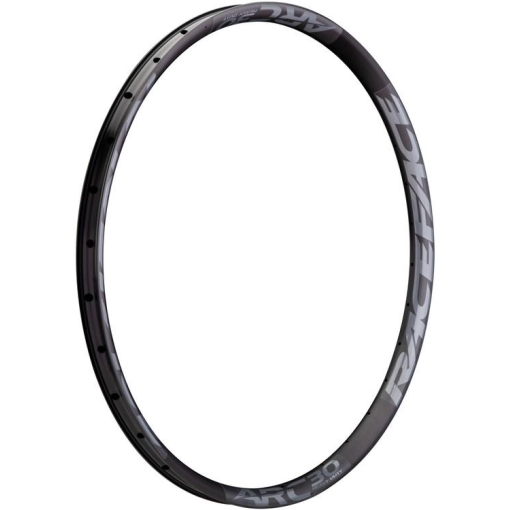

Race Face Arc30 Heavy duty 27.5″ rim

120,00€

Made To Take The Hits
We applied all of our collective expertise to make this DH-focused rim tougher, stiffer, and better balanced than anything else on the track. The asymmetrical design ensures perfect spoke tension, while the 6069 alloy delivers an impressive strength-to-weight ratio.

In stock & ready to ship

With a redesigned rim profile, the new ARC Offset rims utilize an asymmetrical design to optimize spoke tension balance, wheel durability and wheel stiffness. New 6069 Alloy provides a superior strength to weight ratio over our previous generation of ARC, significantly improving toughness. And now with our new 30mm wide Heavy Duty rim at 22mm deep, we have a rim size and width option for every tyre and every riding style. Our tubeless ready bead and offest design mean these rims are ready to hit any trail with confidence.

Features:
Tubeless ready, strong tyre retention bead.
New 30mm Heavy Duty for gravity and e-bike applications.

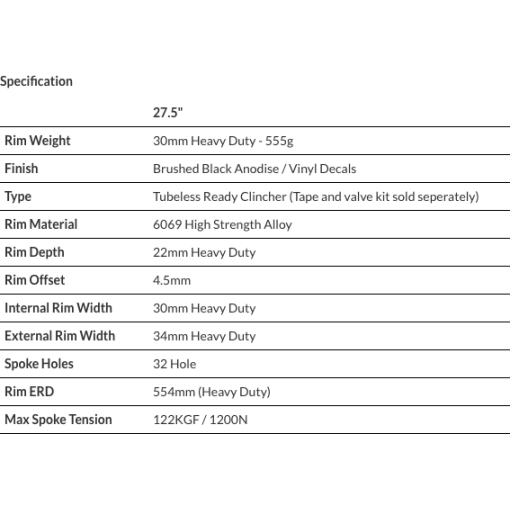

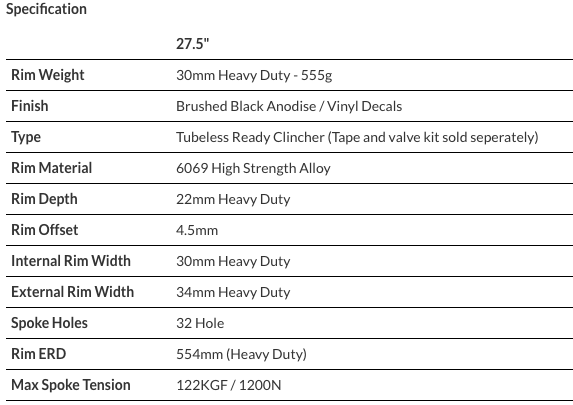

Material: 6069 aluminum
Available Diameters: 27.5″, 29″
Available Internal Rim Width: 30 mm
Available Spoke Count: 32
Tubeless Ready: Yes
Rim ERD: 558 mm (27.5″ rim) / 596 mm (29″ rim)
Rim Height: 22 mm
Rim Offset: 4.5 mm
Ext Rim Width: 34 mm
Weight: 27.5″ = 565g / 29″ = 601g
