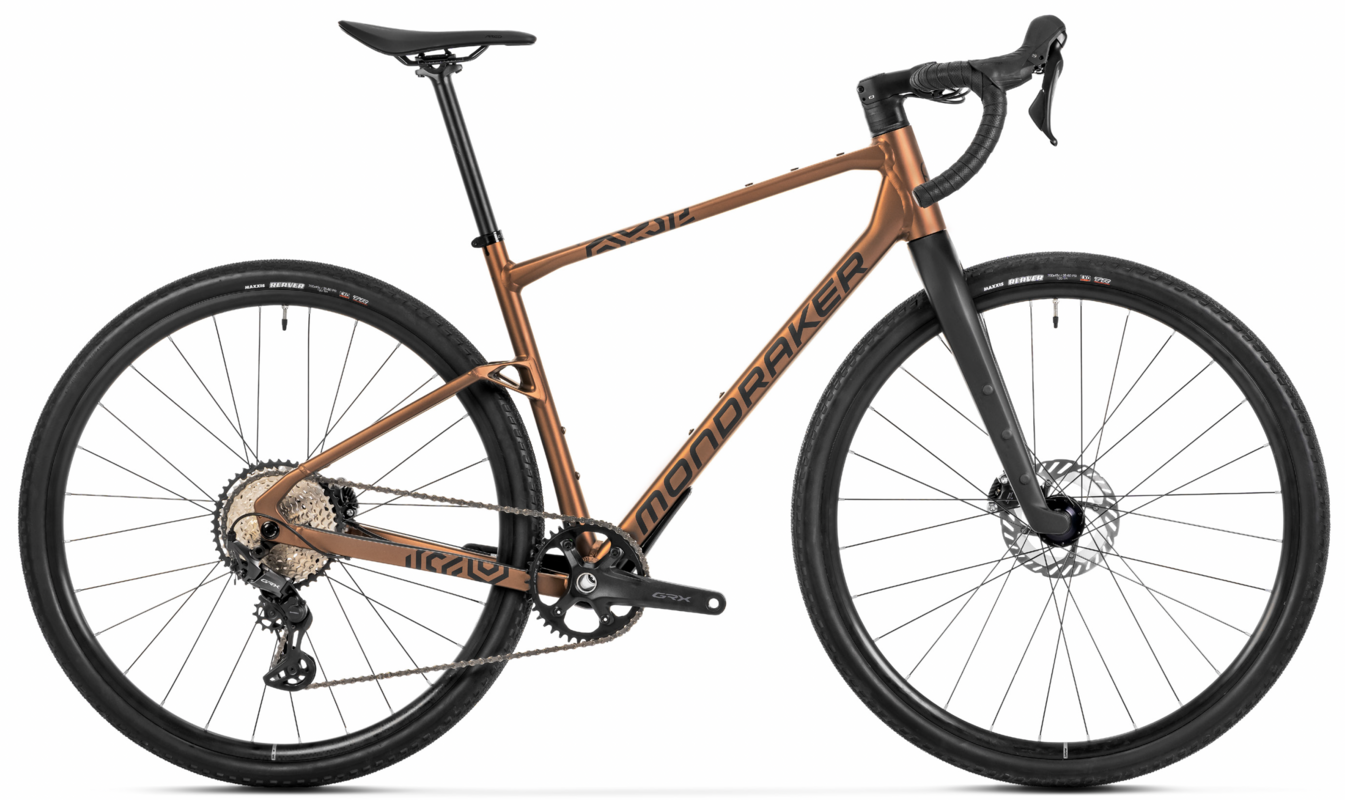

Mondraker Arid

With ample tire clearance, modern standards like flat-mount disc brakes and thru-axles, and with
multiple mounting points, it’s ready for everything from epic bikepacking trips to even some occasional gravel races.
Experience lightweight performance, proven Mondraker Stealth Alloy EVO frame construction and all-day comfort-without the premium price tag.

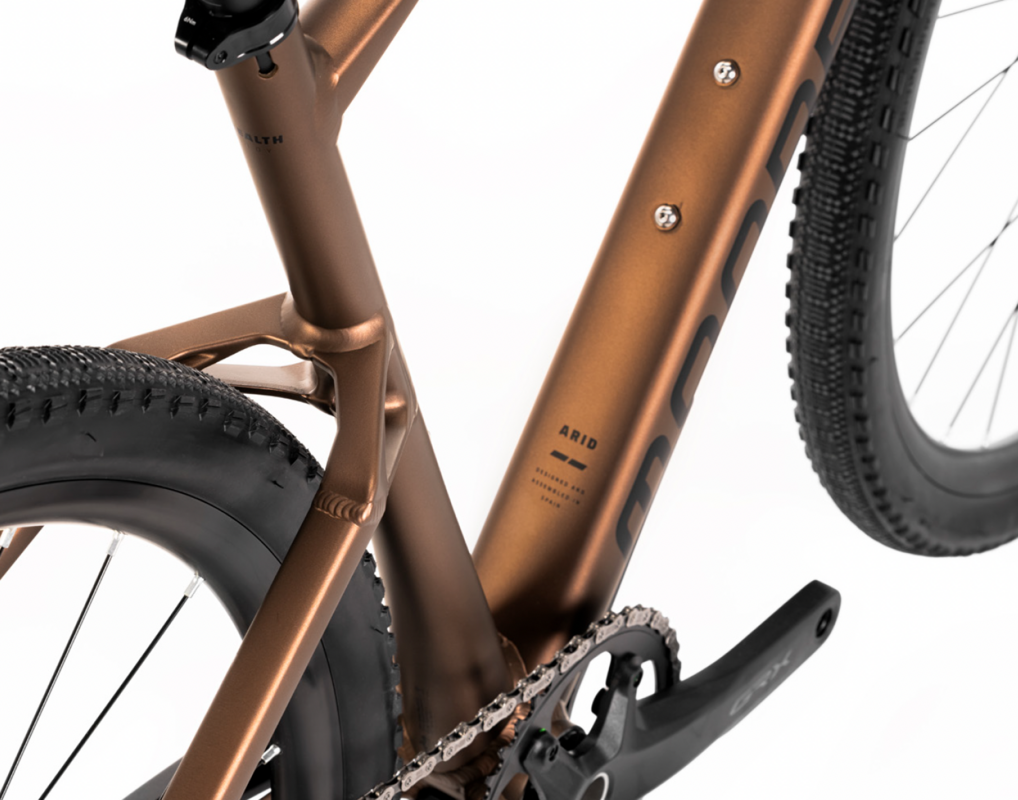

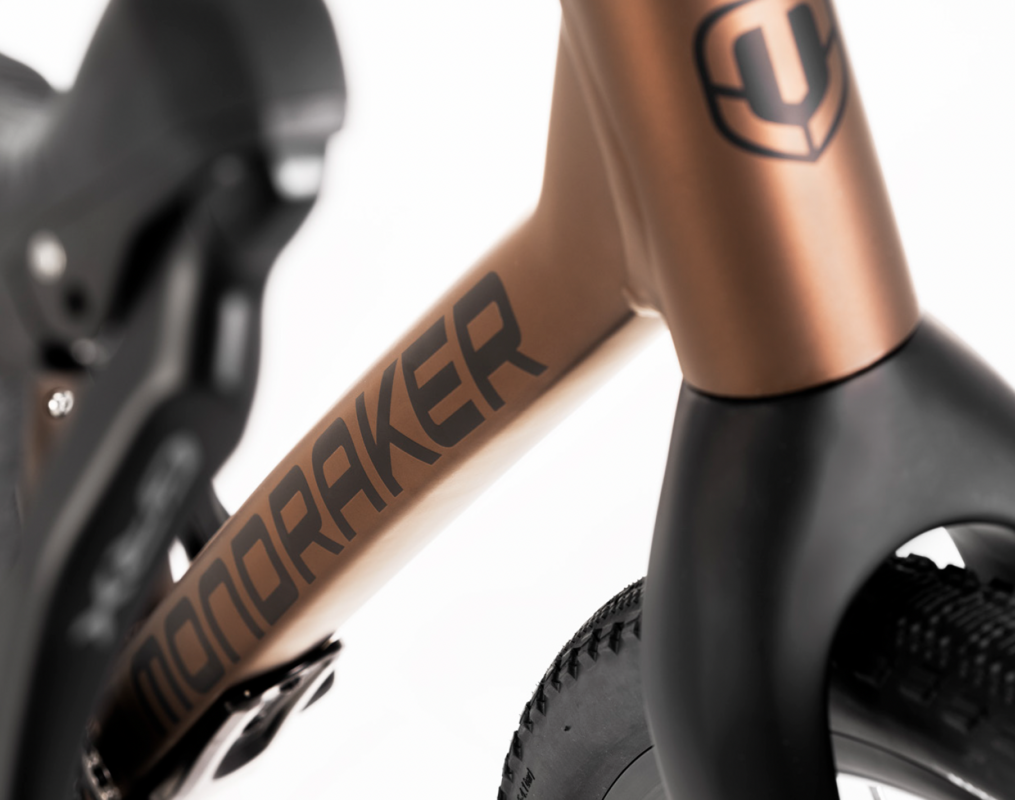

FRAME : Arid 6061 Alloy Stealth Evo, hydroformed tubing, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible

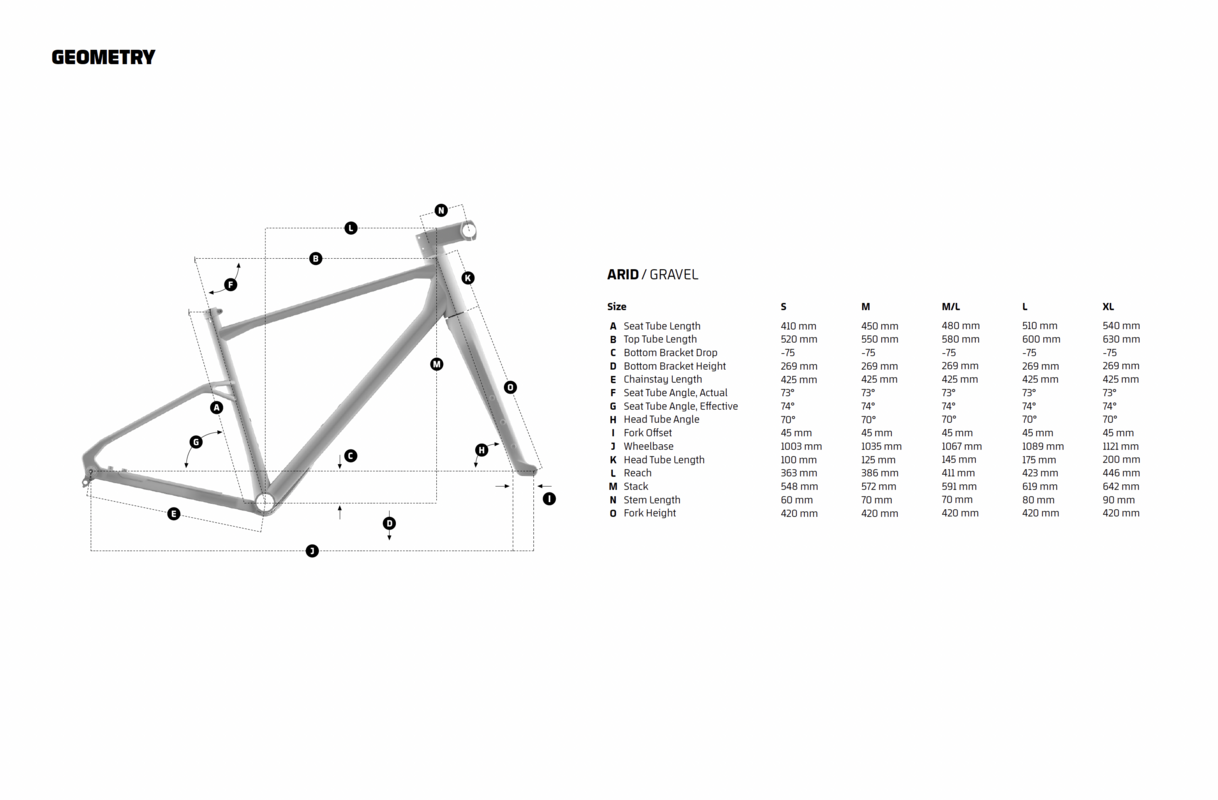

SIZES : S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
FORK : Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
HEADSET : Onoff IS52/IS52, 1-1/8”, 1.5” head tube, sealed bearings, Internal cable routing
STEM : Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
HANDLEBAR : OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
GRIPS : OnOff HEX Bartape
SEATPOST : Onoff S3 0-R, diameter 27,2mm, length 400mm
SADDLE : FIZIK Vento Argo X5 140mm
FRONT BRAKE : Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
REAR BRAKE : Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
BRAKE LEVER : Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever
RIMS : Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokes rear
SPOKES : Mavic Steel double butted flat spokes
FRONT HUB : Mavic, 12x100mm, Centerlock
REAR HUB : Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, MS Freehub

FRONT TIRE : Maxxis Reaver 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
REAR TIRE : Maxxis Reaver 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
CRANKSET : Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7
RINGS : Shimano 40T, direct mount, steel
BOTTOM BRACKET : Token T47 BSA sealed bearings, 85,5mm
CHAIN : Shimano SLX M7100, Quick link
REAR DERAILLEUR : Shimano GRX RX-822-GS, 12s
SHIFT LEVERS : Shimano GRX RX-610 dual control, alloy lever
CASSETTE : Shimano SLX M7100, hiperglide+,10-45, 12s
DERAILLEUR HANGER : M078
