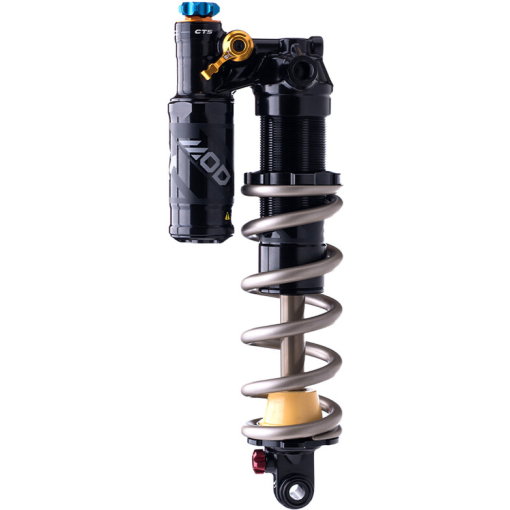

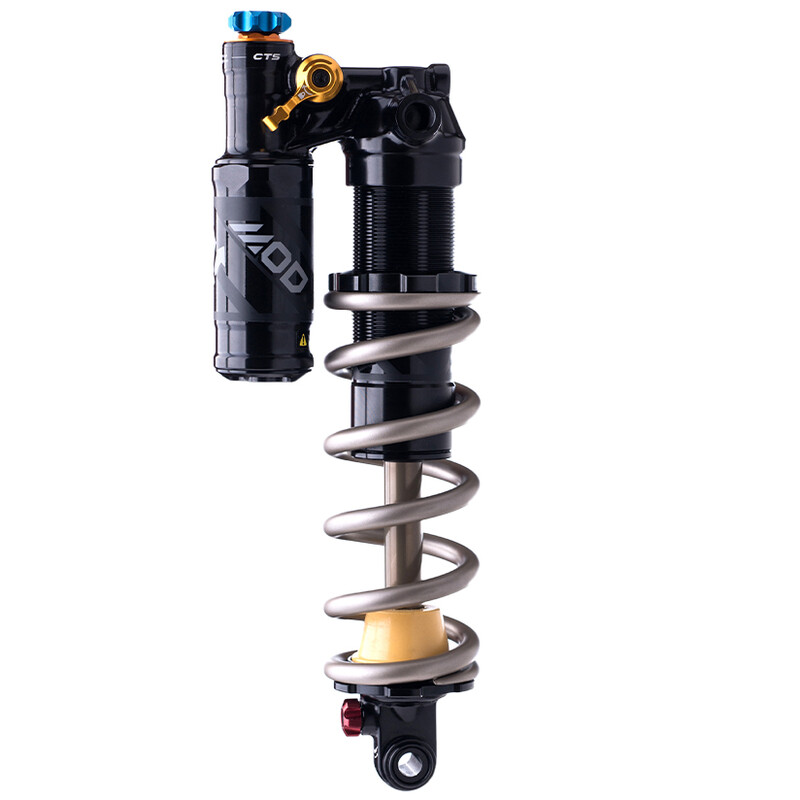

Formula MOD Coil Shock Trunnion (W/O SPRING)

The Mod has an unconventional design that, thanks to the CTS (Compression Tuning System) technology, will allow every rider to fine-tune the rear suspension simply and effectively. The High Flow design of the damping allows for uncompromising reliability. Thanks to its large-volume bladder, the Mod manages to have very low friction and excellent small bump compliance.

Someone said that today’s modernity will be tomorrow’s tradition. If you’re trying to maximize the fun-factor on the trail, and if thinking out of the box is something you relate to, then the Mod is exactly the shock you are looking for.

SIZES
Standard 210x 55, 52.5, 50, 47.5 – 230x 65, 62.5, 60, 57.5
Trunnion 185x 55, 52.5, 50, 47.5 – 205x 65, 62.5, 60, 57.5

ADJUSTMENTS
Compression 17 Click Adjustment
Rebound 13 Click Adjustment
CTS Gold, Orange and Green valves included
Compression Switch Two position – Open, Firm
Coil spring Preload

HARDWARE
Sizes (mm)20×8, 22×8, 25×8, 30×8, 35×8, 40×8, 22×10, 25×10, 30×10

WEIGHT
210×55 with 300 coil spring 670g
