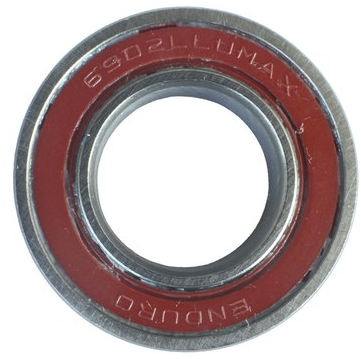

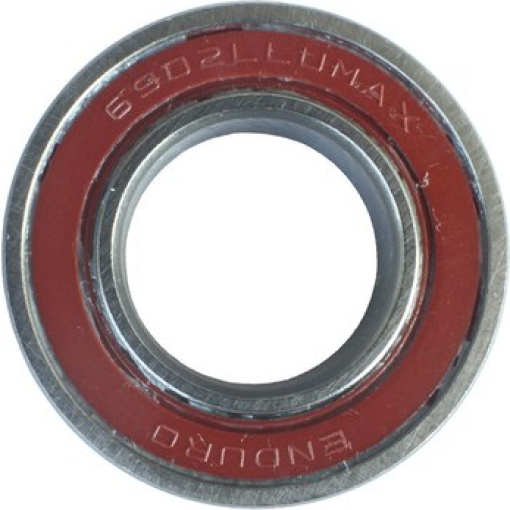

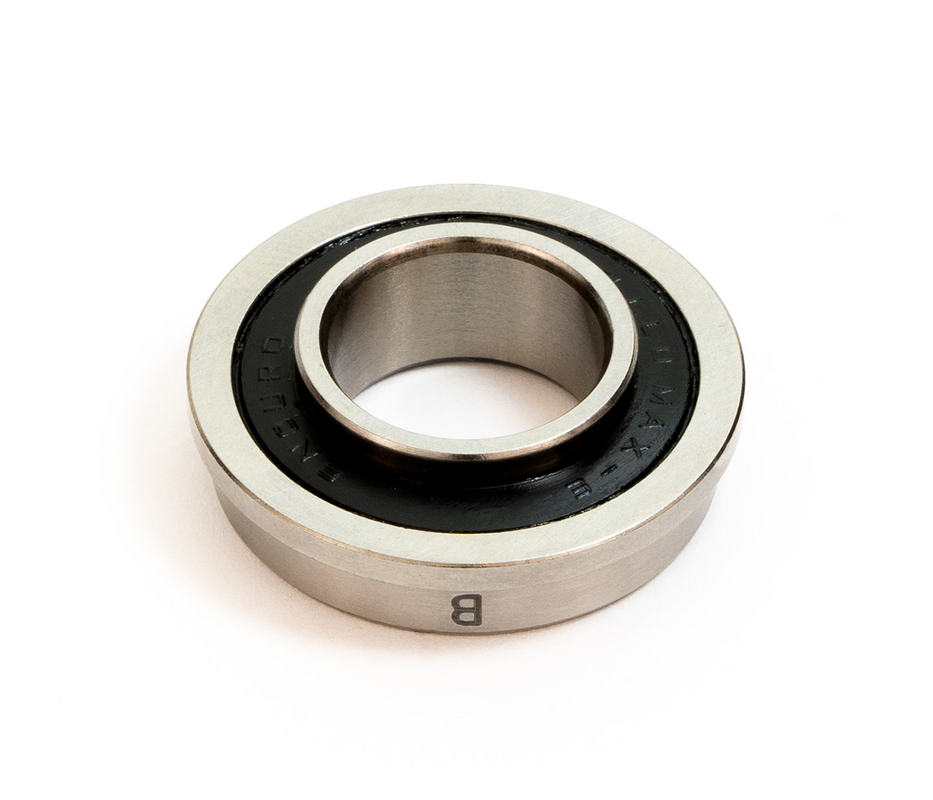

F6902 LLU MAX-EB – Flanged, Extended Race, Radial Bearing – 15mm x 28mm x 7/9.5mm Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The flanged design ensures precise insertion into through-holes in swing-arms and suspension linkages while the extended inner race eliminates the need for extra spacers to connect suspension linkages. This bearing has been used as a suspension pivot bearing by Yeti bikes. The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
| Model | 6902F |
|---|---|
| Width | 7/9.5 |
| Material | Steel |
| Inner hole diameter | 28mm |
| Outer hole diameter | 28mm |
| Brand | Enduro |
| Standard | MAX Radial – LLU (Frame bearing) |
| Size | 15x28x7/9,5 |
| Mounting | F – Flanged Bearing & E – Extended Inner Race |
| Tire Construction | MAX Radial |
| Protection | LLU |
| EAN | 811780022164 |
| Manufacturer's code | BB F6902 LLU MAX-EB-bag |
