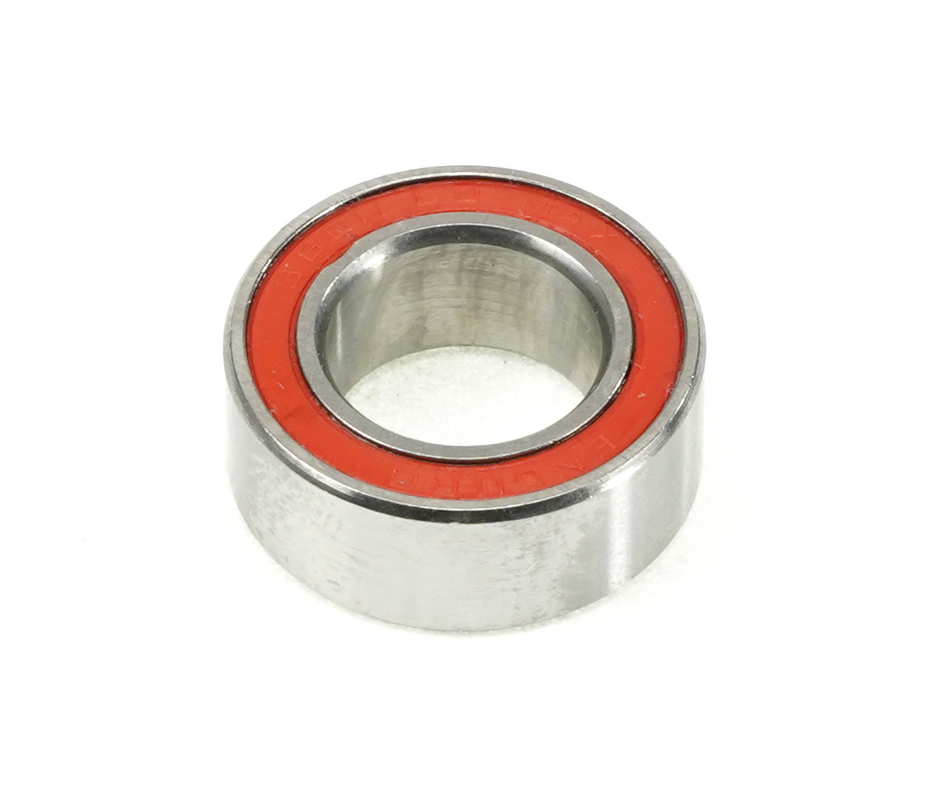

Enduro Bearings 3801 – 12x21x8

3801 LLU MAX – MAX-Design, Double-Row, Angular-Contact Suspension Bearing – 12mm x 21mm x 8mm – Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard Angular-Contact bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The extra-wide double-row design greatly reduces flex in the suspension linkage while doubling the bearing contact area. This bearing has been used as a suspension pivot bearing by Trek and Devinci. The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide long life and superior protection against the elements. Static load – 818lbf / 3.64kN Weight – 10.4g
