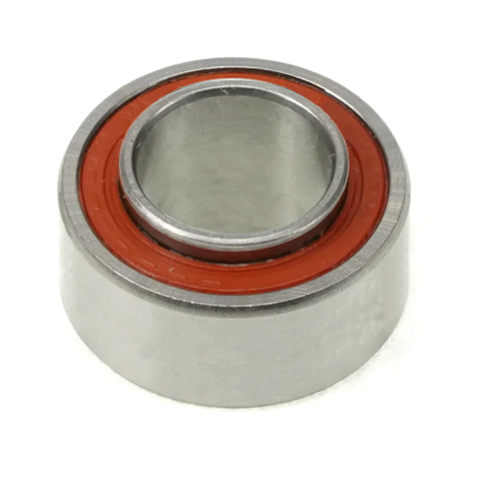

DR 10177 2RS MAX – MAX-Design, Double Row, Angular-Contact Suspension Bearing – 10mm x 17mm x 6/7mm – Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. These bearings have 35-40% more load capacity than standard Angular-Contact bearings. We accomplish this with a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and dual rubber seals for superior protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. The extra-wide double-row design greatly reduces flex in the suspension linkage while doubling the bearing contact area. This bearing has primarily been used as a suspension pivot bearing, though it has been used in rear hubs occasionally. The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements. Static load – 472lbf / 2.10kN Weight – 5.45g
| Brand | Enduro |
|---|---|
| Size | 10x17x6/7 |
| Model | 10177 |
| Material | Steel |
| Standard | MAX Radial – 2RS (Frame bearing) |
| Tire Construction | MAX Radial |
| Protection | 2RS |
| Width | 6/7mm |
| Inner hole diameter | 10mm |
| Outer hole diameter | 17mm |
| EAN | 811780022140 |
| Manufacturer's code | BB DR 10177 2RS MAX-blk |
