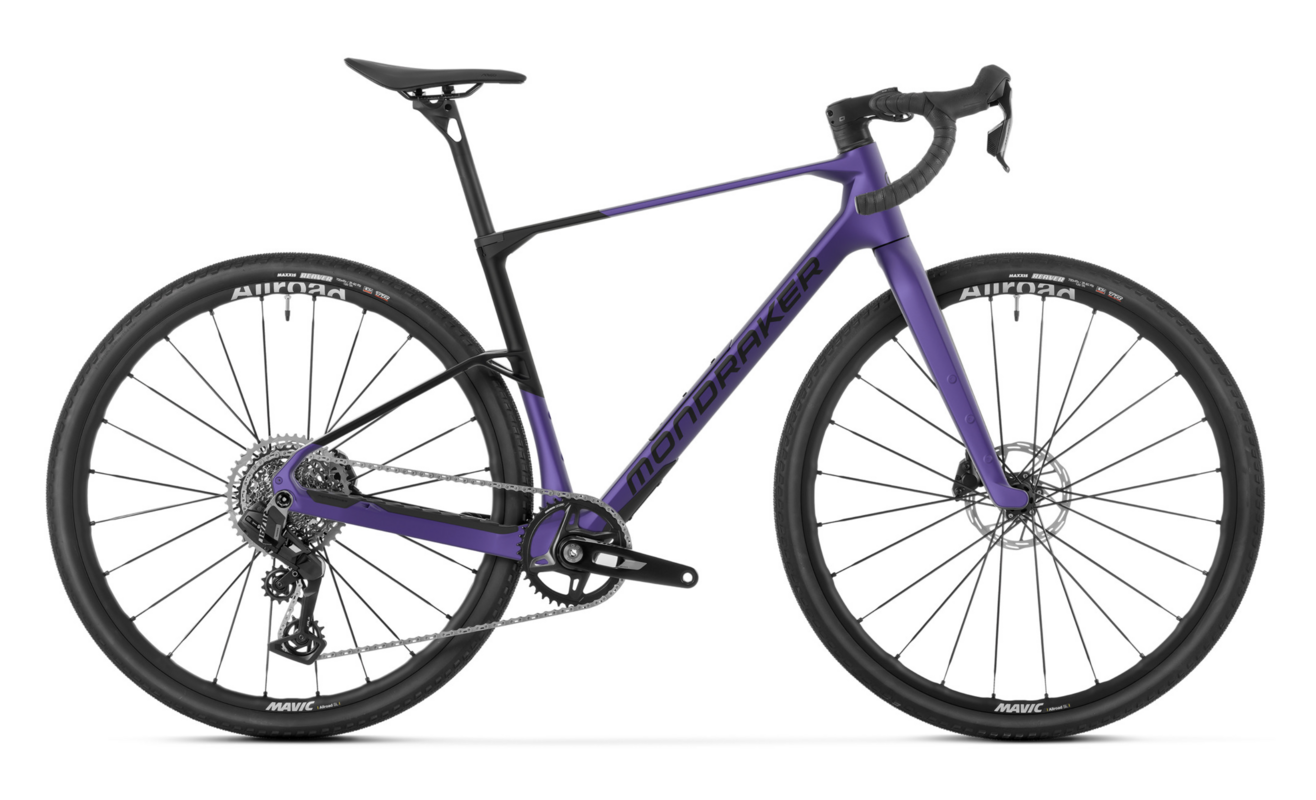

Mondraker Arid Carbon R – Purple

Arid Carbon R on hiilikuiturungolla ja langattomilla Sram Rival AXS 1×13 -sähkövaihteilla varustettu gravel-pyörä vaativalle kuskille tai kisakäyttöön.

Kevyt ja suorituskykyinen kokonaisuus on viimeistelty hiilikuituisella ohjaustangolla ja satulatolpalla, jotka myös vaimentavat tienpinnan epätasaisuuksista välittyvää tärinää.

Frame
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.

Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

Fork
Stealth Air Carbon tapered steerer tube, HHG, flat mount integrated fork

Headset
Onoff IS52/IS52, 1-1/8″, 1.5″ head tube, sealed bearings, internal cable routing

Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°

S size: 60mm

M size: 70mm

ML size: 70mm

L size: 80mm

XL size: 90mm

Handlebar
Onoff S9 GR CARBON, 16º bar flare
S: 420mm
M: 420mm
ML: 440mm
L: 460mm
XL: 460mm

Grips
Onoff HEX Bartape

Seatpost
Onoff S9 Carbon 15-R, diameter 27.2mm
S: 400mm
M: 400mm
ML: 400mm
L: 450mm
XL: 450mm

Saddle
Fizik Vento Argo X5 140mm

Front brake
Sram Rival AXS HRD, 2-piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

Rear brake
Sram Rival AXS HRD, 2-piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

Brake lever
Sram Rival, tooled reach adjust, carbon brake lever

Rims
Mavic Allroad SL, UST, 25mm internal width, hookless, infinity hubs, 24 spokes

Spokes
Mavic Steel double butted flat spokes

Front hub
Mavic, 12x100mm, IS 6 bolts

Rear hub
Mavic Infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, XDR Freehub

Front tire
Maxxis Reaver 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

Rear tire
Maxxis Reaver 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

Crankset
Sram Rival XPLR AXS, DUB WIDE axle

S: 165mm
M: 165mm
ML: 170mm
L: 172.5mm
XL: 172.5mm
CL 47.5

Rings
Sram 40T direct mount, alloy, narrow-wide

Bottom bracket
Sram DUB T47 BSA, sealed bearings, 85.5mm

Chain
Sram Rival, Flattop, 13s, Powerlock

Rear derailleur
Sram Rival XPLR AXS, 13s

Shift levers
Sram Rival AXS HRD, 13s

Cassette
Sram XG-1351, 10-46T, 13s

Weight
8.9 kg
