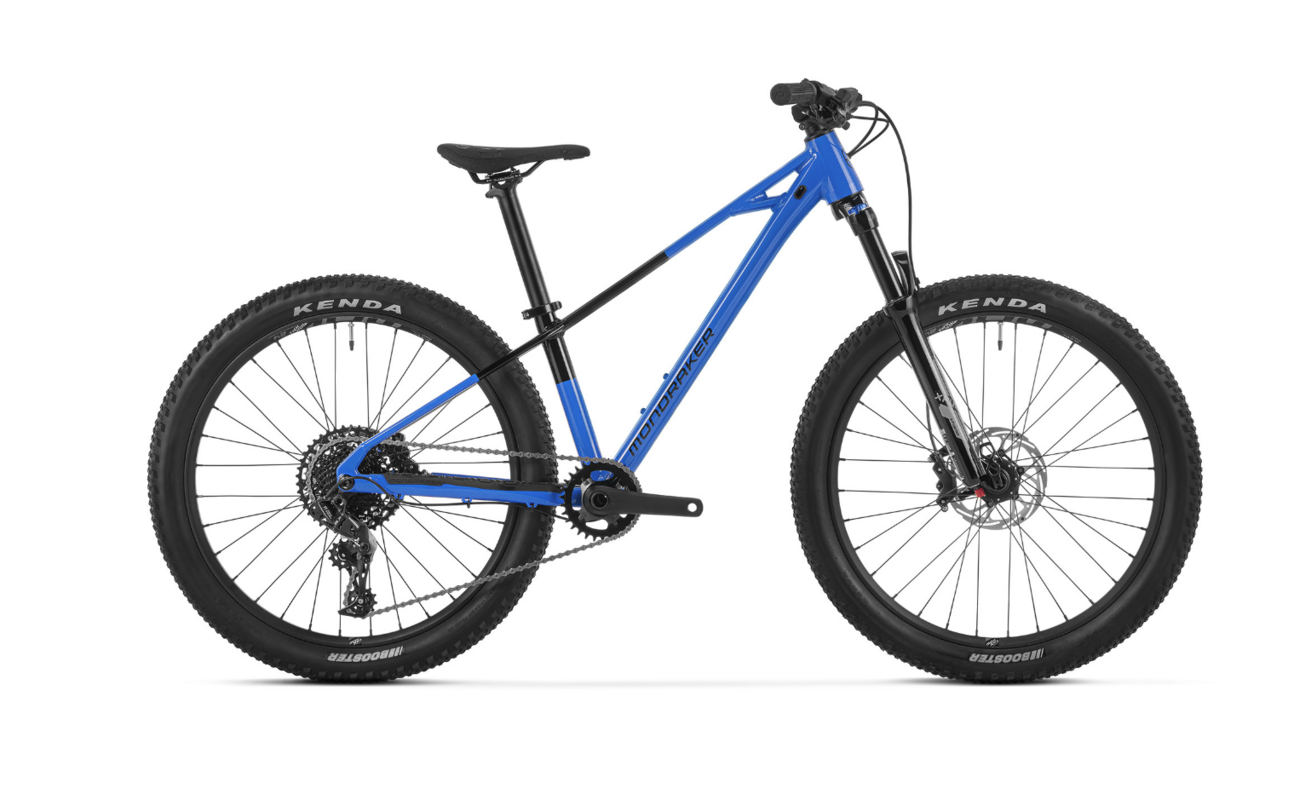

Mondraker Trick 24

The new Trick rewrites everything compared to the old Leader, as this year brings a fresh new frame design with a design language clearly influenced by our high-end adult bikes. Minimalistic frame tubes, straighter lines, and details such as the top tube flowing into the seat stays in an almost straight line, and nothing says ‘Mondraker’ more than the ‘window’ between the top tube, the down tube and the headtube now featured on the Trick too.

All the frames are made from Alloy Stealth Evo and our Forward Geometry has been 100% tweaked to best suit kids’ needs. Internally guided cable routing is featured, as is 12x142mm rear hub spacing, a UDH mech hanger and 2.4” tyres. This tyre width is fundamental as it makes a huge difference to the grip available on tricky terrain, thus increasing confidence, and allows for lower tyre pressures in general to aid with comfort and control.

Frame
Trick 24 6061 Alloy Stealth Evo, HHG internal cable routing, internal headset, replaceable hanger, BSA bottom bracket, 12x142mm rear axle, UDH

Sizes
One size – 310mm

Fork
X-Fusion Velvet RL 26, 100mm travel, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload

Headset
Onoff ZS44/ZS56, 1-1/8″–1.5″ head tube, ACB sealed bearings
Top: 42x30x7 (45ºx45º)
Bottom: 52x40x8 (45ºx45º)

Stem
MDK XC, 6061 forged alloy, 25.4mm barbore, 0º rise, 40mm length

Handlebar
MDK XC 1.0, 6061 alloy, 25mm rise, 650mm width, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips
Onoff Beehive, single lock-on, 135mm

Seatpost
MDK XC, 6061 T6 alloy, 31.6mm diameter, 300mm length, 0mm offset

Saddle
SDG Fly JR

Front Brake
SRAM DB4, 4-piston caliper, Onoff CNC 160mm IS 6-bolt two-piece rotor, steel-backed organic pads

Rear Brake
SRAM DB4, 4-piston caliper, Onoff CNC 160mm IS 6-bolt two-piece rotor, steel-backed organic pads

Brake Lever
SRAM DB4, tool reach adjust, lever pivot bushings

Rims
MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes

Spokes
CN round stainless steel

Front Hub
DA210FS02, 15x100mm, sealed bearings, IS 6 bolts

Rear Hub
DA210RSRA01, 12x142mm, sealed bearings, IS 6 bolts, HG freehub

Front Tire
Kenda Booster 24×2.4, single compound, 30TPI, wire bead

Rear Tire
Kenda Booster 24×2.4, single compound, 30TPI, wire bead

Crankset
Samox DM, 30T steel, 127mm

Chainring
30T, steel

Bottom Bracket
BSA, 73mm

Pedals
SDG Slater JR

Chain
SRAM PC1110, 11s, PowerLock

Rear Derailleur
SRAM NX, 11s, long cage, X-Actuation 1:1

Shift Levers
SRAM NX trigger, 11s, X-Actuation 1:1

Cassette
SRAM PG-1130, 11–42T, 11s

Derailleur Hanger
UDH

Weight
11.7 kg
