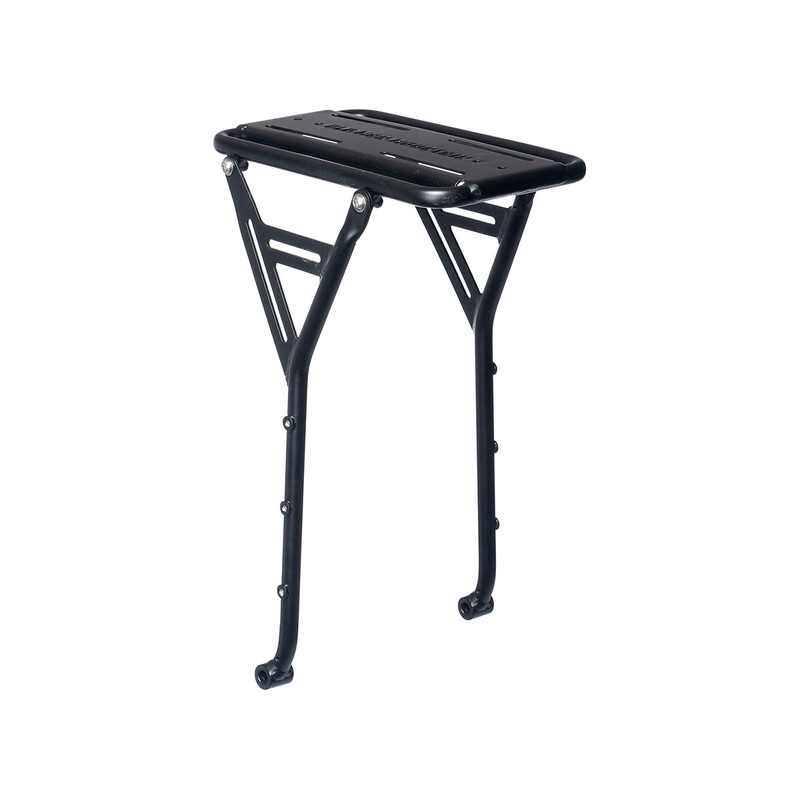

Old Man Mountain Elkhorn Rack – Short

Specifications and sizes:
The Elkhorn is available in two sizes (Short and Tall) so you can fit it to bikes with different wheel sizes:

Short: Designed for 27.5″ and 700c wheels. Fits tyres up to 27.5 x 2.8″ or 700c x 50 mm. Height from mounting point to top deck is 371 mm.

Tall: Designed for 29″ wheels and bikes that need plenty of clearance. Fits tyres up to 29 x 3.25″. Height from mounting point to top deck is 403 mm.

Tip: When fitting the rack, make sure there is enough clearance between the tyre and the rack for mud and debris picked up along the way.

Features:

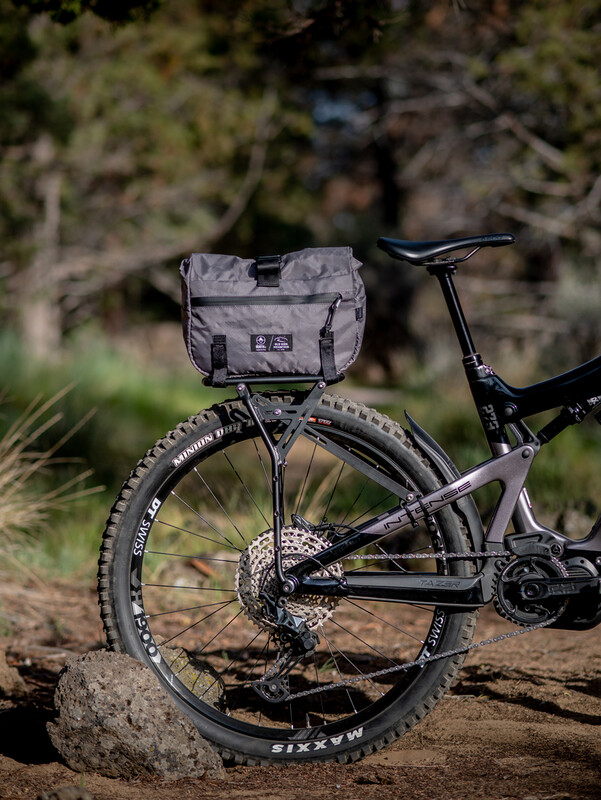

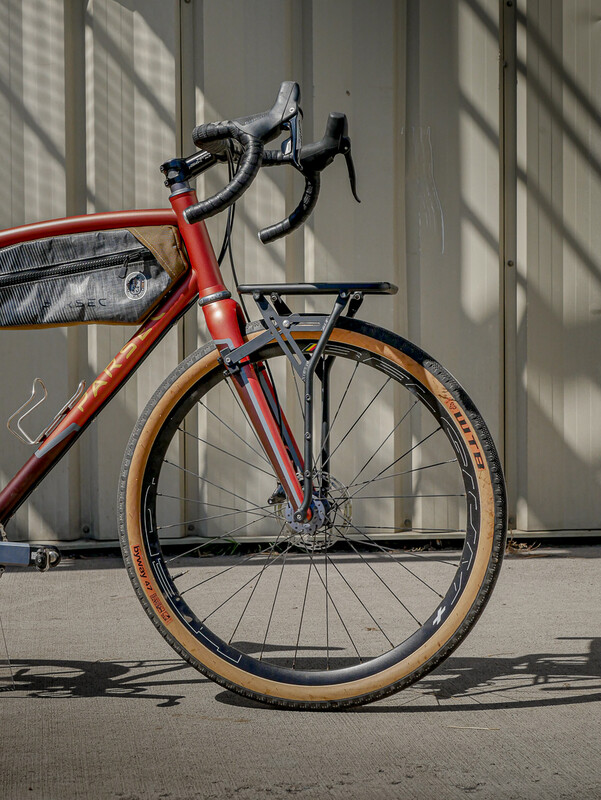

Position: Can be mounted front or rear.

Material: Light, stiff and strong 6061 aluminium.

Tube diameter: Durable 13 mm main tubes.

Top deck dimensions: 161 mm x 266 mm, with slots for easy strapping of gear and holes for mounting a light.

Mounting: Ready for traditional frame or fork eyelet mounting. With separately sold Fit Kits the rack fits a thru-axle or quick release (QR).

Load capacity and weight:
Load capacity: 11.34 kg

Weight (Short): 623 g (including 6″ extensions and mounting hardware)

Weight (Tall): 652 g (including 6″ extensions and mounting hardware)
