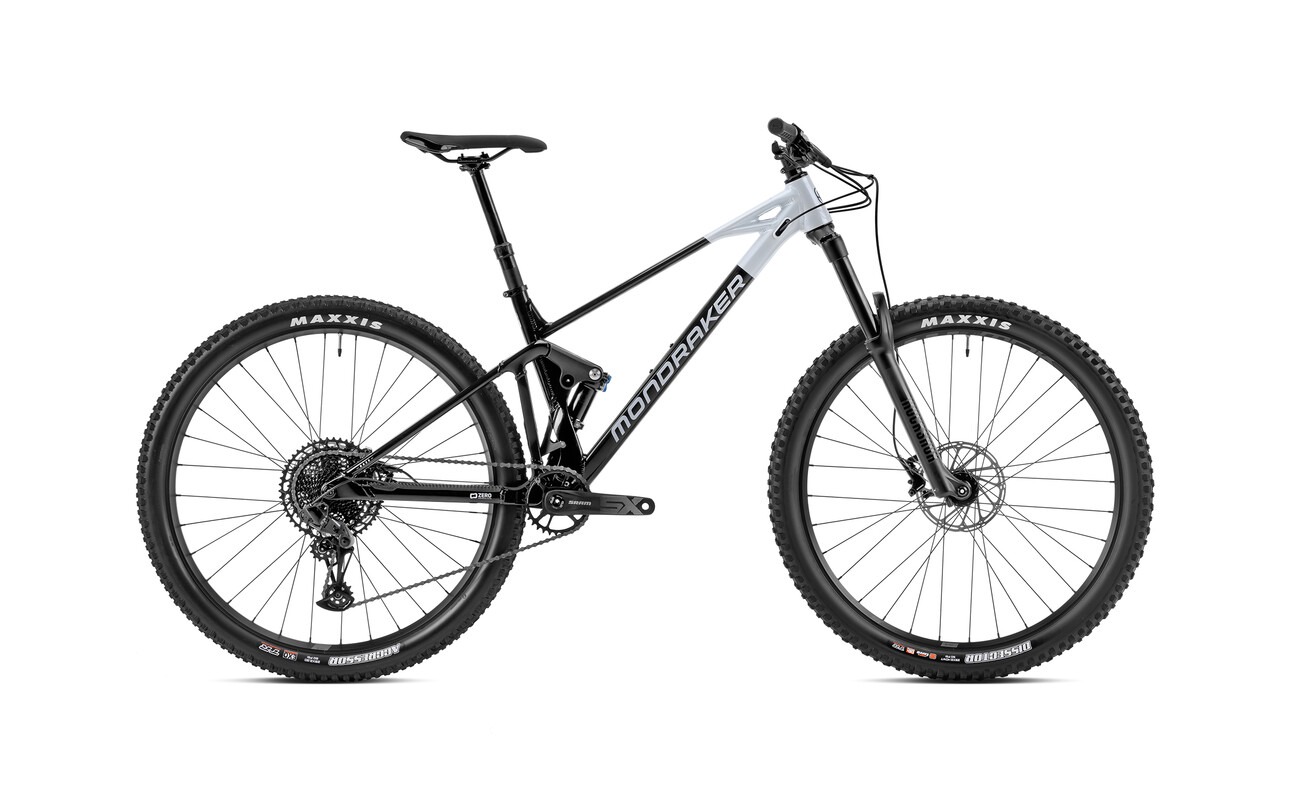

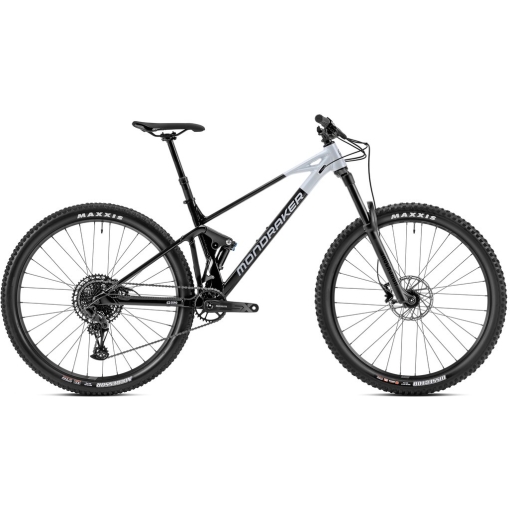

Mondraker Raze

Razen geometria on kehitetty Mondrakerin legendaarisen Foxyn pohjalta. Se on luonteeltaan kuin kevennetty mini-Foxy: nopea ja agressiivinen, mutta äärimmäisen polkutehokas teknisessä maastossa ja vaikeissa nousuissa. Se on valintasi, jos etsit trail-pyörää vaativaan ja monipuoliseen käyttöön. Raze on tasapainoinen pyörä, jolla hoidat kaiken endurokisoista xc-lenkkeihin ja bike parkiin.

Runko : Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

Takaiskari : Fox Float DPS LV EVOL Performance, 205×57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings : Light compression, light rebound, air volume spacer 0.6

Keula : RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Ohjainlaakeri : Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41×30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Ohjainkannatin : Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Ohjaustanko : Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Gripit : Onoff Twin, 1lock-on, 135mm

Satulatolppa / hissitolppa : Onoff Pija dropper internal, diameter 31.6mm, S size: 405×95-125mm, M size 458×120-150mm, L size: 498×140-170mm, XL size: 498×140-170mm

Satula : MDK series PU 2023

Jarrut : Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Vannekehät : MDK-EP1 29, 30mm internal width, tubeless ready, 32 spokes

Etunapa : Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

Eturengas : Maxxis Dissector 29×2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Takarengas : Maxxis Aggressor 29×2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Kammet : Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm

Eturatas : 32T, steel, X-Sync 2

Keskiö : Sram DUB BSA, sealed bearings, 73mm

Ketju : Sram SX Eagle, 12s, Powerlock

Takavaihtaja : Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

Vaihtajavipu : Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Rataspakka : Sram PG-1210, 11-50T, 12s

Vaihtajankorvake : Sram UDH
