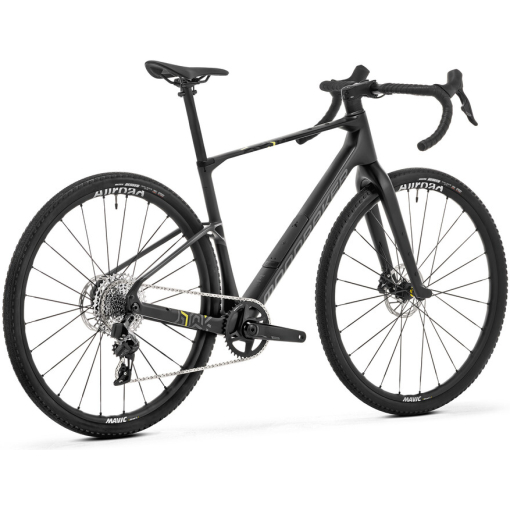

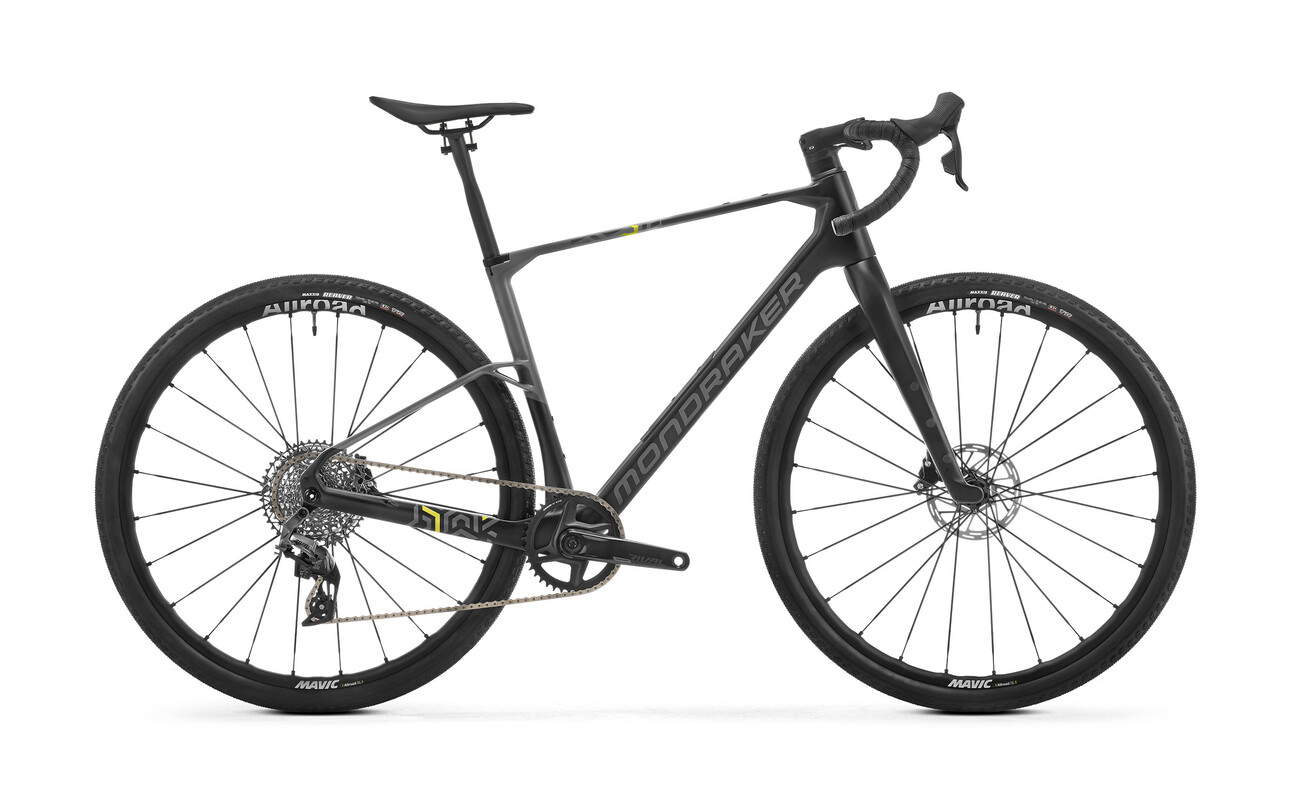

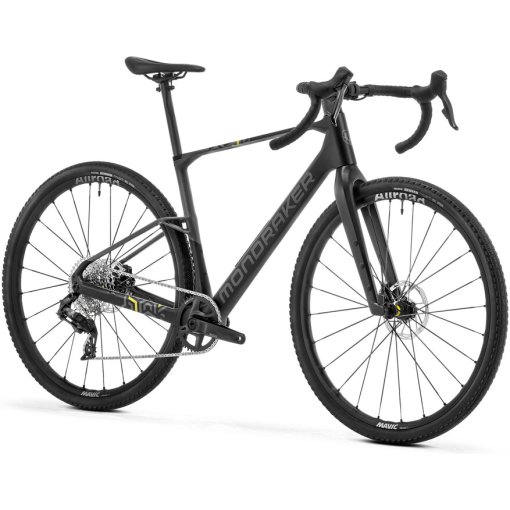

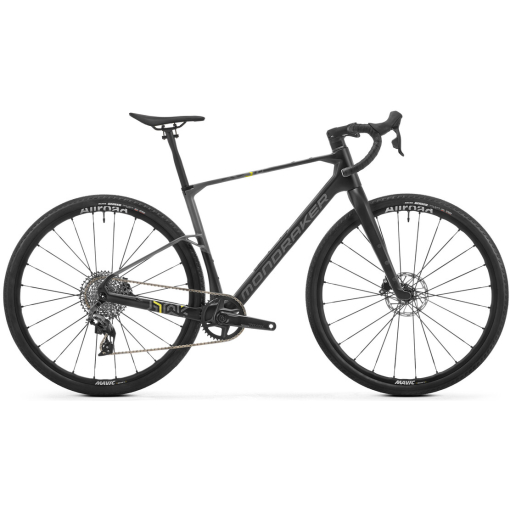

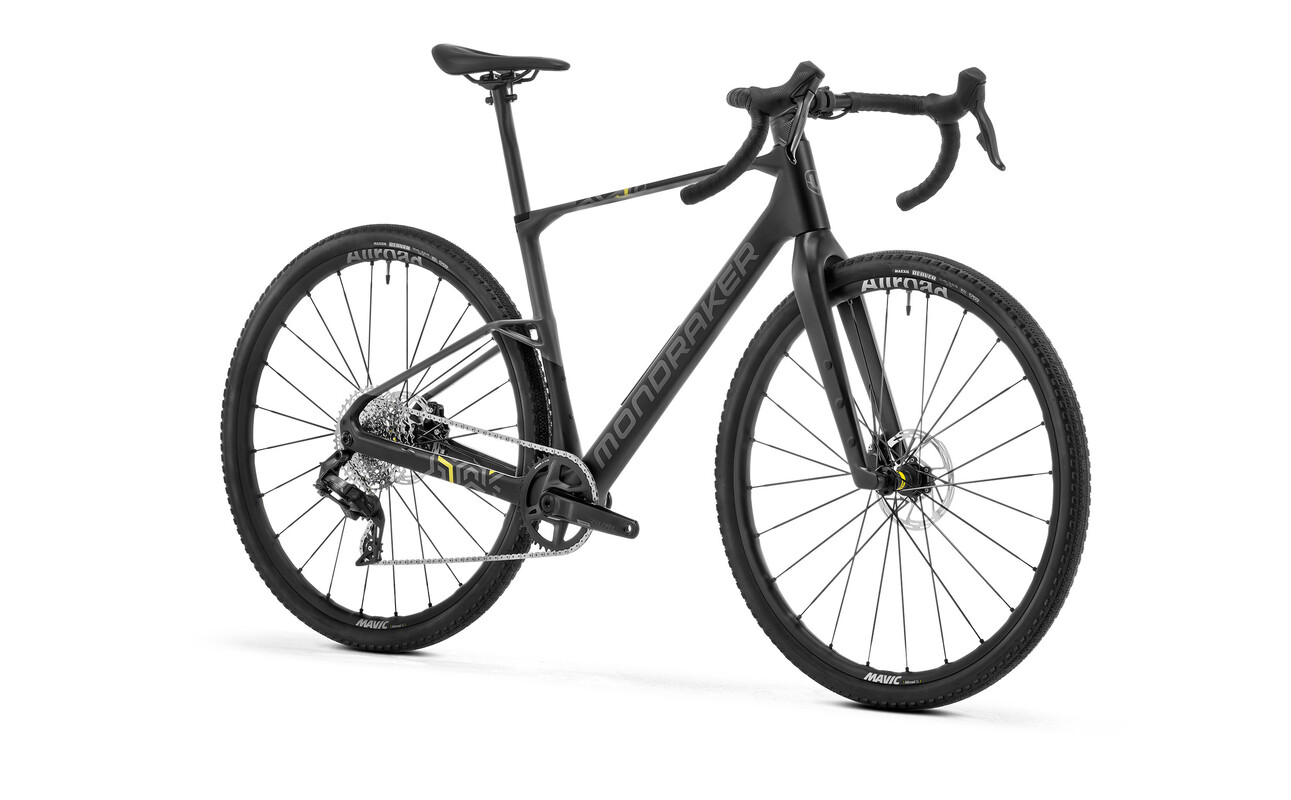

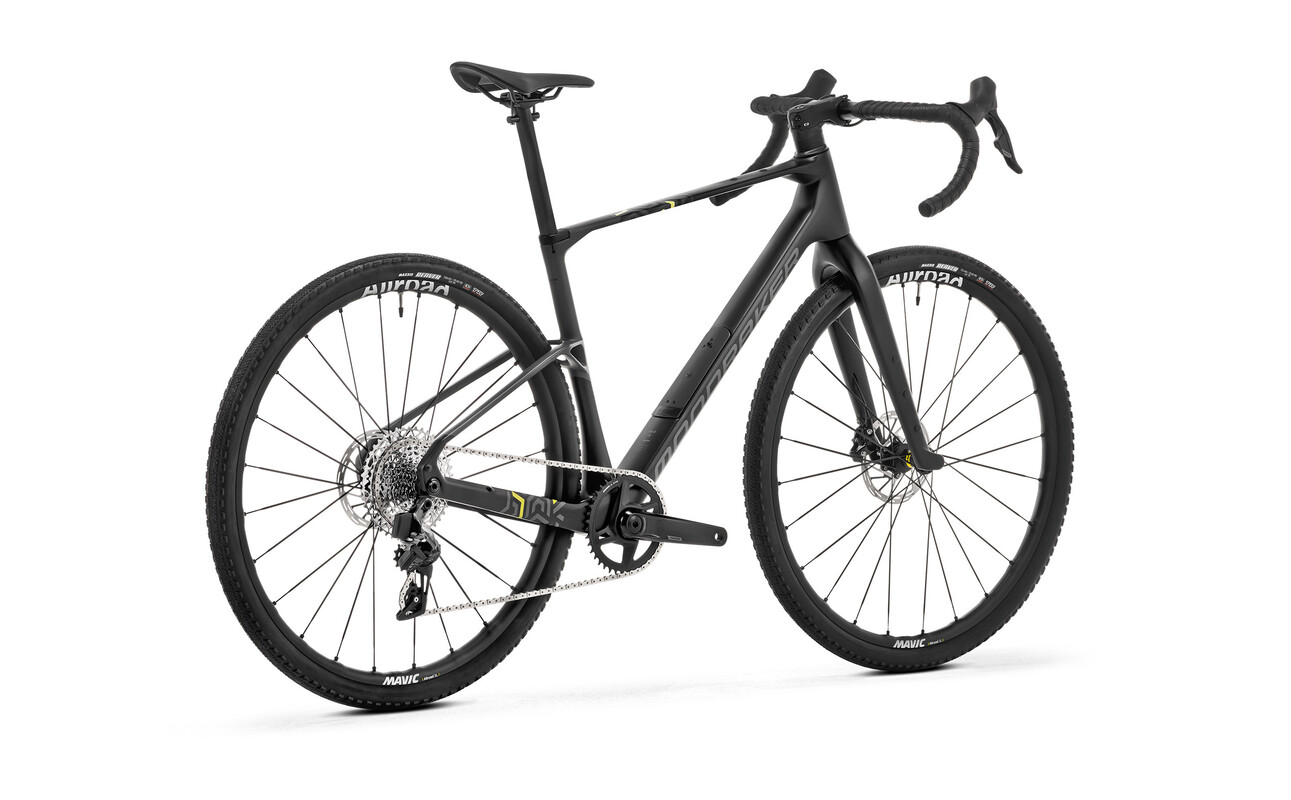

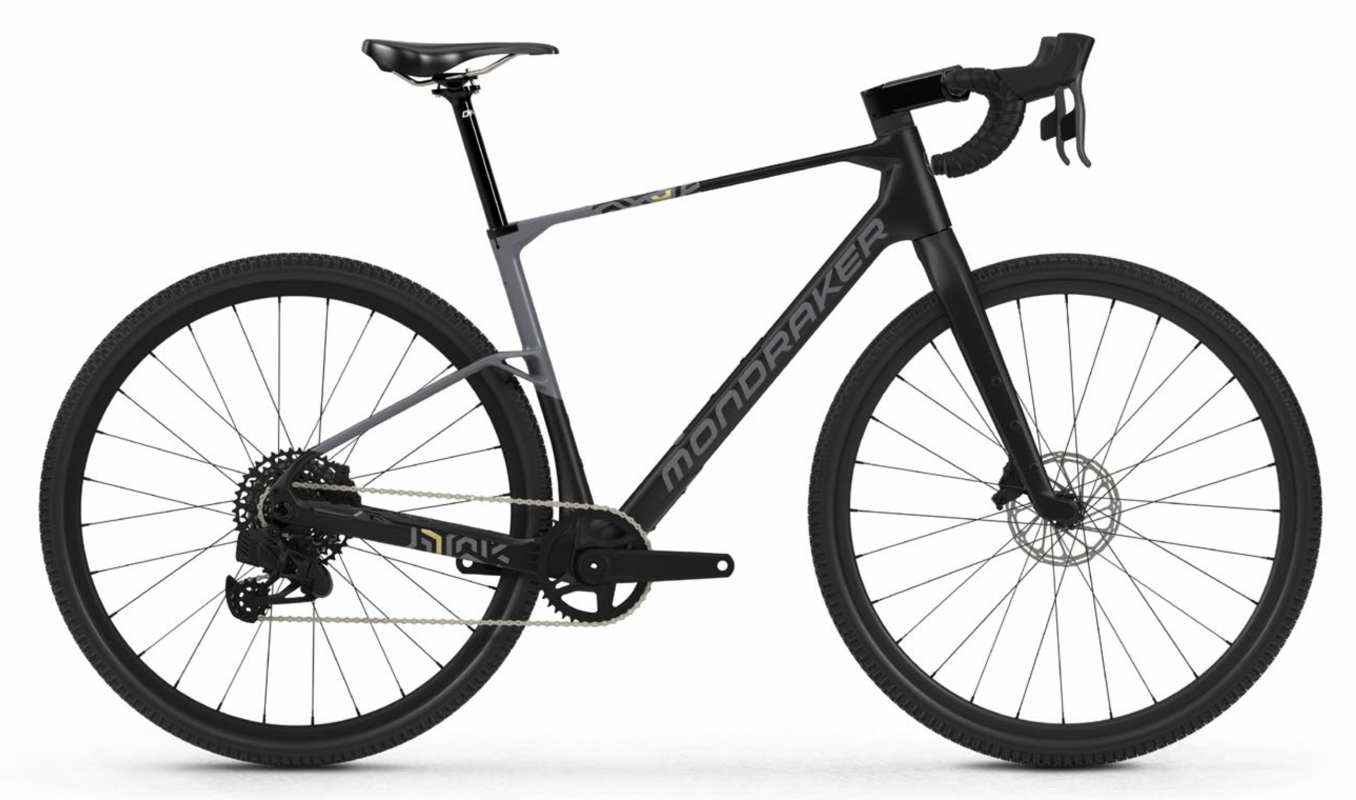

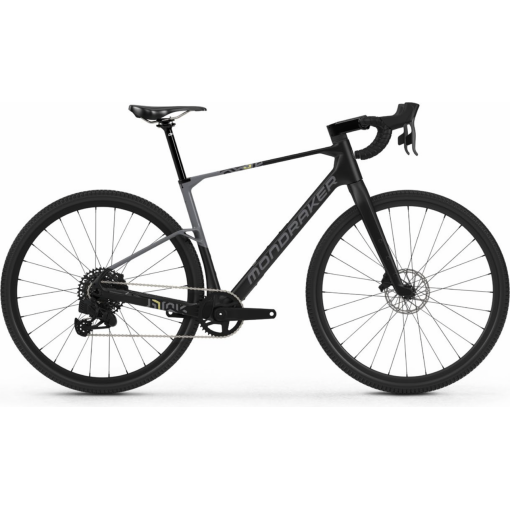

Mondraker Arid Carbon R

ARID CARBON R: KEEPING THINGS CLEAN WITH SRAM AXS

FRAME – Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, IX drivetrain design, Flatmount brake compatible

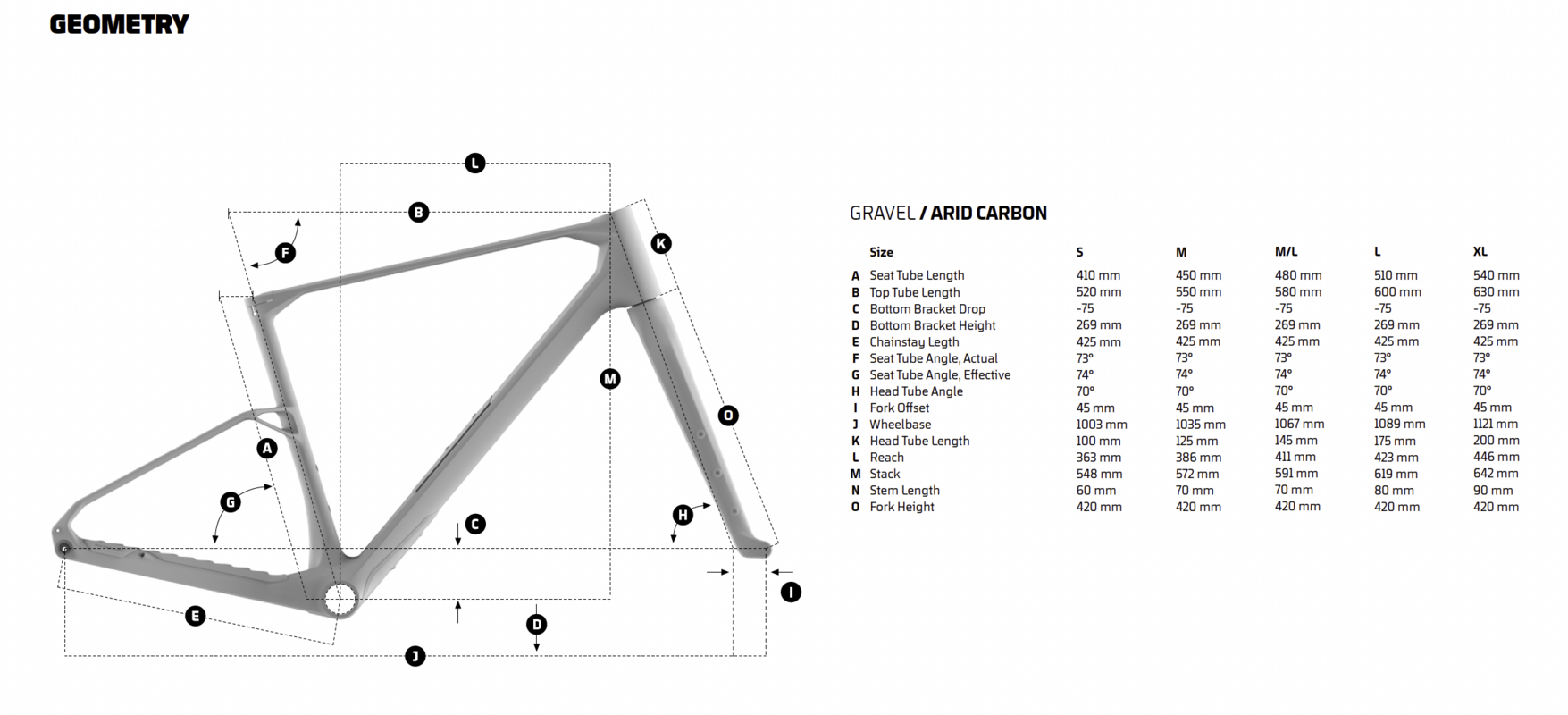

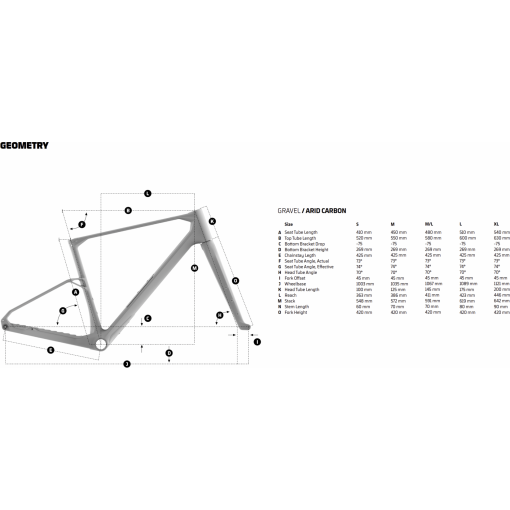

SIZES – S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm

FORK – Steath Air Carbon tapered steerer tube, HHG, fllat mount integrated fork

HEADSET – Onoff IS52/IS52, 1-1/8″, 1.5″ head tube, sealed bearings, Internal cable routing.

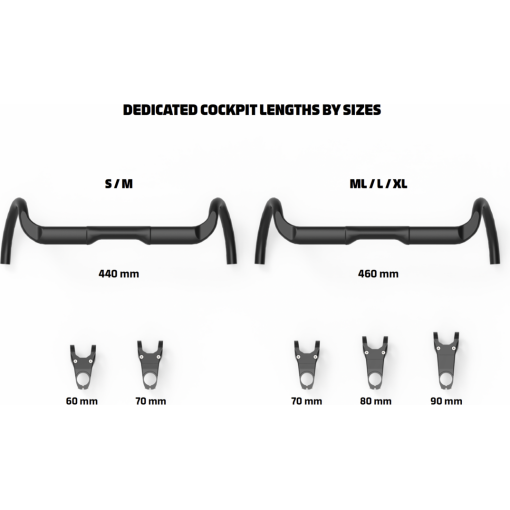

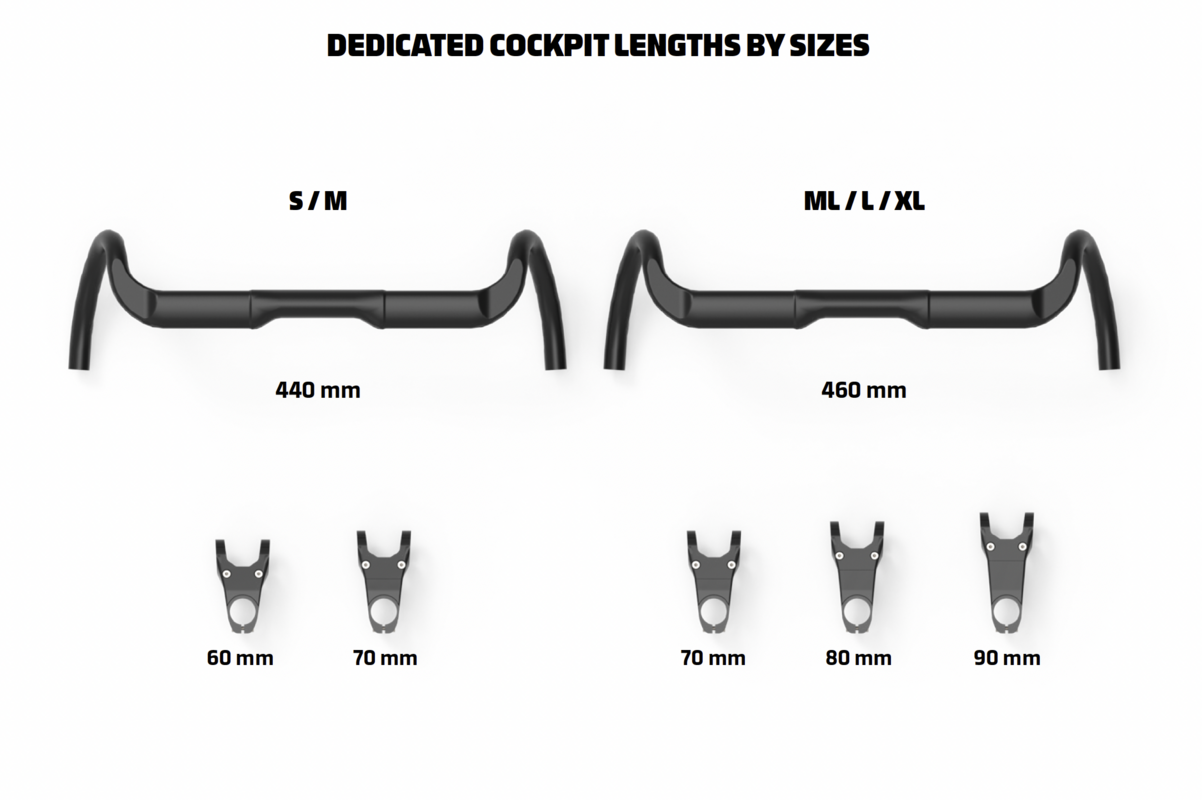

STEM – Onoff S3 6061 T6 Alloy, 31.8mm barbore, rise: -7°, length: length: 5 size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm

HANDLEBAR – OnOff S3 GR 16° bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm

GRIPS – OnOff HEX Bartape

SEATPOST – Onoff 59 Carbon O-R, diameter 27.2mm, length 400mm

SADDLE – FIZIK Terra Argo X5 140mm

FRONT BRAKE – Sram Rival Etap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

REAR BRAKE – Sram Rival Etap AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad

BRAKE LEVER – Sram Rival, contact point adjustment, tooled reach adjust, plastic levers

RIMS – Mavic Allroad SL, UST, 25mm internal width, hookless, infinity hubs, 24 spokes

SPOKES – Mavic Steel double butted flat spokes

FRONT HUB – Mavic, 12x100mm, IS 6 bolts

REAR HUB – Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, XDR Freehub

FRONT TIRE – Maxxis Reaver 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

REAR TIRE – Maxxis Reaver 700×45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

CRANKSET – Sram Rival 1 DUB GLS Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5

RINGS – Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide

BOTTOM BRACKET – Sram DUB T47 BSA, sealed bearings, 85,5mm

CHAIN – Sram Rival, 12s, Powerlock

REAR DERAILLEUR – Sram Rival XPLR Etap AXS, 12s

SHIFT LEVERS – Sram Rival Etap AXS 12s,

CASSETTE – Sram XG-1251 10-44T, 12s

DERAILLEUR HANGER – Sram UDH

WEIGHT – 8.9 kg*
*Valmistajan ennakkoon ilmoittama paino, voi muuttua suuntaan tai toiseen*

Painorajoitus – Tämän pyörän enimmäispainorajoitus (pyörän, ajajan ja kuorman yhteispaino) on 120 kg.
