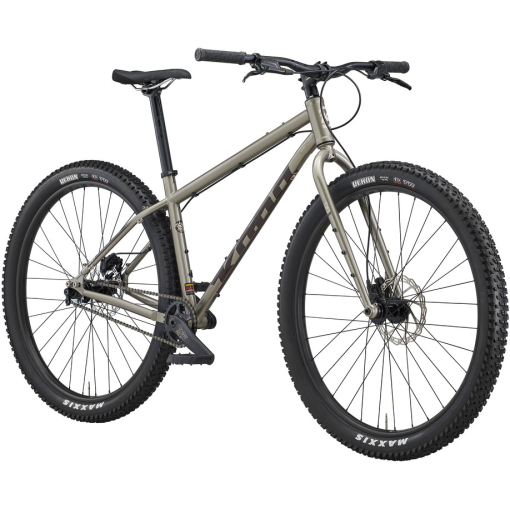

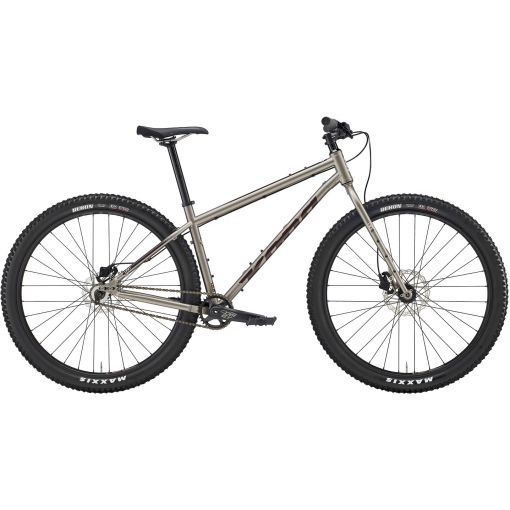

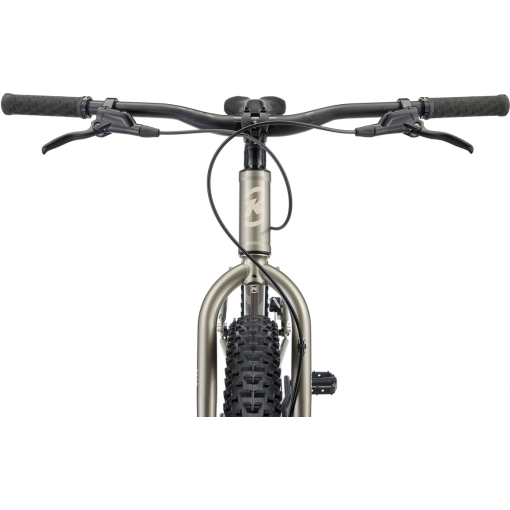

Kona Unit 2023

The Unit does not mess around. Its single-speed design and Cromoly frame make its simplicity shine and keep the moving parts long-lasting for those big excursions. Gear mounts on the fork legs and several options for mounting water bottles mean you won’t go without any of the necessary gear no matter where you’re traveling.

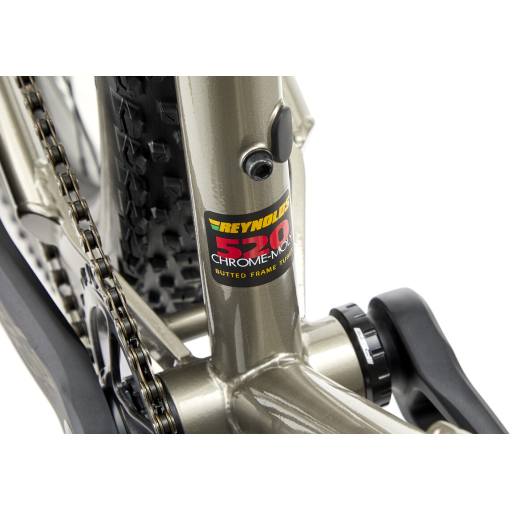

FRAME MATERIAL Reynolds 520 Butted Cromoly
SIZES S, M, L, XL
REAR SHOCK n/a

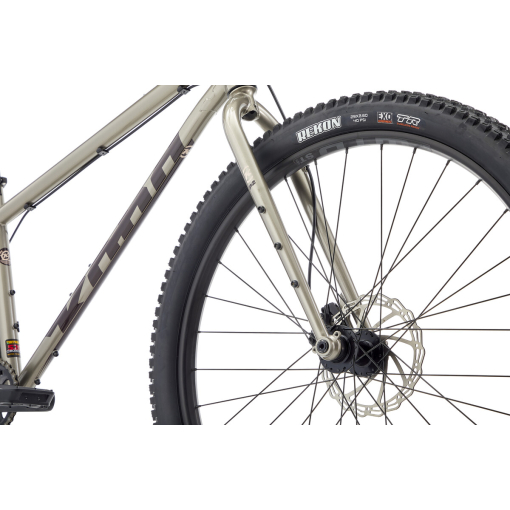

FORK Kona Plus Fork 110mm spacing
CRANKARMS FSA Comet Modular
CHAINRINGS 32t
B/B FSA MegaExo 73mm
PEDALS Kona JS2
CHAIN KMC Z1 Narrow
CASSETTE KT 18t
CHAINGUIDE n/a
F/D n/a
R/D n/a
SHIFTERS n/a

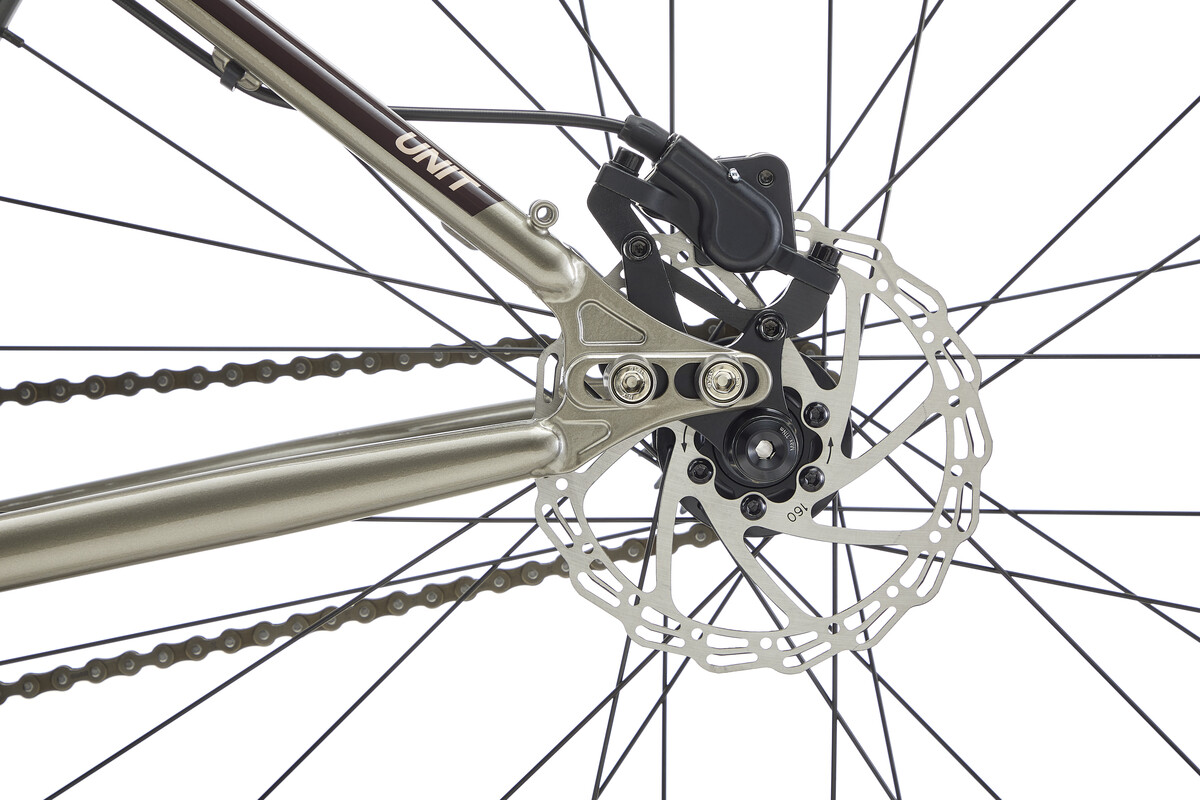

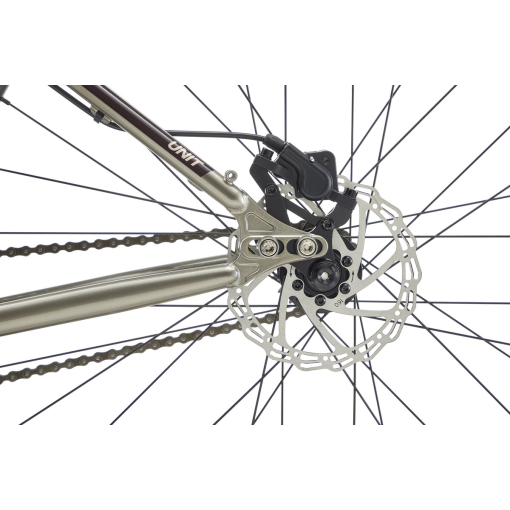

BRAKE CALIPERS Alhonga HT472 Hydraulic
FRONT BRAKE ROTOR Alhonga 180mm
REAR BRAKE ROTOR Alhonga 160mm
BRAKE LEVERS Alhonga HT472 Hydraulic
HEADSET TH ZST No.10
HANDLEBAR Kona XC/BC Riser
STEM Kona XC
SEATPOST Kona Thumb w/Offset 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Key Grip
SADDLE WTB Volt
FRONT HUB Formula 110x15mm
REAR HUB Formula 148x12mm
SPOKES Stainless Black 14g
RIMS WTB ST i30 TCS 2.0
FRONT TIRE Maxxis Rekon TR 29×2.6″ or WTB Ranger TCS 29×2.6″
REAR TIRE Maxxis Rekon TR 29×2.6″ or WTB Ranger TCS 29×2.6″
PAINT COLOR Gloss Metallic Grey w/ Chocolate & Tan Decals

* Valmistaja saattaa vaihtaa pyörän komponentteja kesken tuotannon. Yllä oleva listaus / kuva ei siis välttämättä täysin vastaa tuotetta.
